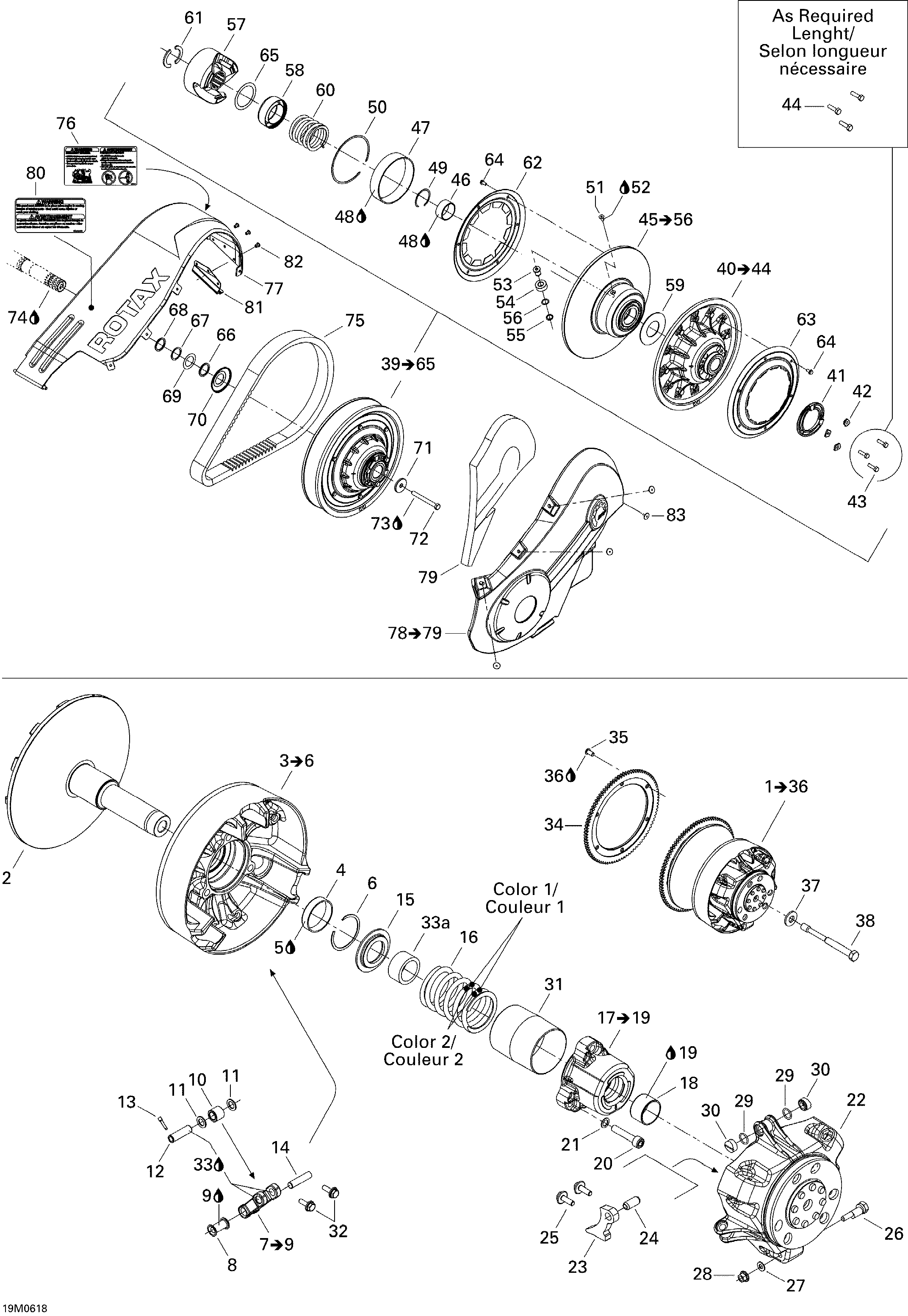

05- Pulley System для BRP Ski-Doo Mach Z 1000 SDI Adrenaline & X - 2006
-
№АртикулНазвание
-
2417222711 Fixed FlangeFixed Flange
-
3417222646 Sliding Flange Ass'y. Includes 3 to 6Sliding Flange Ass'y. Includes 3 to 6
-
4417222758 BushingBushing
-
5413703100 Loctite 609, 10 mlLoctite 609, 10 ml
-
6293370037 CirclipCirclip
-
7417222812 Lever Ass'y. Includes 7 to 9Lever Ass'y. Includes 7 to 9
-
8417222633 BushingBushing
-
9413703100 Loctite 609, 10 mlLoctite 609, 10 ml
-
10417222762 RollerRoller
-
11417004302 Stopper WasherStopper Washer
-
12417222595 Threaded Pin, M6Threaded Pin, M6
-
13417222813 Pin ScrewPin Screw
-
14417009202 Lever AxleLever Axle
-
15417222312 Spring SeatSpring Seat
-
16415074800 SpringSpring
-
17417222759 Spring Cover Ass'y. Includes 17 to 19Spring Cover Ass'y. Includes 17 to 19
-
18417009204 BushingBushing
-
19413703100 Loctite 609, 10 mlLoctite 609, 10 ml
-
20205084044 Socket Head Screw M8 X 40Socket Head Screw M8 X 40
-
21250200009 Lock Washer 8 mmLock Washer 8 mm
-
22417222634 Governor CupGovernor Cup
-
23417222815 Ramp 434Ramp 434
-
24250400009 Rolled Pin 10 X 22Rolled Pin 10 X 22
-
25250000059 Hex Flanged Scew M6 X 18Hex Flanged Scew M6 X 18
-
26417222674 Calibration ScrewCalibration Screw
-
27417005600 WasherWasher
-
28233061414 Hex Flanged Nut M6Hex Flanged Nut M6
-
29732401030 O-RingO-Ring
-
30417222362 Slider ShoeSlider Shoe
-
31417009205 GuardGuard
-
32250000182 Serrated Hex Flanged Screw M6 X 16Serrated Hex Flanged Screw M6 X 16
-
33413703100 Loctite 609, 10 mlLoctite 609, 10 ml
-
33a417222826 BushingBushing
-
34417222830 Ring GearRing Gear
-
35250000243 Torx Screw M8 X 16, Scotch GripTorx Screw M8 X 16, Scotch Grip
-
36293800005 Loctite 271, 10 mlLoctite 271, 10 ml
-
37250200006 Conical Spring Washer 14 mmConical Spring Washer 14 mm
-
38417300296 Drive Pulley BoltDrive Pulley Bolt
-
40417126807 Fixed Flange Ass'y. Includes 40 to 44Fixed Flange Ass'y. Includes 40 to 44
-
41415005800 Adjustment RingAdjustment Ring
-
42415005900 Adjustment ShimAdjustment Shim
-
43207162544 Hex Screw M6 X 25Hex Screw M6 X 25
-
44207162244 Hex Screw M6 X 22Hex Screw M6 X 22
-
45417127014 Sliding Flange Ass'ySliding Flange Ass'y
-
46417126901 BushingBushing
-
47417126902 BushingBushing
-
48413408300 Loctite, Black Max, 3 mlLoctite, Black Max, 3 ml
-
49371911200 CirclipCirclip
-
50417126878 CirclipCirclip
-
51235382046 Torx Screw M8 X 20, Scotch GripTorx Screw M8 X 20, Scotch Grip
-
52293800005 Loctite 271, 10 mlLoctite 271, 10 ml
-
53417127015 StudStud
-
54417126892 RollerRoller
-
55417126823 V-circlipV-circlip
-
56417126797 WasherWasher
-
57417126933 Cam Ass'yCam Ass'y
-
58417126381 GuardGuard
-
59504099600 Stopper WasherStopper Washer
-
60414978300 Release Spring, PurpleRelease Spring, Purple
-
61417126734 Half KeyHalf Key
-
62417126698 CoverCover
-
63504151831 Aerodynamic CoverAerodynamic Cover
-
64210251180 Hex. Forming Screw M5 x 11Hex. Forming Screw M5 x 11
-
65417126322 Swivel AbutmentSwivel Abutment
-
66417300265 SpacerSpacer
-
67417300265 SpacerSpacer
-
68417300252 SpacerSpacer
-
69504112000 ShimShim
-
70417300238 ProtectorProtector
-
71517302322 Strength WasherStrength Washer
-
72207087544 Hex Screw M8 X 75Hex Screw M8 X 75
-
73293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
74293800070 Loctite 767, Antiseize Lubricant, 8 OzLoctite 767, Antiseize Lubricant, 8 Oz
-
75417300189 Drive BeltDrive Belt
-
76516002674 Emergency Starting LabelEmergency Starting Label
-
77417300256 Belt GuardBelt Guard
-
78417300301 Side Protector Ass'y. Includes 78 to 79Side Protector Ass'y. Includes 78 to 79
-
79417300246 FoamFoam
-
80516002670 Security Label, Belt GuardSecurity Label, Belt Guard
-
81417300216 Belt Guard BracketBelt Guard Bracket
-
82390909200 Avex RivetAvex Rivet
-
83293150103 Pop Rivet 3/16''Pop Rivet 3/16''
