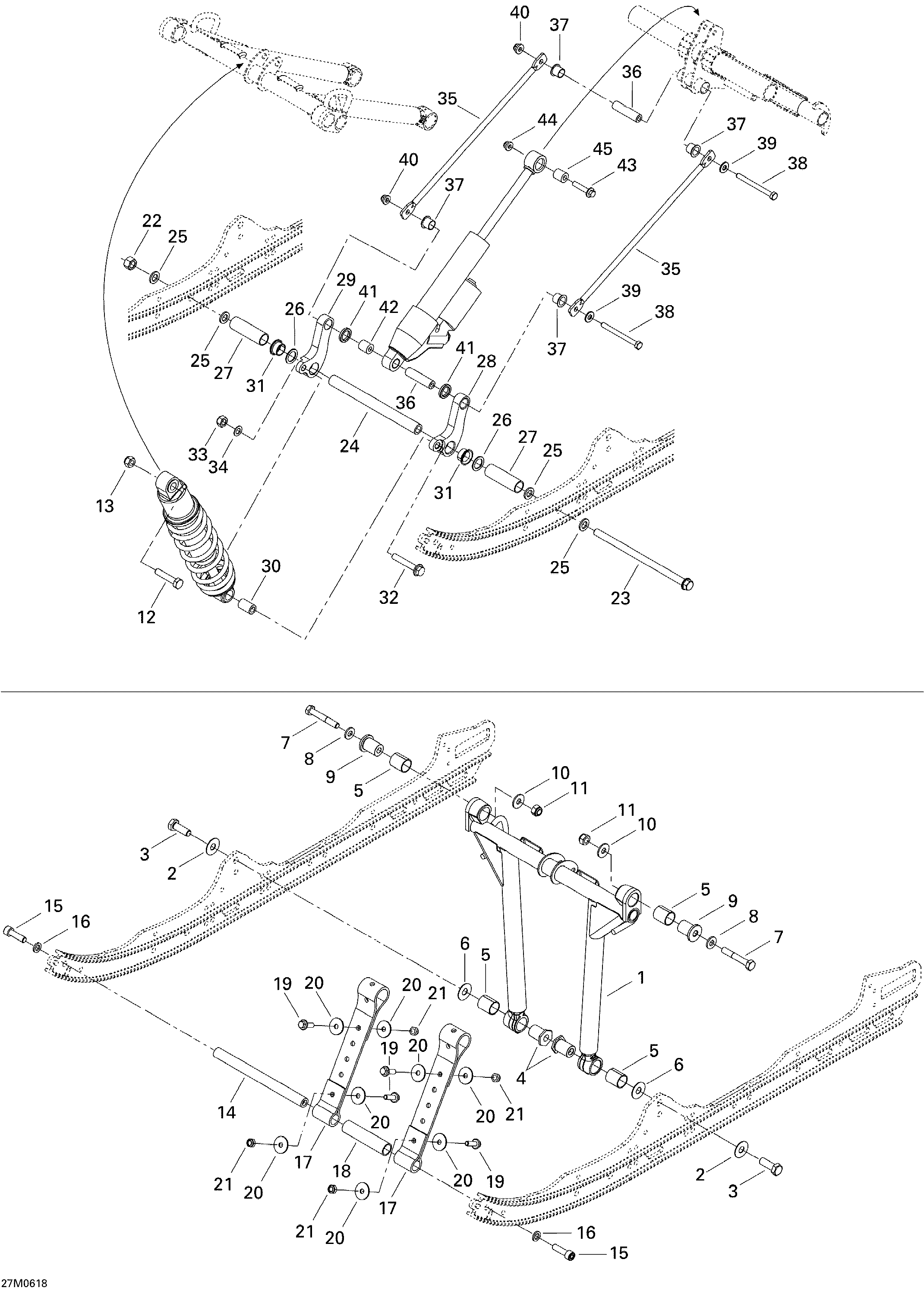

08- Front Arm для BRP Ski-Doo Mach Z 1000 SDI Adrenaline & X - 2006
-
№АртикулНазвание
-
1503191266 Front Arm, BlackFront Arm, Black
-
2503189148 WasherWasher
-
3250000225 Hex Screw M12 X 35, Scotch GripHex Screw M12 X 35, Scotch Grip
-
4503190727 Inferior AxleInferior Axle
-
5503190974 BushingBushing
-
6503190656 WasherWasher
-
7207006044 Hex Screw M10 X 60Hex Screw M10 X 60
-
8732900049 WasherWasher
-
9503190698 AxleAxle
-
10506151251 WasherWasher
-
11233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
12207005044 Hex Screw M10 X 50Hex Screw M10 X 50
-
13232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
14503189562 AxleAxle
-
15205503544 Socket Head Screw M10 X 35, Scotch GripSocket Head Screw M10 X 35, Scotch Grip
-
16503189564 WasherWasher
-
17503190782 Stopper StrapStopper Strap
-
18503189265 SpacerSpacer
-
19207682544 Hex Flanged Screw M8 X 25Hex Flanged Screw M8 X 25
-
20224081301 Flat WasherFlat Washer
-
21233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
22232021416 Hex Nut M12Hex Nut M12
-
23250000229 Hex Screw M12 X 252Hex Screw M12 X 252
-
24503191044 Center ShaftCenter Shaft
-
25503189148 WasherWasher
-
26503190697 WasherWasher
-
27503190600 SpacerSpacer
-
28503190965 LH Rocker ArmLH Rocker Arm
-
29503190966 RH Rocker ArmRH Rocker Arm
-
30503190604 Central Shock AxleCentral Shock Axle
-
31503190605 Central Rocker Axle CushionCentral Rocker Axle Cushion
-
32207606044 Hex Flanged Screw M10 X 60Hex Flanged Screw M10 X 60
-
33232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
34503175800 WasherWasher
-
35503190606 Throttle RodThrottle Rod
-
36503190643 Bar AxleBar Axle
-
37506150200 Bushing SwivelBushing Swivel
-
38207088544 Hex Screw M8 X 85Hex Screw M8 X 85
-
39224081201 Flat WasherFlat Washer
-
40233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
41503190694 Plastic SpacerPlastic Spacer
-
42503190706 BushingBushing
-
43207684044 Hex Flanged Screw M8 X 40Hex Flanged Screw M8 X 40
-
44233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
45414936000 CushionCushion
