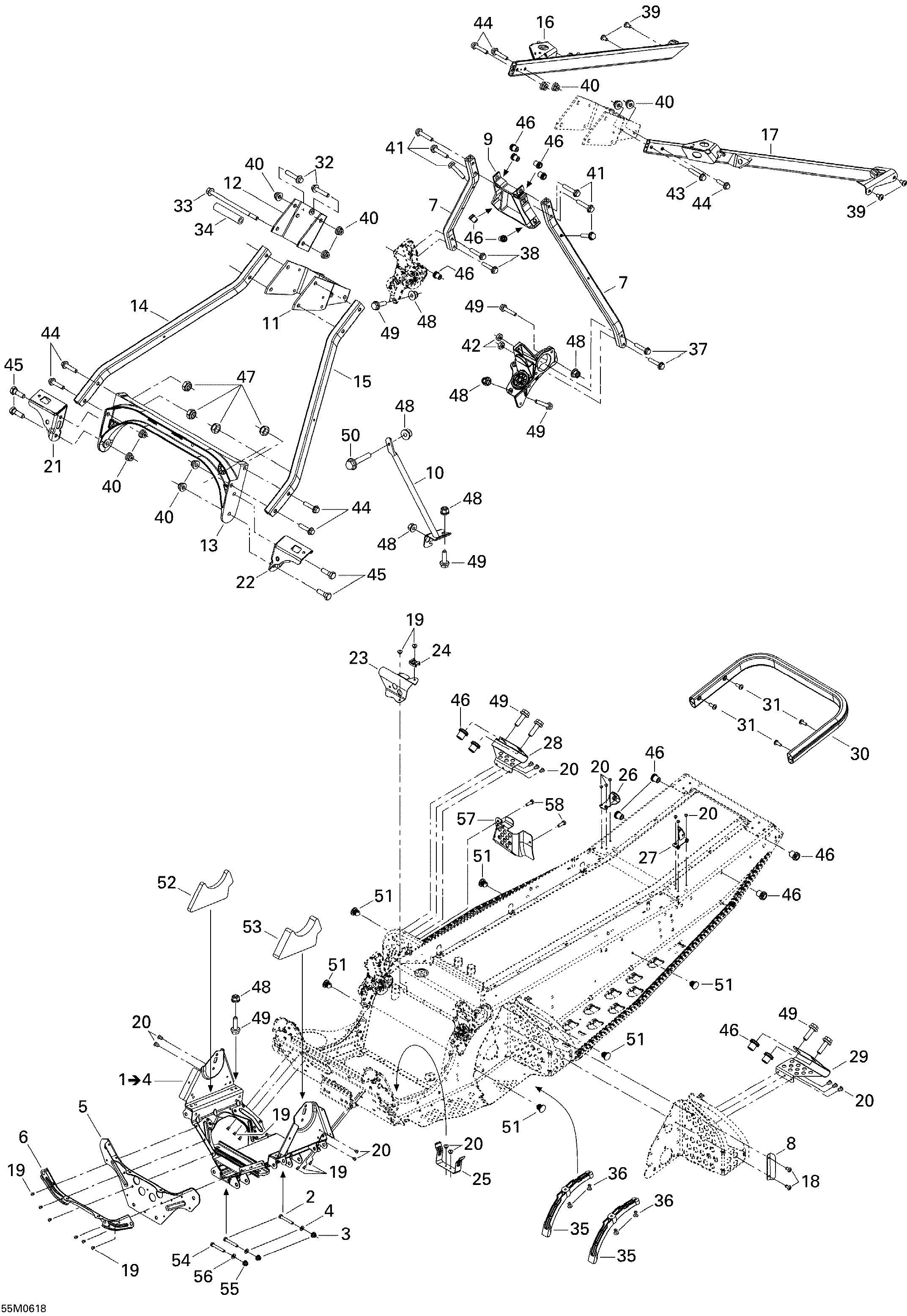

09- Frame and Components для BRP Ski-Doo Mach Z 1000 SDI Adrenaline & X - 2006
-
№АртикулНазвание
-
1518323541 Front Member Ass'y. Includes 1 to 4Front Member Ass'y. Includes 1 to 4
-
2207085544 Hex Screw M8 X 55Hex Screw M8 X 55
-
3233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
4234081410 Flat Washer 8 mmFlat Washer 8 mm
-
5518324726 Front PlateFront Plate
-
6518324727 Front Plate ReinforcementFront Plate Reinforcement
-
7518324228 Handle SupportHandle Support
-
8518317504 Cable ProtectorCable Protector
-
9518323811 Handle Support ReinforcementHandle Support Reinforcement
-
10518324080 Brace, BlackBrace, Black
-
11518323676 Attachment BracketAttachment Bracket
-
12518324046 Steering Column SupportSteering Column Support
-
13518324265 Upper Cross MemberUpper Cross Member
-
14518324285 RH Front BraceRH Front Brace
-
15518324286 LH Front BraceLH Front Brace
-
16518323352 RH MemberRH Member
-
17518323354 LH MemberLH Member
-
18390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
19390909100 Avex RivetAvex Rivet
-
20390909200 Avex RivetAvex Rivet
-
21518324148 RH Shock BracketRH Shock Bracket
-
22518324150 LH Shock BracketLH Shock Bracket
-
23518323584 Hose SupportHose Support
-
24293750031 Tie Rap MountTie Rap Mount
-
25518202100 Belt Guard BracketBelt Guard Bracket
-
26518323769 RH Bracket, BlackRH Bracket, Black
-
27518323770 LH Bracket, BlackLH Bracket, Black
-
28518323948 RH Toe HoldRH Toe Hold
-
29518324392 LH Toe HoldLH Toe Hold
-
30518324297 Rear BumperRear Bumper
-
31236282084 Hex Screw M8 X 20Hex Screw M8 X 20
-
32207684044 Hex Flanged Screw M8 X 40Hex Flanged Screw M8 X 40
-
33230684044 Hex. Flanged Screw M8 X 140Hex. Flanged Screw M8 X 140
-
34518324048 SpacerSpacer
-
35518324287 Front Radiator ProtectorFront Radiator Protector
-
36390906800 Pop Rivet 3/16''Pop Rivet 3/16''
-
37250000253 Flanged Hex. Screw M6 X 30Flanged Hex. Screw M6 X 30
-
38207563044 Hex. Flanged Screw M6 X 30, Scotch GripHex. Flanged Screw M6 X 30, Scotch Grip
-
39250000154 Torx Screw M8 X 13Torx Screw M8 X 13
-
40233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
41250000253 Flanged Hex. Screw M6 X 30Flanged Hex. Screw M6 X 30
-
42232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
43207685044 Hex Flanged Screw M8 X 50Hex Flanged Screw M8 X 50
-
44207683544 Hex Flanged Screw M8 X 35Hex Flanged Screw M8 X 35
-
45207182544 Hex Screw M8 X 25Hex Screw M8 X 25
-
46415107300 InsertInsert
-
47232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
48233261414 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
49207662044 Hex. Flanged Screw M6 x 20Hex. Flanged Screw M6 x 20
-
50207663544 Hex Flanged Screw M6 X 35Hex Flanged Screw M6 X 35
-
51518321954 Fastener PanelFastener Panel
-
52518324372 RH Front FoamRH Front Foam
-
53518323007 LH Front FoamLH Front Foam
-
54207085544 Hex Screw M8 X 55Hex Screw M8 X 55
-
55233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
56234081410 Flat Washer 8 mmFlat Washer 8 mm
-
57518324701 Footrest ExtensionFootrest Extension
-
58207661644 Hex Flanged Screw M6 X 16Hex Flanged Screw M6 X 16
