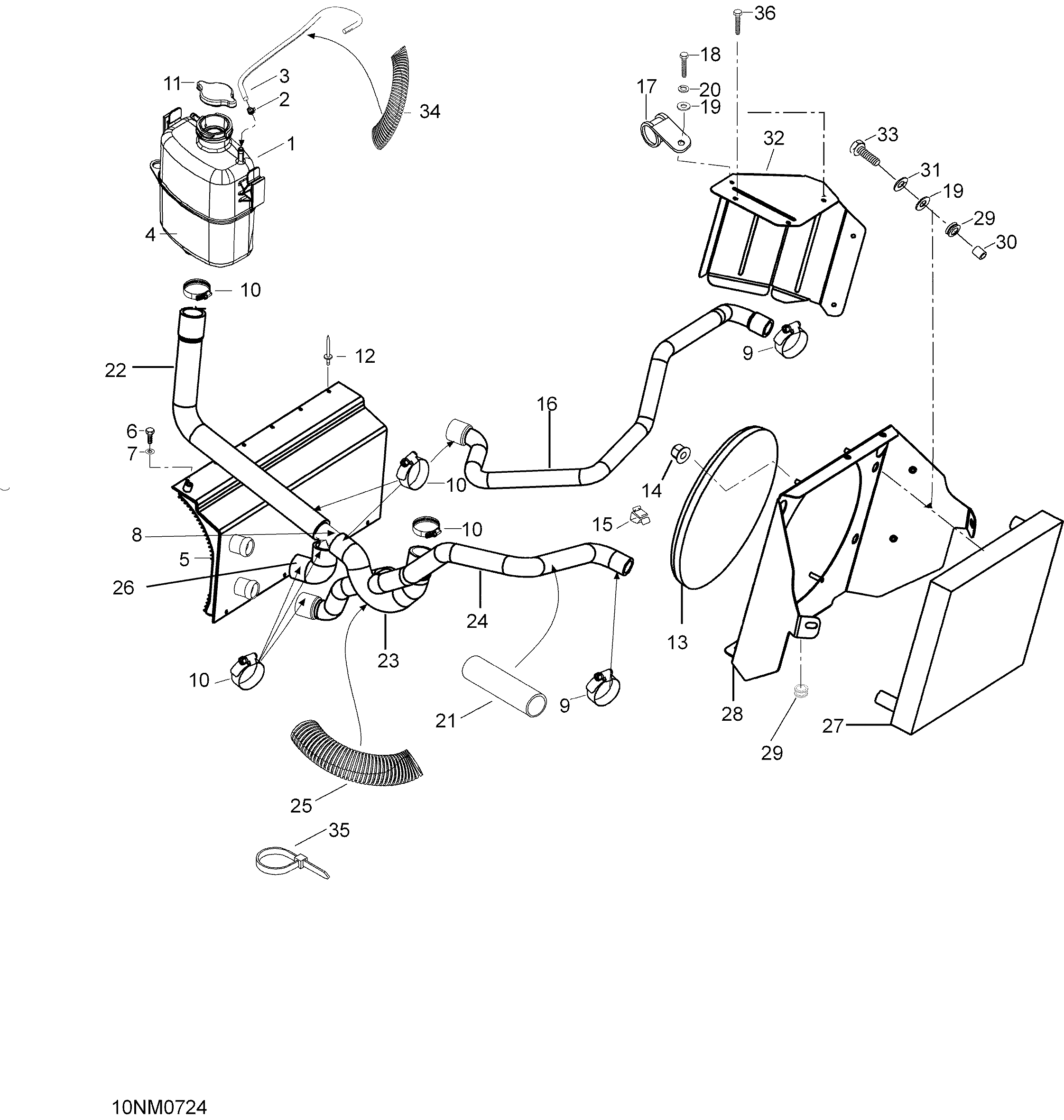

01- Cooling System для BRP Ski-Doo Expedition TUV 1300 (Europe) - 2007
-
№АртикулНазвание
-
1276000086 Coolant TankCoolant Tank
-
2605627003 ClampClamp
-
3415080200 Polyurethane HosePolyurethane Hose
-
4M44110 Reflective SheetReflective Sheet
-
5605253699 RadiatorRadiator
-
6207161044 Hex Screw M6 X 10Hex Screw M6 X 10
-
7M20041 SealSeal
-
8509000219 T-FittingT-Fitting
-
9408800400 Tridon Gear ClampTridon Gear Clamp
-
10605627002 ClampClamp
-
11509000180 Pressure CapPressure Cap
-
12M36108 RivetRivet
-
13M42091 Motor FanMotor Fan
-
14M33200 Nut M6Nut M6
-
15414227300 ClipClip
-
16605354195 Water HoseWater Hose
-
17M27039 ClampClamp
-
18207161644 Hex Screw M6 X 16Hex Screw M6 X 16
-
19M20009 Washer 6.4 Din 9021Washer 6.4 Din 9021
-
20M33200 Nut M6Nut M6
-
21M39062 TubingTubing
-
22605253689 HoseHose
-
23605353907 HoseHose
-
24605354194 HoseHose
-
25M28036 TubingTubing
-
26605253690 HoseHose
-
27605353238 Radiator 250Radiator 250
-
28605253698 SupportSupport
-
29293720053 GrommetGrommet
-
30605453745 BushingBushing
-
31234161471 Lock Washer M6, BlackLock Washer M6, Black
-
32605254458 Deflector PlateDeflector Plate
-
33210251680 Hex Forming Screw M5 X 16Hex Forming Screw M5 X 16
-
34M27127 TubingTubing
-
35414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
36207162044 Hex Cap Screw M6 X 20Hex Cap Screw M6 X 20
