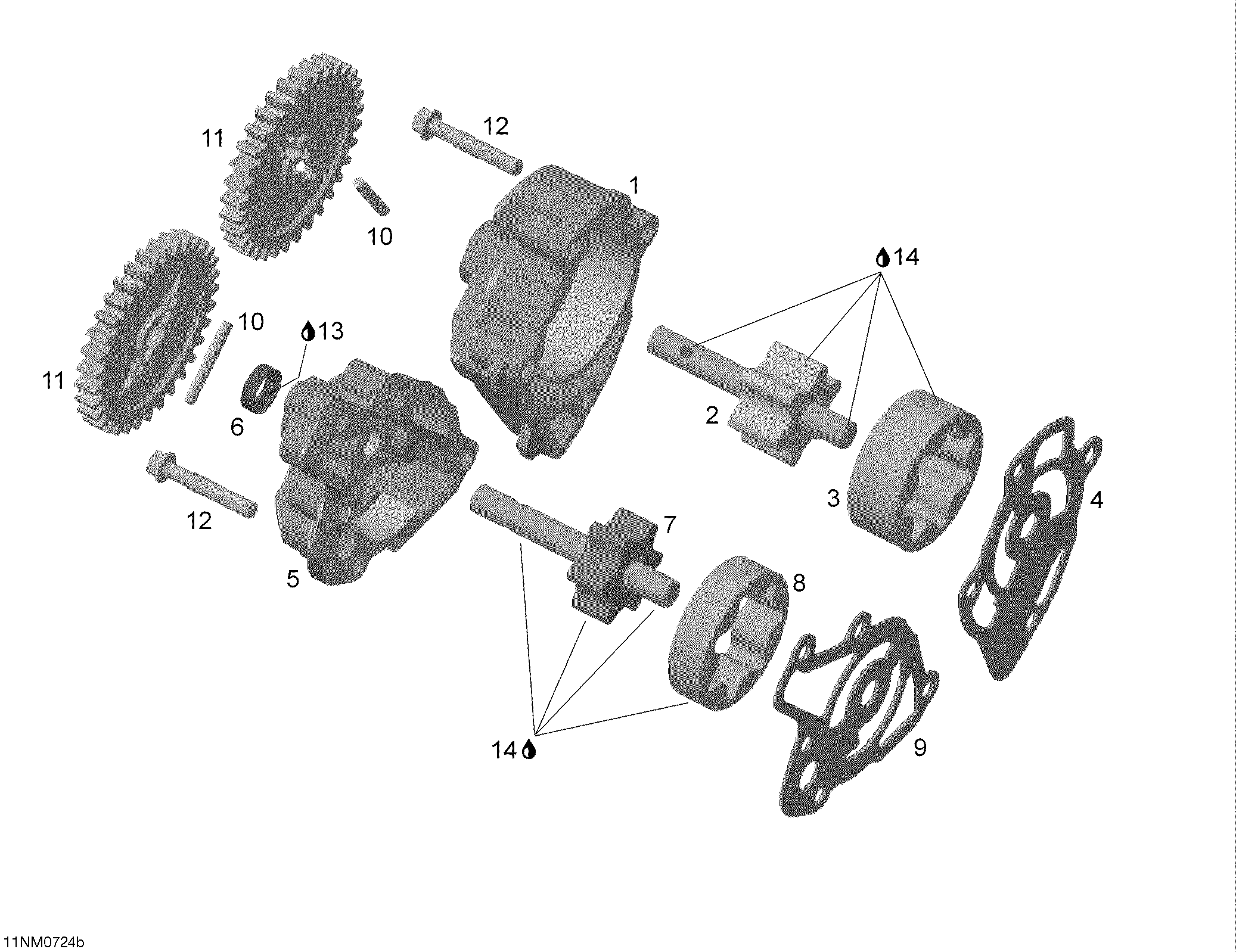

02- Oil Pump для BRP Ski-Doo Expedition TUV 1300 (Europe) - 2007
-
№АртикулНазвание
-
1420811690 Oil Pump CoverOil Pump Cover
-
2420837499 Oil Pump ShaftOil Pump Shaft
-
3420856455 Outer Rotor, 20 mmOuter Rotor, 20 mm
-
4420926325 Intermediate PlateIntermediate Plate
-
5420811680 Oil Pump CoverOil Pump Cover
-
6420931142 Oil SealOil Seal
-
7420837494 Oil Pump ShaftOil Pump Shaft
-
8420856445 Outer Rotor, 14 mmOuter Rotor, 14 mm
-
9420926320 Intermediate PlateIntermediate Plate
-
10420232430 Needle PinNeedle Pin
-
11420834470 Oil Pump Gear, 33 TeethOil Pump Gear, 33 Teeth
-
12420440272 Flanged Torx Screw M6 X 35Flanged Torx Screw M6 X 35
-
13293550030 Grease, Super LubeGrease, Super Lube
-
14293600054 Synth Oil 4T 12x1Synth Oil 4T 12x1
