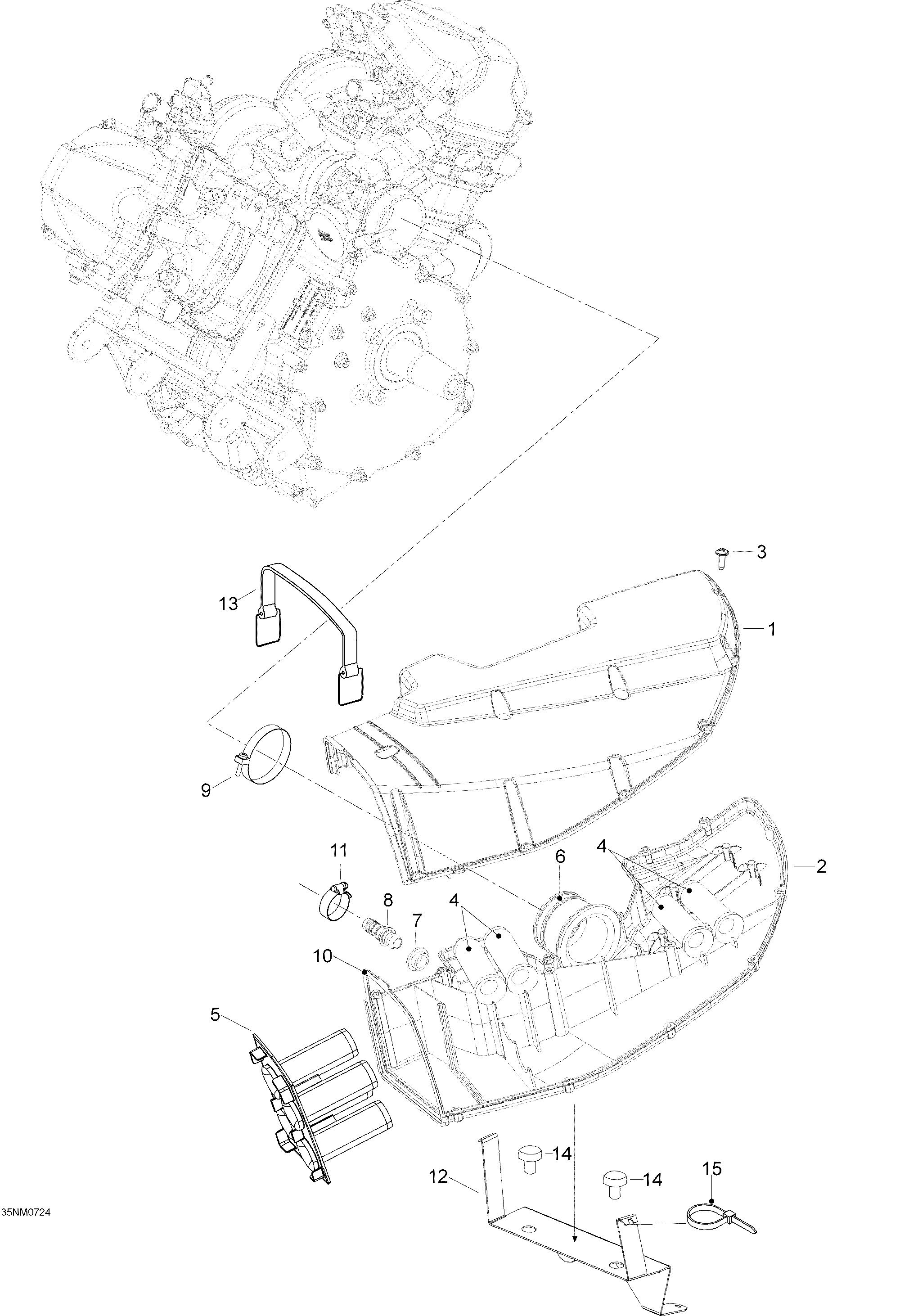

02- Air Intake System для BRP Ski-Doo Expedition TUV 1300 (Europe) - 2007
-
№АртикулНазвание
-
1605153098 Air Intake Cover BoxAir Intake Cover Box
-
2605153099 Air intake Bottom BoxAir intake Bottom Box
-
3M40905 Screw M6 X 16Screw M6 X 16
-
4M5444445 PipePipe
-
5605253649 Ventury Tube SetVentury Tube Set
-
6508000254 Intake AdaptatorIntake Adaptator
-
7570023000 Insulating RingInsulating Ring
-
8605453846 ConnectorConnector
-
9508000382 Gemi ClampGemi Clamp
-
10605353517 Air FilterAir Filter
-
11605627004 ClampClamp
-
12605353774 Intake Silencer SupportIntake Silencer Support
-
13515175955 Battery StrapBattery Strap
-
14570044700 Rubber PumperRubber Pumper
-
15414115200 Tie-Rap 180 mmTie-Rap 180 mm
