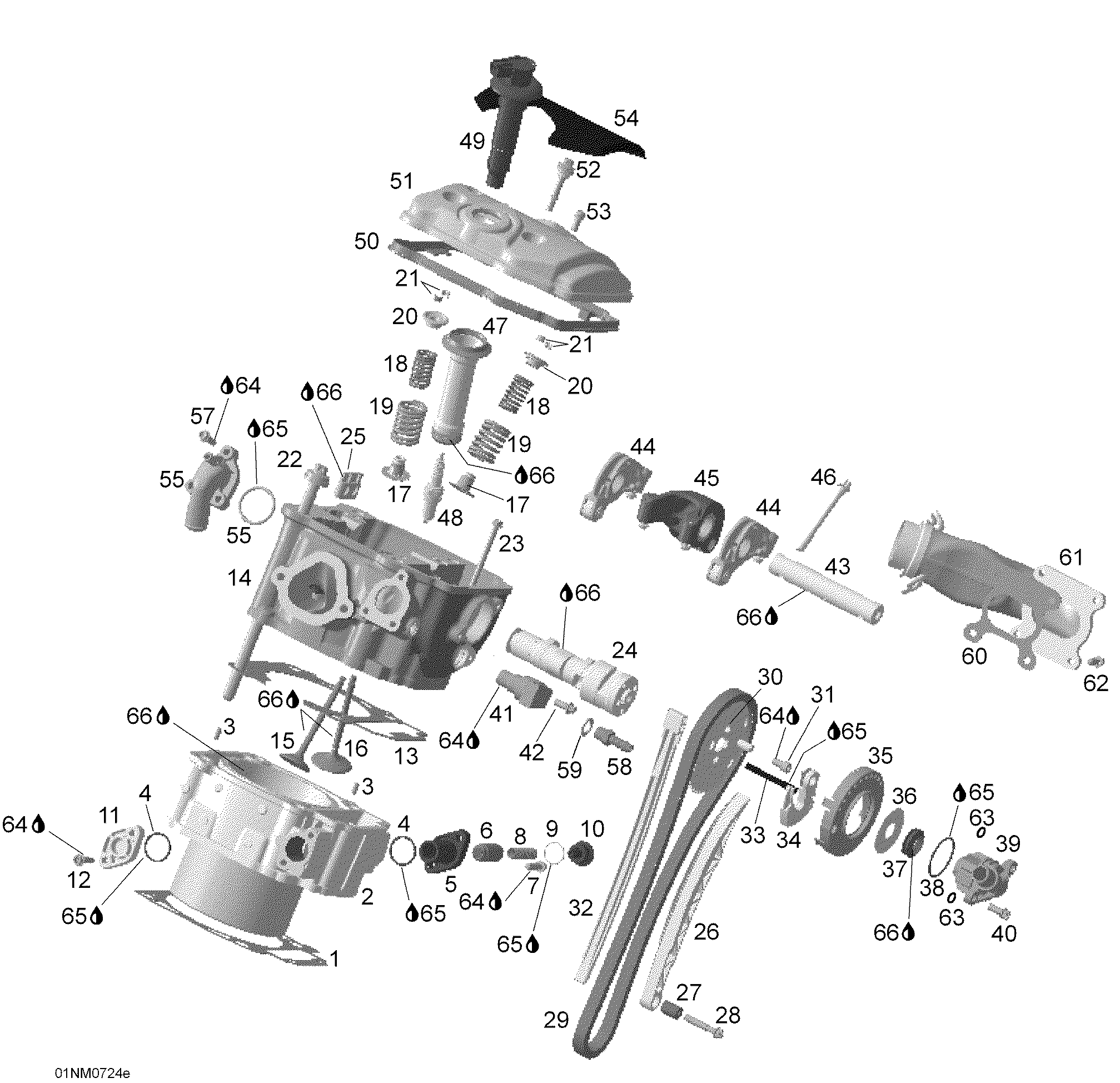

01- Cylinder and Cylinder Head, Rear Side для BRP Ski-Doo Expedition TUV 1300 (Europe) - 2007
-
№АртикулНазвание
-
1420630080 GasketGasket
-
2420623210 Cylinder with SleeveCylinder with Sleeve
-
3420929650 Drive Pin, 5 X 10Drive Pin, 5 X 10
-
4420430370 O-RingO-Ring
-
5420236510 Chain Tensioner HousingChain Tensioner Housing
-
6420236520 Chain Tensioner PlungerChain Tensioner Plunger
-
7420440232 Flanged Torx Screw M6 X 25Flanged Torx Screw M6 X 25
-
8420238120 SpringSpring
-
9420250890 O-RingO-Ring
-
10420641150 Plug ScrewPlug Screw
-
11420960810 Connection CoverConnection Cover
-
12420440232 Flanged Torx Screw M6 X 25Flanged Torx Screw M6 X 25
-
13420950660 Cylinder Head GasketCylinder Head Gasket
-
14420613475 Cylinder Head Ass'YCylinder Head Ass'Y
-
15420254027 Exhaust Valve 31 mmExhaust Valve 31 mm
-
16420254293 Intake Valve, 38 mmIntake Valve, 38 mm
-
17420630200 Valve Stem SealValve Stem Seal
-
18420838280 Valve Spring InsideValve Spring Inside
-
19420238180 Valve SpringValve Spring
-
20420254281 Valve Spring RetainerValve Spring Retainer
-
21420253645 Valve CotterValve Cotter
-
22420641020 Torx Screw M11 X 215Torx Screw M11 X 215
-
23420440612 Flanged Torx Screw M6 X 105Flanged Torx Screw M6 X 105
-
24420837456 Camshaft, RearCamshaft, Rear
-
25420851692 Camshaft GuideCamshaft Guide
-
26420236540 Chain Tensioner GuideChain Tensioner Guide
-
27420247100 Distance SleeveDistance Sleeve
-
28420440272 Flanged Torx Screw M6 X 35Flanged Torx Screw M6 X 35
-
29420297957 Camshaft ChainCamshaft Chain
-
30420254307 Timing Gear, 38 TeethTiming Gear, 38 Teeth
-
31420840031 Screw M6 X 12Screw M6 X 12
-
32420236500 Chain GuideChain Guide
-
33420220791 Deko ShaftDeko Shaft
-
34420231064 Centrifugal Weight Ass'YCentrifugal Weight Ass'Y
-
35420660036 CoverCover
-
36420627494 Thrust WasherThrust Washer
-
37420630125 V-ringV-ring
-
38420950870 O-RingO-Ring
-
39420610272 Camshaft CoverCamshaft Cover
-
40420440162 Flanged Torx Screw M6 X 16Flanged Torx Screw M6 X 16
-
41420664041 Camshaft SensorCamshaft Sensor
-
42420440162 Flanged Torx Screw M6 X 16Flanged Torx Screw M6 X 16
-
43420854599 Rocker Arm Shaft Ass'yRocker Arm Shaft Ass'y
-
44420254329 Rocker Arm, ExhaustRocker Arm, Exhaust
-
45420254316 Rocker Arm, InnerRocker Arm, Inner
-
46420641080 Torx Screw M8 X 72Torx Screw M8 X 72
-
47420851751 Spark Plug PipeSpark Plug Pipe
-
48707000246 Spark Plug, NGK DCP-R8ESpark Plug, NGK DCP-R8E
-
49420664020 Stick CoilStick Coil
-
50420630071 Sealing RingSealing Ring
-
51420610185 Valve CoverValve Cover
-
52420440560 Torx Screw M6 X 30.5Torx Screw M6 X 30.5
-
53420641488 Torx Screw M6 X 8Torx Screw M6 X 8
-
54420660201 Valve CoverValve Cover
-
55420950890 O-RingO-Ring
-
56420811700 Connecting CoverConnecting Cover
-
57420440232 Flanged Torx Screw M6 X 25Flanged Torx Screw M6 X 25
-
58420440960 Hose NippleHose Nipple
-
59420250640 GasketGasket
-
60420950680 GasketGasket
-
61420973782 Exhaust Manifold Ass'yExhaust Manifold Ass'y
-
62420440162 Flanged Torx Screw M6 X 16Flanged Torx Screw M6 X 16
-
63420230415 Seal WasherSeal Washer
-
64293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
65293550030 Grease, Super LubeGrease, Super Lube
-
66293600054 Synth Oil 4T 12x1Synth Oil 4T 12x1
