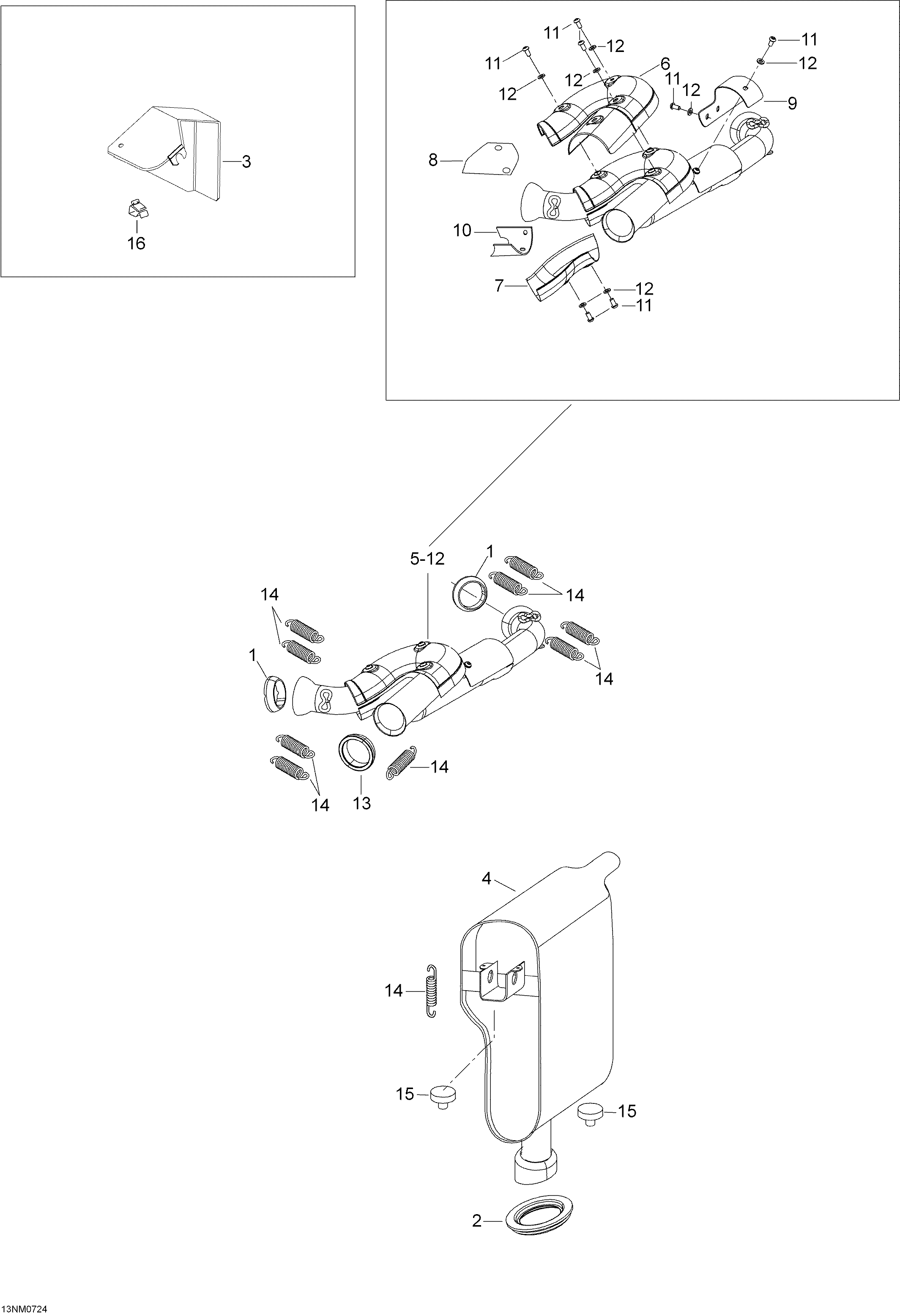

01- Exhaust System для BRP Ski-Doo Expedition TUV 1300 (Europe) - 2007
-
№АртикулНазвание
-
1514053532 Exhaust GasketExhaust Gasket
-
2570039000 Exhaust GrommetExhaust Grommet
-
3605352345 Heat ProtectorHeat Protector
-
4605252818 MufflerMuffler
-
5605154771 Tune Pipe, Yeti 4-TecTune Pipe, Yeti 4-Tec
-
6605351566 Heat CoverHeat Cover
-
7605351567 Heat CoverHeat Cover
-
8605351568 Heat CoverHeat Cover
-
9605351569 Heat CoverHeat Cover
-
10605351570 Heat CoverHeat Cover
-
11205461060 Socket Head Screw M6 X 10Socket Head Screw M6 X 10
-
12M20032 WasherWasher
-
13514053582 Exhaust GasketExhaust Gasket
-
14415107100 SpringSpring
-
15514053654 Rubber BumperRubber Bumper
-
16M27017 Gear ClampGear Clamp
