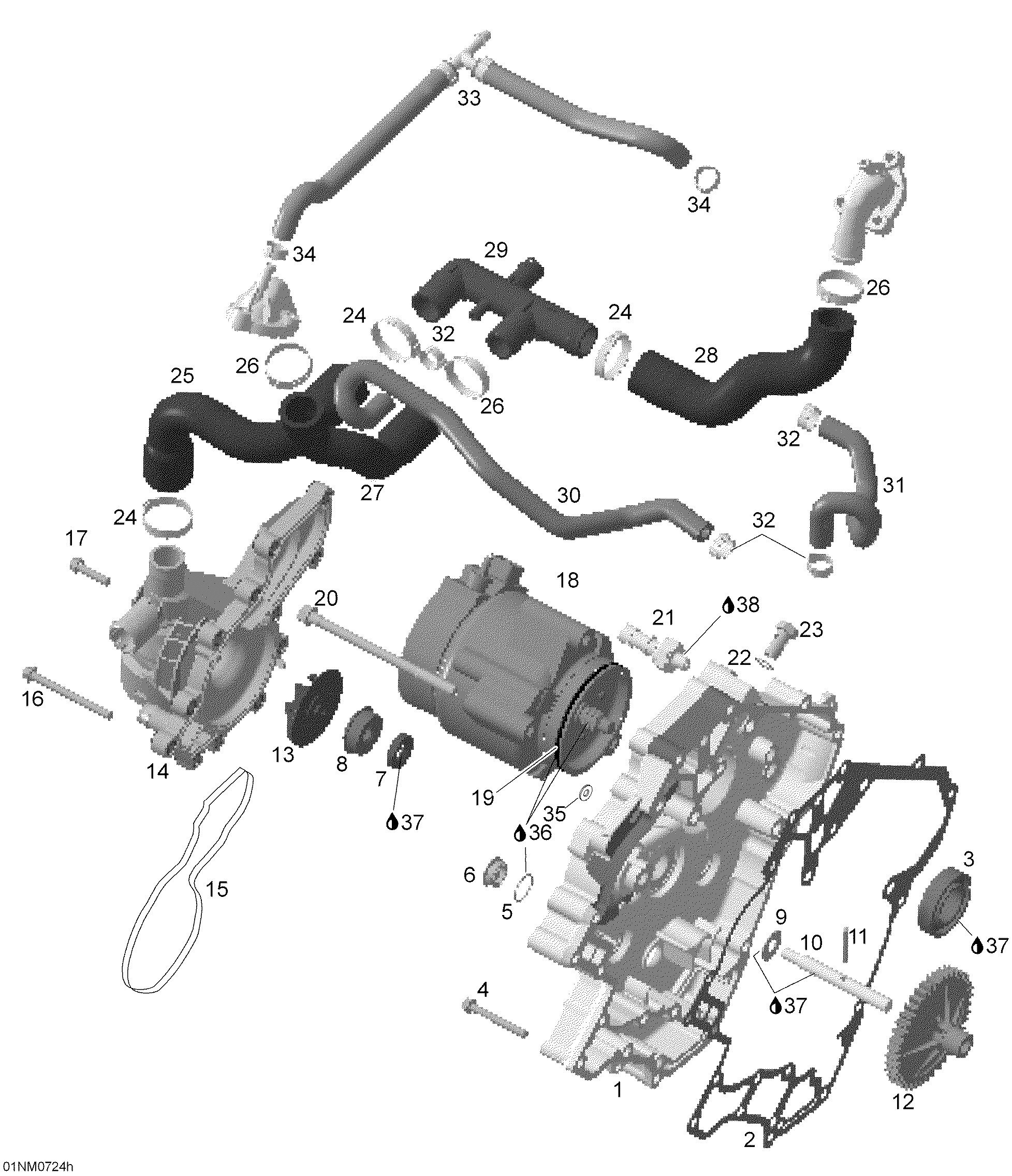

01- Waterpump, Alternator and Ignition Cover для BRP Ski-Doo Expedition TUV 1300 (Europe) - 2007
-
№АртикулНазвание
-
1420811663 Ignition CoverIgnition Cover
-
2420950590 GasketGasket
-
3420932650 Ball Bearing 6005Ball Bearing 6005
-
4420440322 Flanged Torx Screw M6 X 45Flanged Torx Screw M6 X 45
-
5420250890 O-RingO-Ring
-
6420241801 Drain PlugDrain Plug
-
7420650310 Oil SealOil Seal
-
8420650370 Rotary SealRotary Seal
-
9420227685 Thrust WasherThrust Washer
-
10420837480 Waterpump ShaftWaterpump Shaft
-
11420232430 Needle PinNeedle Pin
-
12420834460 Waterpump Gear, 41 TeethWaterpump Gear, 41 Teeth
-
13420222500 ImpellerImpeller
-
14420811605 Waterpump HousingWaterpump Housing
-
15420950500 O-ringO-ring
-
16420440602 Hex Flanged Screw M6 X 65Hex Flanged Screw M6 X 65
-
17420440232 Flanged Torx Screw M6 X 25Flanged Torx Screw M6 X 25
-
18420296460 Alternator, 40 AmperesAlternator, 40 Amperes
-
19420850430 O-RingO-Ring
-
20420941651 Hex Screw M8 X 119Hex Screw M8 X 119
-
21420256773 Oil Pressure Switch M10 X 1Oil Pressure Switch M10 X 1
-
22420230150 Oil SealOil Seal
-
23420940874 Banjo Bolt M10 X 19Banjo Bolt M10 X 19
-
24420853173 ClampClamp
-
25420922180 Molded HoseMolded Hose
-
26420853163 ClampClamp
-
27420922745 Molded HoseMolded Hose
-
28420922740 Molded HoseMolded Hose
-
29420922280 Elbow FittingElbow Fitting
-
30420822090 Molded HoseMolded Hose
-
31420822092 Molded HoseMolded Hose
-
32420853303 ClampClamp
-
33420660881 Hose Ass'yHose Ass'y
-
34420853303 ClampClamp
-
35420227945 WasherWasher
-
36293550030 Grease, Super LubeGrease, Super Lube
-
37293600054 Synth Oil 4T 12x1Synth Oil 4T 12x1
-
38293800060 Loctite 243, 10 mlLoctite 243, 10 ml
