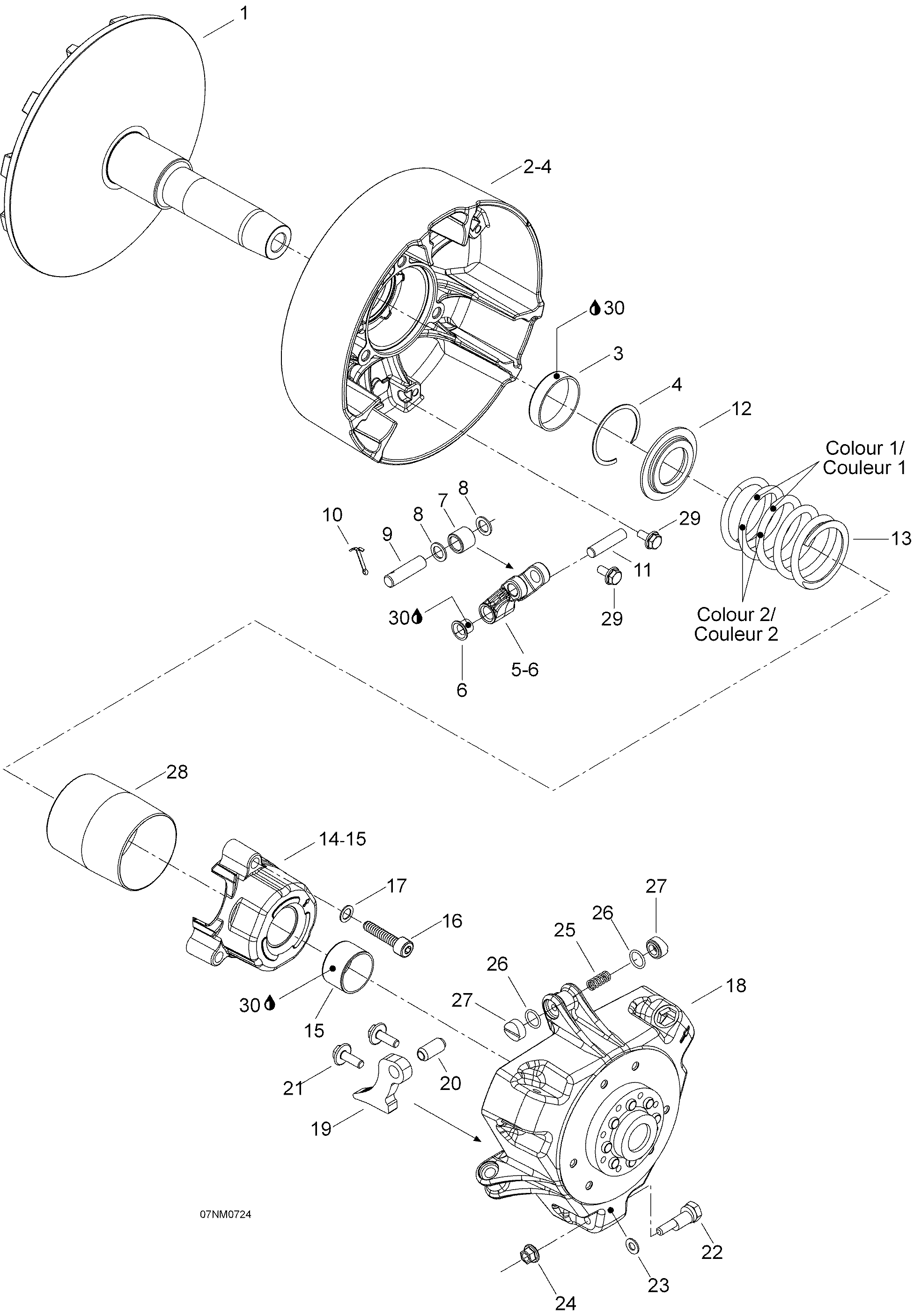

05- Drive Pulley для BRP Ski-Doo Expedition TUV 1300 (Europe) - 2007
-
№АртикулНазвание
-
1417222743 Fixed Flange Ass'yFixed Flange Ass'y
-
2417222646 Sliding Flange Ass'ySliding Flange Ass'y
-
3417222758 BushingBushing
-
4293370037 CirclipCirclip
-
5605354281 Lever Ass'yLever Ass'y
-
6417004305 BushingBushing
-
7417222762 RollerRoller
-
8417004302 Stopper WasherStopper Washer
-
9417004308 PinPin
-
10417222813 Pin ScrewPin Screw
-
11605354282 Lever PinLever Pin
-
12417222745 Seat SpringSeat Spring
-
13414993000 Tra SpringTra Spring
-
14417222746 Spring Cover Ass'ySpring Cover Ass'y
-
15417009204 BushingBushing
-
16205084044 Socket Head Screw M8 X 40Socket Head Screw M8 X 40
-
17250200009 Lock Washer 8 mmLock Washer 8 mm
-
18417222729 Governor Cup Ass'y.Governor Cup Ass'y.
-
19605254091 Ramp, 607 hrRamp, 607 hr
-
20250400009 Rolled Pin 10 X 22Rolled Pin 10 X 22
-
21207162044 Hex Cap Screw M6 X 20Hex Cap Screw M6 X 20
-
22417222674 Calibration ScrewCalibration Screw
-
23420827305 Flat Washer 6,2 x 18 x 2Flat Washer 6,2 x 18 x 2
-
24233061414 Hex Flanged Nut M6Hex Flanged Nut M6
-
25417005700 SpringSpring
-
26732401030 O-RingO-Ring
-
27417222362 Slider ShoeSlider Shoe
-
28417009205 GuardGuard
-
29210361296 Hex Forming Screw M6 X 12Hex Forming Screw M6 X 12
-
30413703100 Loctite 609, 10 mlLoctite 609, 10 ml
