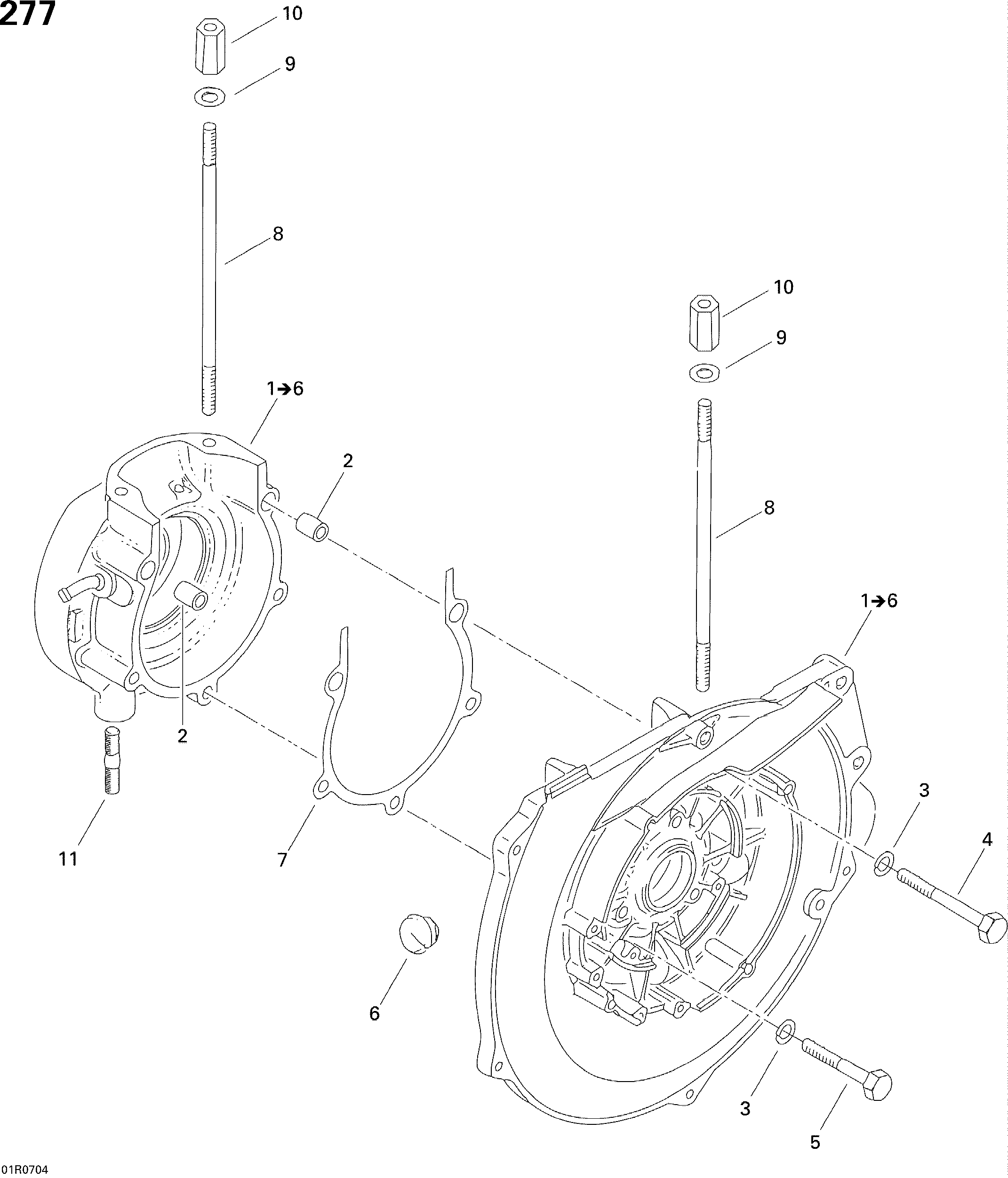

01- Crankcase для BRP Ski-Doo Freestyle Session 300F - 2007
-
№АртикулНазвание
-
1420886704 Crankcase Ass'y. Includes 1 to 5Crankcase Ass'y. Includes 1 to 5
-
2420229150 DowelDowel
-
3420945752 Lock Washer 8 mmLock Washer 8 mm
-
4207087544 Hex Screw M8 X 75Hex Screw M8 X 75
-
5207085596 Hex Screw M8 X 55Hex Screw M8 X 55
-
6420860962 Cable GrommetCable Grommet
-
7420850060 Gasket CrankcaseGasket Crankcase
-
8420840620 Stud M8 X 175Stud M8 X 175
-
9420250311 Flat Washer 8.4 mmFlat Washer 8.4 mm
-
10420842010 Distance Nut M8 X 27,5Distance Nut M8 X 27,5
-
11420641834 Stud M10 X 29Stud M10 X 29
