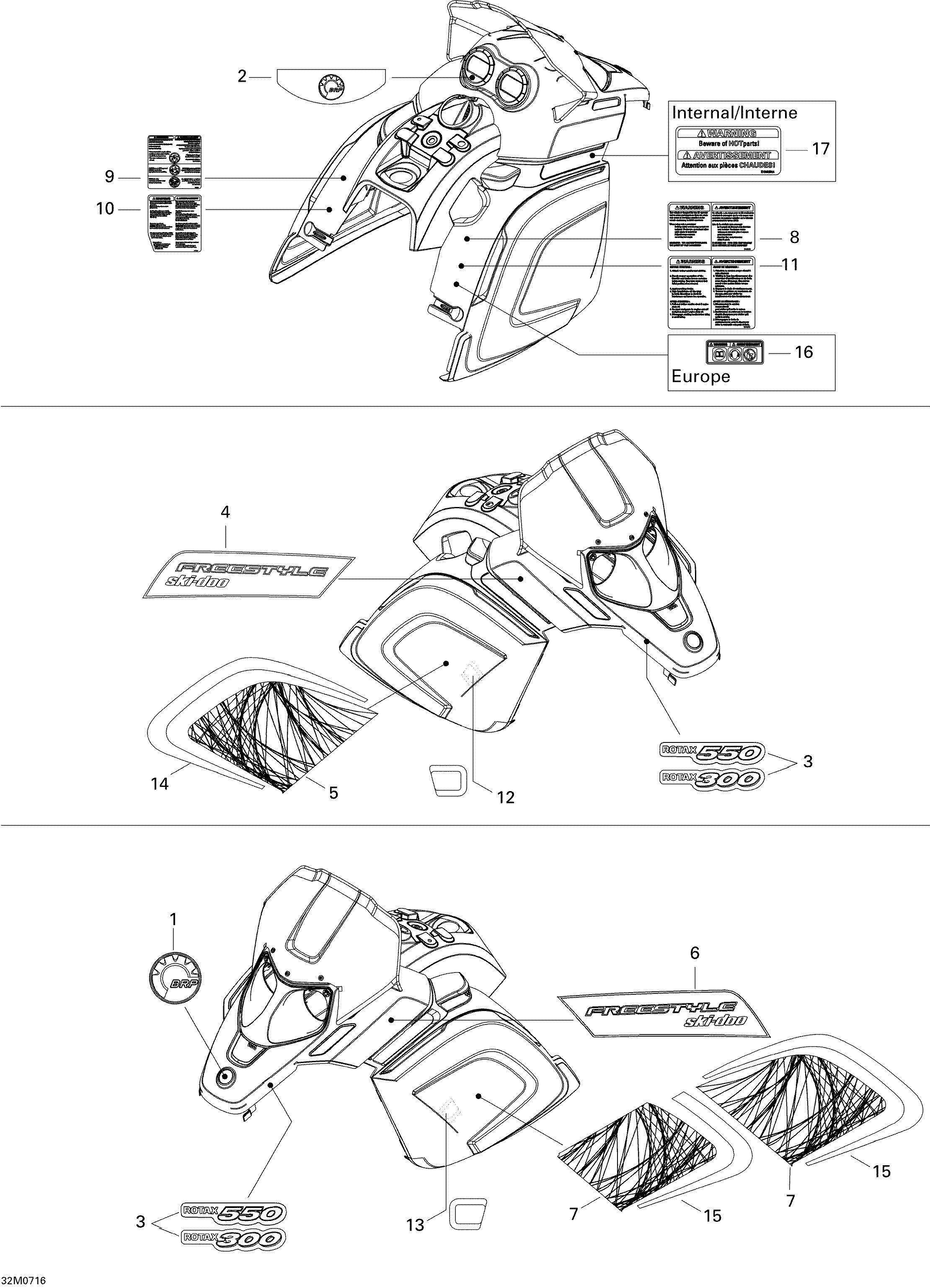

09- Decals 300F для BRP Ski-Doo Freestyle Session 300F - 2007
-
№АртикулНазвание
-
1219902468 Logo BRPLogo BRP
-
2516002905 Logo Brp 16 mm. 300, Can, USLogo Brp 16 mm. 300, Can, US
-
3516002944 Hood Decal, Rotax 300. 300Hood Decal, Rotax 300. 300
-
4516002910 RH Upper Side DecalRH Upper Side Decal
-
5516003042 RH Side DecalRH Side Decal
-
6516002909 LH Upper Side DecalLH Upper Side Decal
-
7516003041 LH Side Decal. 300LH Side Decal. 300
-
8516003026 Security Label, Passenger NumberSecurity Label, Passenger Number
-
9516002908 Security Label, GeneralSecurity Label, General
-
10516003029 Security Label, FamiliarizationSecurity Label, Familiarization
-
11516003024 Security Label, StartingSecurity Label, Starting
-
12516001910 RH Protector DecalRH Protector Decal
-
13516001911 LH Protector DecalLH Protector Decal
-
14516002919 RH Exterior Side DecalRH Exterior Side Decal
-
15516002918 LH Exterior Side Decal. 300LH Exterior Side Decal. 300
-
16516003027 Europe Pictogram Decal. 300, EuropeEurope Pictogram Decal. 300, Europe
-
17516002965 Security Label, Hot PartsSecurity Label, Hot Parts
