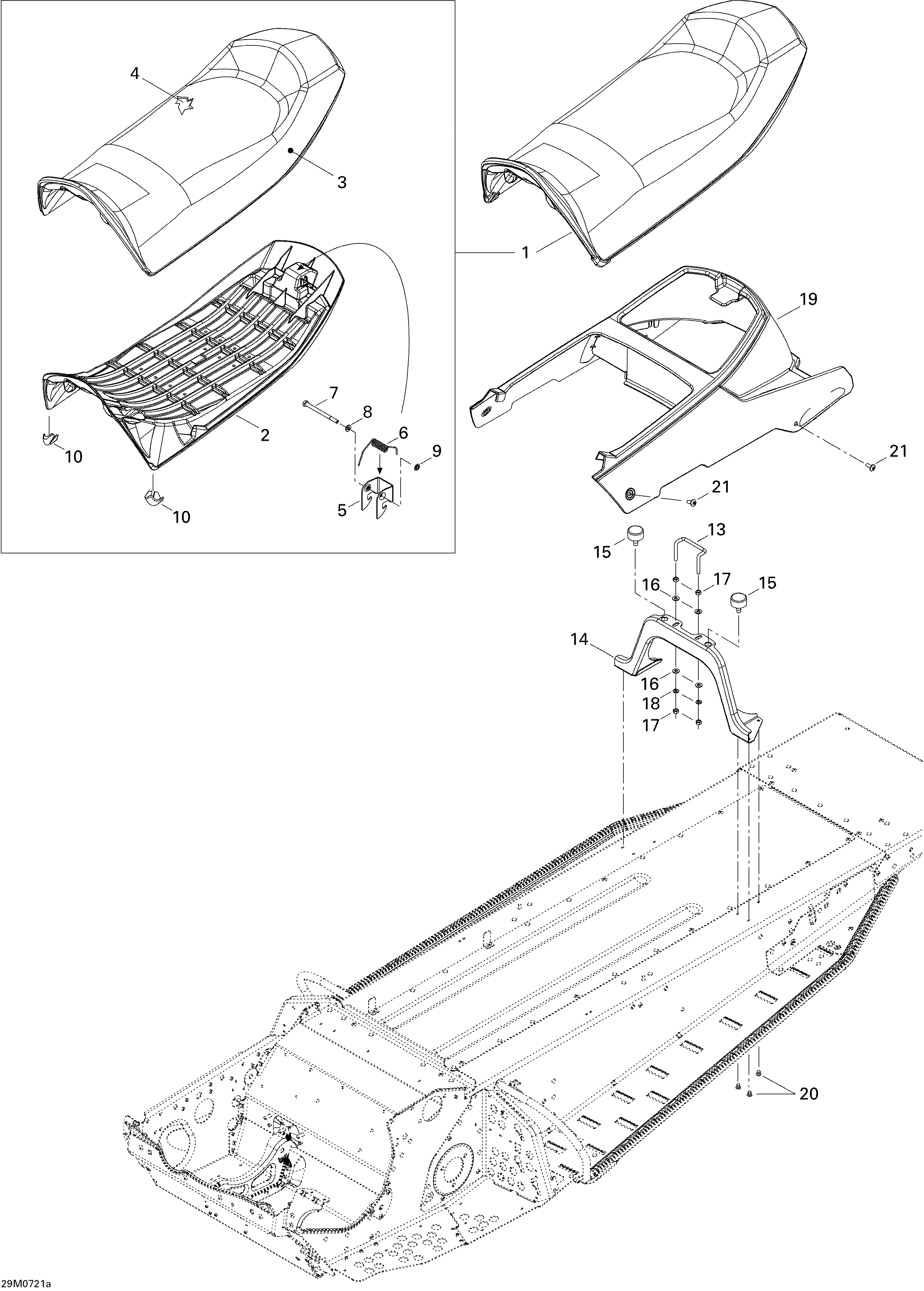

09- Seat 1 для BRP Ski-Doo Freestyle Session 300F - 2007
-
№АртикулНазвание
-
2510004487 Seat BaseSeat Base
-
3510004488 Seat CoverSeat Cover
-
4510004489 Seat FoamSeat Foam
-
5708000144 Latch, BlackLatch, Black
-
6708000369 SpringSpring
-
7207068044 Screw Hex M6 X 80Screw Hex M6 X 80
-
8234061410 Flat Washer 6 mmFlat Washer 6 mm
-
9732610072 Push NutPush Nut
-
10510004606 Seat Protector, BlackSeat Protector, Black
-
13510004608 Seat Fastener PinSeat Fastener Pin
-
14510004602 Seat SupportSeat Support
-
15708000006 Rubber StopperRubber Stopper
-
16224061121 Flat WasherFlat Washer
-
17232061414 Hex Nut M6Hex Nut M6
-
18234161601 Lock Washer Helical M6Lock Washer Helical M6
-
19510004490 TrunkTrunk
-
20390909200 Avex RivetAvex Rivet
-
21250000129 Truss Torx Screw M6 X 16Truss Torx Screw M6 X 16
