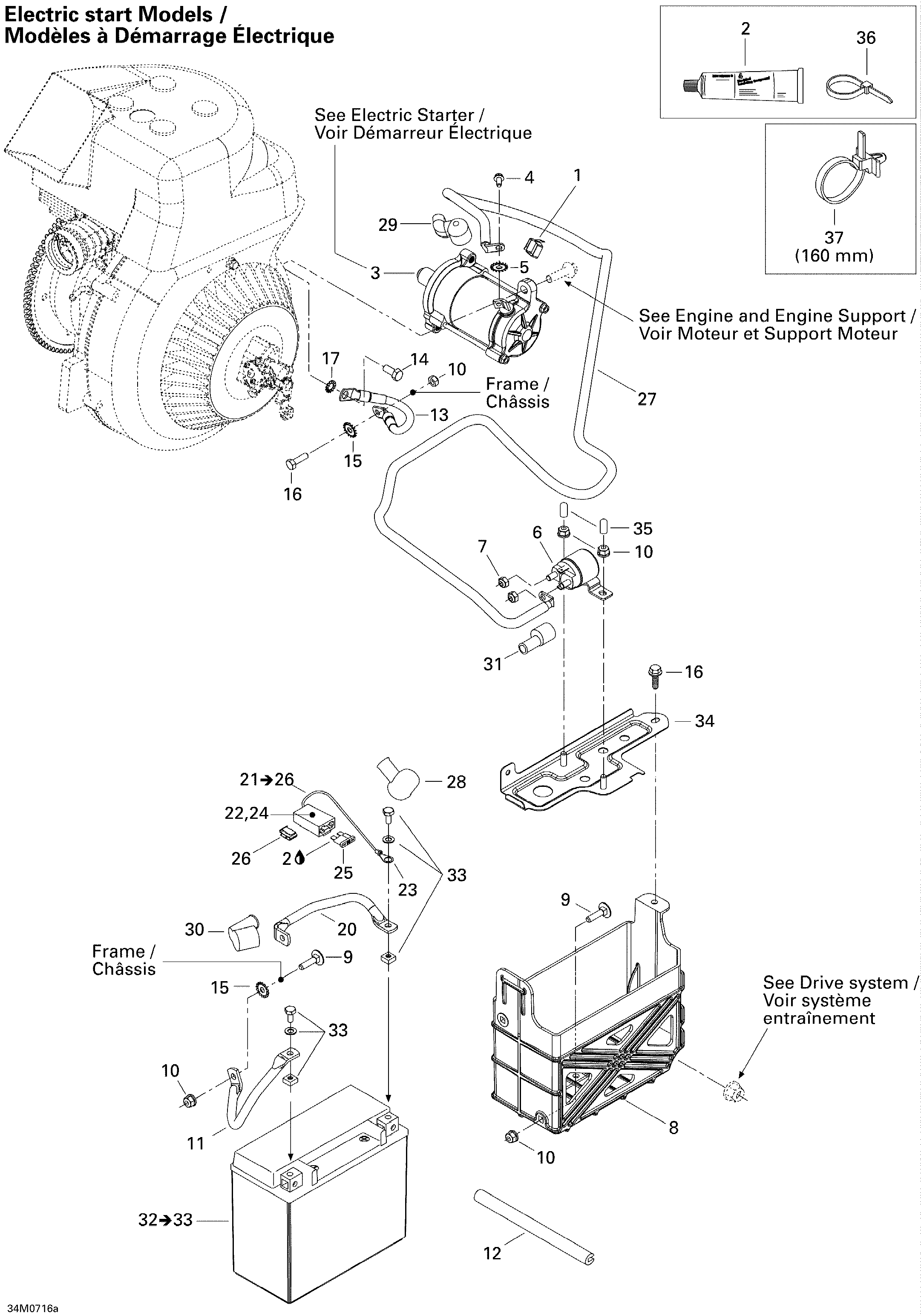

10- Battery And Starter 300F для BRP Ski-Doo Freestyle Session 300F - 2007
-
№АртикулНазвание
-
1414227300 ClipClip
-
2293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
3515176537 StarterStarter
-
4207551044 Flanged Hex Screw M5 X 10Flanged Hex Screw M5 X 10
-
5394001900 External Tooth Lock WasherExternal Tooth Lock Washer
-
6515176011 Starter RelayStarter Relay
-
7232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
8515176423 Battery SupportBattery Support
-
9207762544 Carriage Bolt M6 X 25Carriage Bolt M6 X 25
-
10233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
11515175749 Ground WireGround Wire
-
12271001530 Protection TrimProtection Trim
-
13515176318 Ground WireGround Wire
-
14207682044 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
15250200041 Lock Washer Serrated M6Lock Washer Serrated M6
-
16207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
17234481608 Serrated Lock Washer 8 mmSerrated Lock Washer 8 mm
-
20515175904 Battery WireBattery Wire
-
21515175489 Battery Fuse Wire. Includes 21 to 26Battery Fuse Wire. Includes 21 to 26
-
22409004200 Female TerminalFemale Terminal
-
23278000992 Open BarrelOpen Barrel
-
24409004000 Fuse HolderFuse Holder
-
25410917200 Fuse, 30 AmperesFuse, 30 Amperes
-
26409014200 ClipClip
-
27515176298 Battery WireBattery Wire
-
28570151000 Protection CapProtection Cap
-
29278000020 Protection CapProtection Cap
-
30570064200 Protection CapProtection Cap
-
31515175919 Protector CapProtector Cap
-
32410301203 Battery, 18 Amperes. Includes 32 to 33Battery, 18 Amperes. Includes 32 to 33
-
33295500849 Battery Fastener KitBattery Fastener Kit
-
34515175735 Battery StripBattery Strip
-
35515176141 CapCap
-
36414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
36293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
37293750009 Tie-Rap 160 mmTie-Rap 160 mm
