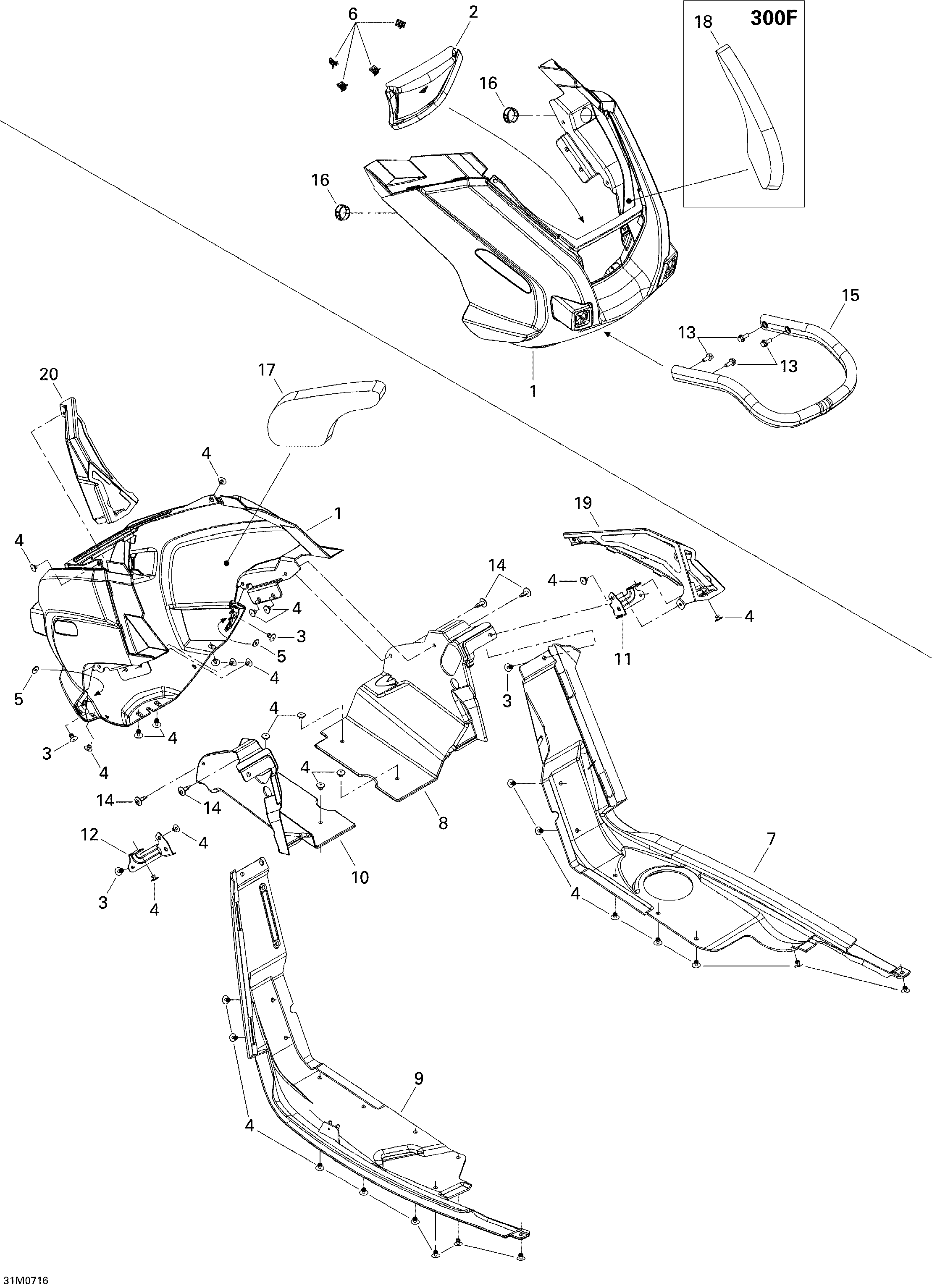

09- Bottom Pan 300F для BRP Ski-Doo Freestyle Session 300F - 2007
-
№АртикулНазвание
-
1502006752 Front Bottom PanFront Bottom Pan
-
2502006753 Front Botton Pan GrillFront Botton Pan Grill
-
3293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
4293150103 Pop RivetPop Rivet
-
5517124300 WasherWasher
-
6517302785 ClipClip
-
7502006852 RH Bottom PanRH Bottom Pan
-
8502006853 RH Side Bottom PanRH Side Bottom Pan
-
9502006788 LH Bottom PanLH Bottom Pan
-
10502006851 LH Side Bottom PanLH Side Bottom Pan
-
11502006773 RH SupportRH Support
-
12502006775 LH SupportLH Support
-
13207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
14414745900 Tuflock Phillips Plastic ScrewTuflock Phillips Plastic Screw
-
15502006797 Front BumperFront Bumper
-
16414916600 Nylon CapNylon Cap
-
17502006807 RH Bottom Pan FoamRH Bottom Pan Foam
-
18502006808 LH Bottom Pan Foam. 300FLH Bottom Pan Foam. 300F
-
19502006789 RH Botton Pan GrillRH Botton Pan Grill
-
20502006791 LH Botton Pan GrillLH Botton Pan Grill
