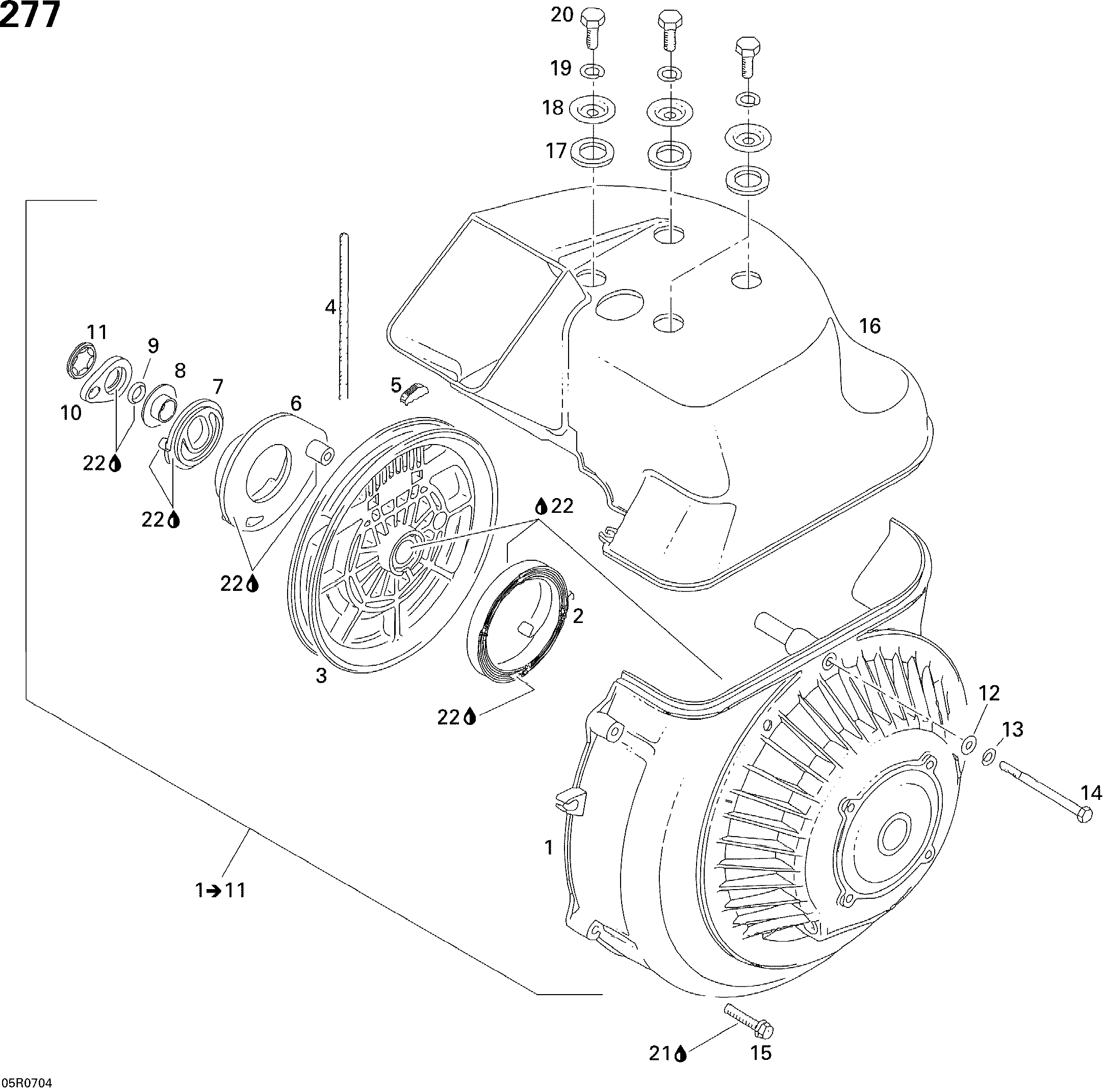

04- Rewind Starter для BRP Ski-Doo Freestyle Session 300F - 2007
-
№АртикулНазвание
-
1420889825 Rewind Starter. Includes 1 to 11Rewind Starter. Includes 1 to 11
-
2420939115 Rewind SpringRewind Spring
-
3420852289 Rope SheaveRope Sheave
-
4412500200 Starter Rope 2200 mm, MeterStarter Rope 2200 mm, Meter
-
5420852070 Key ClampKey Clamp
-
6420852296 PawlPawl
-
7420852307 Pawl LockPawl Lock
-
8420847925 Stage SleeveStage Sleeve
-
9420250400 O-RingO-Ring
-
10420852520 Lock RingLock Ring
-
11420845560 Locking ElementLocking Element
-
12224061121 Flat WasherFlat Washer
-
13420945751 Lock Washer 6 mmLock Washer 6 mm
-
14207067544 Hex Screw M6 X 75Hex Screw M6 X 75
-
15420640411 Tapping Screw M6 X 35Tapping Screw M6 X 35
-
16420910020 Cylinder CowlCylinder Cowl
-
17420960860 Rubber WasherRubber Washer
-
18420827140 Cowl CoverCowl Cover
-
19420945752 Lock Washer 8 mmLock Washer 8 mm
-
20207181644 Hex. Screw M8 x 16Hex. Screw M8 x 16
-
21293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
22420899763 Molykote PG 54, 10 GMolykote PG 54, 10 G
