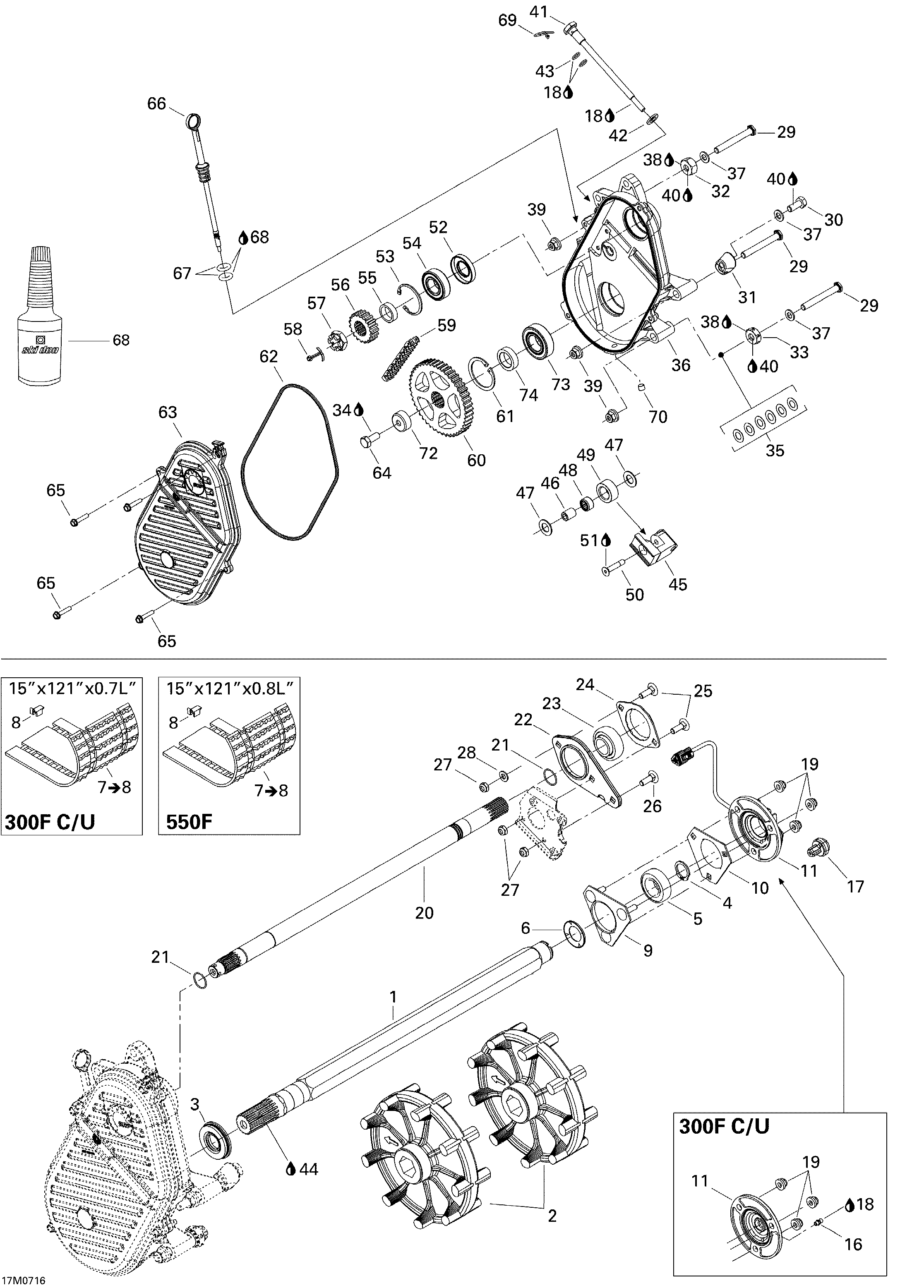

05- Drive System 300F для BRP Ski-Doo Freestyle Session 300F - 2007
-
№АртикулНазвание
-
1501027400 Drive AxleDrive Axle
-
2504151781 Sprocket, 9 TeethSprocket, 9 Teeth
-
3504151918 Oil Seal Ass'yOil Seal Ass'y
-
4371910200 CirclipCirclip
-
5504152009 Ball BearingBall Bearing
-
6501017400 Bearing ProtectorBearing Protector
-
7504152487 Track 15'' X 121'' X 0.72'' Ass'y. 300F C/U, Includes 7 to 8Track 15'' X 121'' X 0.72'' Ass'y. 300F C/U, Includes 7 to 8
-
8504152410 GuideGuide
-
9504151860 Bearing HousingBearing Housing
-
10501025000 FlangeFlange
-
11504152463 Speedo Flange. 300F C/USpeedo Flange. 300F C/U
-
16408200700 Grease Fitting. 300F C/UGrease Fitting. 300F C/U
-
18219700417 Synthetic Grease, 400 gSynthetic Grease, 400 g
-
19233281414 Hex Flanged Elastic Nut M8Hex Flanged Elastic Nut M8
-
20504152292 Counter ShaftCounter Shaft
-
21371910000 CirclipCirclip
-
22504151968 SpacerSpacer
-
23504152535 Ball BearingBall Bearing
-
24501026900 FlangeFlange
-
25207782544 Carriage Bolt, M8 X 25Carriage Bolt, M8 X 25
-
26207782044 Carriage Bolt, M8 X 20Carriage Bolt, M8 X 20
-
27232581414 Hex Elastic Nut M8Hex Elastic Nut M8
-
28234081410 Flat Washer 8 mmFlat Washer 8 mm
-
29250000151 Hex Screw M10 X 80Hex Screw M10 X 80
-
30207102544 Hex Screw M10 X 25Hex Screw M10 X 25
-
31504152252 SpacerSpacer
-
32504083800 SpacerSpacer
-
33504152237 SpacerSpacer
-
34293800005 Loctite 271, 10 mlLoctite 271, 10 ml
-
35504073700 WasherWasher
-
36504152481 ChaincaseChaincase
-
37503175800 WasherWasher
-
38293800070 Loctite 767, Antiseize Lubricant, 8 OzLoctite 767, Antiseize Lubricant, 8 Oz
-
39233201414 Hex Flanged Elastic Nut M10Hex Flanged Elastic Nut M10
-
40293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
41732601314 Adjustment ScrewAdjustment Screw
-
42234001410 Flat Washer 10 mmFlat Washer 10 mm
-
43414484400 O-RingO-Ring
-
44219700417 Synthetic Grease, 400 gSynthetic Grease, 400 g
-
45504151951 Chain TensionerChain Tensioner
-
46504080200 SpacerSpacer
-
47504080300 WasherWasher
-
48405403000 Needle BearingNeedle Bearing
-
49414531300 RollerRoller
-
50732601144 ScrewScrew
-
51293800005 Loctite 271, 10 mlLoctite 271, 10 ml
-
52504151927 SealSeal
-
53371901700 CirclipCirclip
-
54504152006 Ball BearingBall Bearing
-
55504147200 ShimShim
-
56504152603 15 Tooth Sprocket. 300F15 Tooth Sprocket. 300F
-
57250100056 Hex Castle Nut, M20 X1.5. 300FHex Castle Nut, M20 X1.5. 300F
-
58371006300 Pin CotterPin Cotter
-
59504151830 Drive Chain, 72 Links. 300FDrive Chain, 72 Links. 300F
-
60504152238 45 Tooth Sprocket. 300F45 Tooth Sprocket. 300F
-
61415064300 Circlip, InteriorCirclip, Interior
-
62415046400 O-RingO-Ring
-
63504152471 Chaincase CoverChaincase Cover
-
64207102544 Hex Screw M10 X 25Hex Screw M10 X 25
-
65210263080 Hex Screw M6 X 30Hex Screw M6 X 30
-
66504151703 Filler Cap Ass'yFiller Cap Ass'y
-
67414969400 O-RingO-Ring
-
68413803300 Synthetic Chaincase Oil, 12 X 355 mlSynthetic Chaincase Oil, 12 X 355 ml
-
69414575600 Hair PinHair Pin
-
70504151921 Plug 1/8''-27Plug 1/8''-27
-
72504152460 CapCap
-
73504152005 Ball BearingBall Bearing
-
74504152649 ShimShim
