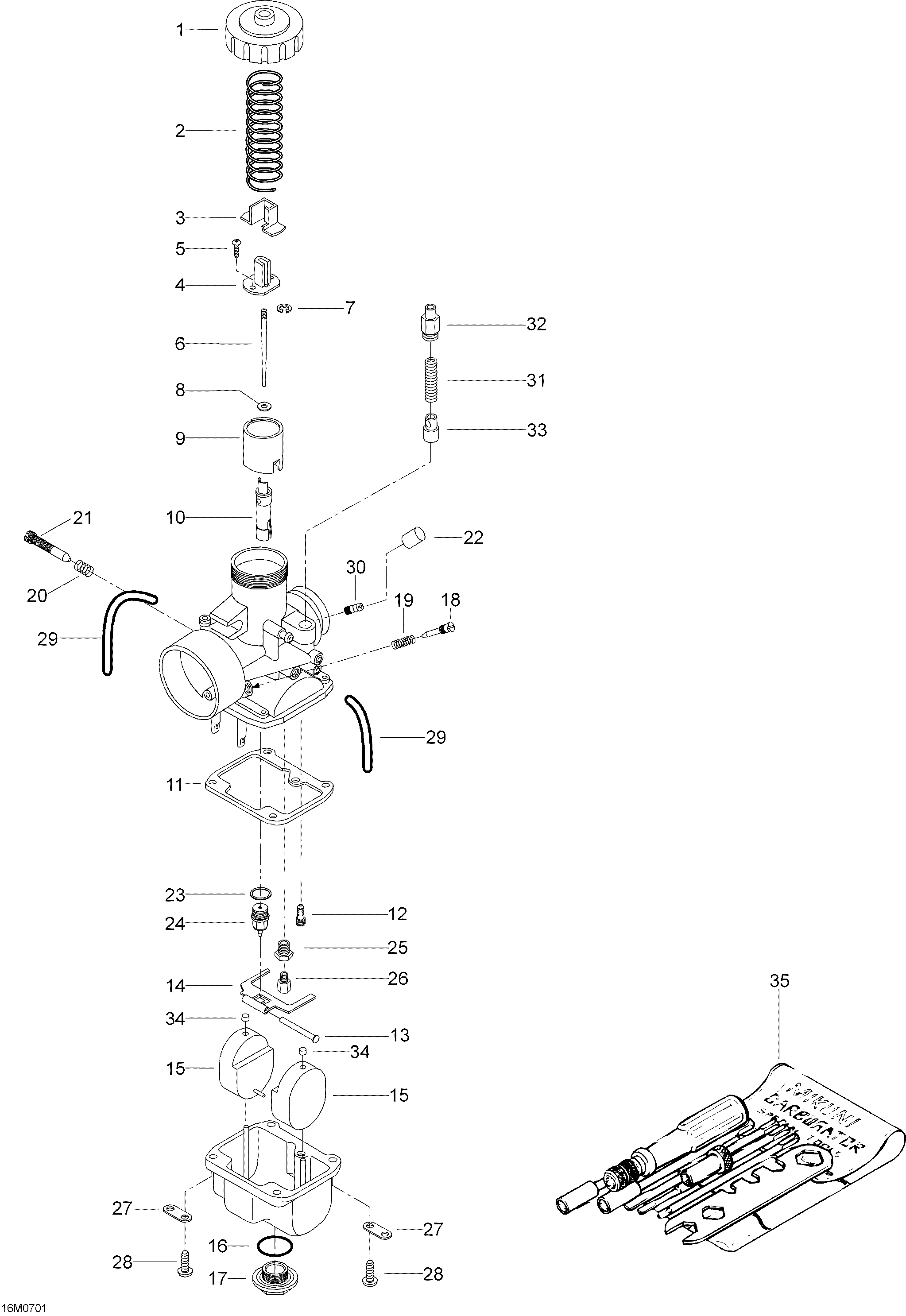

02- Carburetor 600 SUV для BRP Ski-Doo Skandic SUV 600 - 2007
-
№АртикулНазвание
-
-M19169 Carburetor Vm-38. SUV 600, Includes 1 to 34Carburetor Vm-38. SUV 600, Includes 1 to 34
-
1404105100 Cover. SUV 600Cover. SUV 600
-
2404154800 SpringSpring
-
3404122100 CoverCover
-
4404160800 ConnectorConnector
-
5404121300 Screw With WasherScrew With Washer
-
6404162064 Needle Jet J8-6DGL24. SUV 600Needle Jet J8-6DGL24. SUV 600
-
7404152400 E-RingE-Ring
-
8404117000 PackingPacking
-
9404128400 Piston Valve 2.5Piston Valve 2.5
-
10404161805 Needle Jet Nj 480 P-9. SUV 600Needle Jet Nj 480 P-9. SUV 600
-
11404104700 Gasket. SUV 600Gasket. SUV 600
-
12404109100 Pilot Jet Pj 40Pilot Jet Pj 40
-
13404103300 Lever PinLever Pin
-
14404105000 Float Lever. SUV 600Float Lever. SUV 600
-
15404105400 Float. SUV 600Float. SUV 600
-
16404101500 O-Ring. SUV 600O-Ring. SUV 600
-
17404105600 Drain Plug Screw. SUV 600Drain Plug Screw. SUV 600
-
18404149000 Air Screw. SUV 600Air Screw. SUV 600
-
19404139800 Spring. SUV 600Spring. SUV 600
-
20404101700 SpringSpring
-
21404102800 Idle Speed ScrewIdle Speed Screw
-
22M19057 CapCap
-
23404101600 Seat WasherSeat Washer
-
24404147400 Needle Valve 1.5. SUV 600Needle Valve 1.5. SUV 600
-
25404105500 Guide ScrewGuide Screw
-
26404101400 Main Jet 330. SUV 600Main Jet 330. SUV 600
-
27404103000 PlatePlate
-
28404102000 Screw With Lock WasherScrew With Lock Washer
-
29404160100 Air Vent TubeAir Vent Tube
-
30404153400 Nipple. SUV 600Nipple. SUV 600
-
31404127400 SpringSpring
-
32404161100 Guide HolderGuide Holder
-
33404160400 Plunger Ass'yPlunger Ass'y
-
34404105800 CapCap
-
35404112000 Tool KitTool Kit
