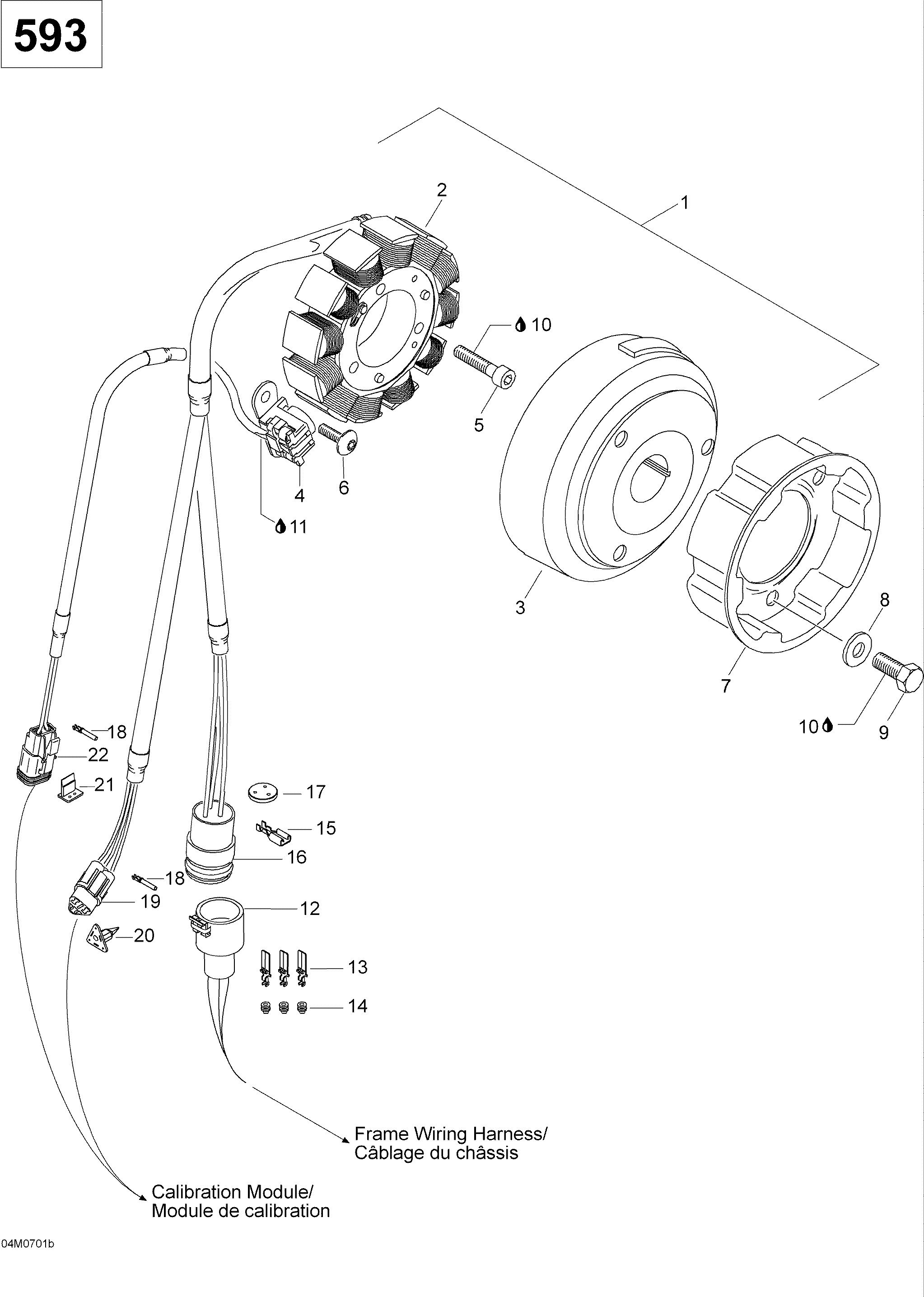

03- Magneto 600 SUV для BRP Ski-Doo Skandic SUV 600 - 2007
-
№АртикулНазвание
-
2410922949 Stator Plate Ass'YStator Plate Ass'Y
-
3410922950 FlywheelFlywheel
-
4410922951 Pick-up Ass'yPick-up Ass'y
-
5205063044 Socket Head Screw M6 X 30Socket Head Screw M6 X 30
-
6420640321 Taptite Screw M6 X 16Taptite Screw M6 X 16
-
7420852590 Starting PulleyStarting Pulley
-
8420827405 Flat WasherFlat Washer
-
9420841520 Socket Head Screw M8 X 12Socket Head Screw M8 X 12
-
10293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
12409207900 Male HousingMale Housing
-
13409011100 Male TerminalMale Terminal
-
14409208500 SealSeal
-
15409011900 Female TerminalFemale Terminal
-
16409208200 Female Terminal Housing, 3 CircuitsFemale Terminal Housing, 3 Circuits
-
18278000632 Female TerminalFemale Terminal
-
19409207400 Female HousingFemale Housing
-
20409207200 (Female) Secondary Lock (3 Circuits) (Deutsch)(Female) Secondary Lock (3 Circuits) (Deutsch)
-
21409207100 Female Lock, 2 CircuitsFemale Lock, 2 Circuits
-
22409207300 Female Terminal Housing, 2 CircuitsFemale Terminal Housing, 2 Circuits
