07- Front Suspension And Ski 600 SUV для BRP Ski-Doo Skandic SUV 600 - 2007

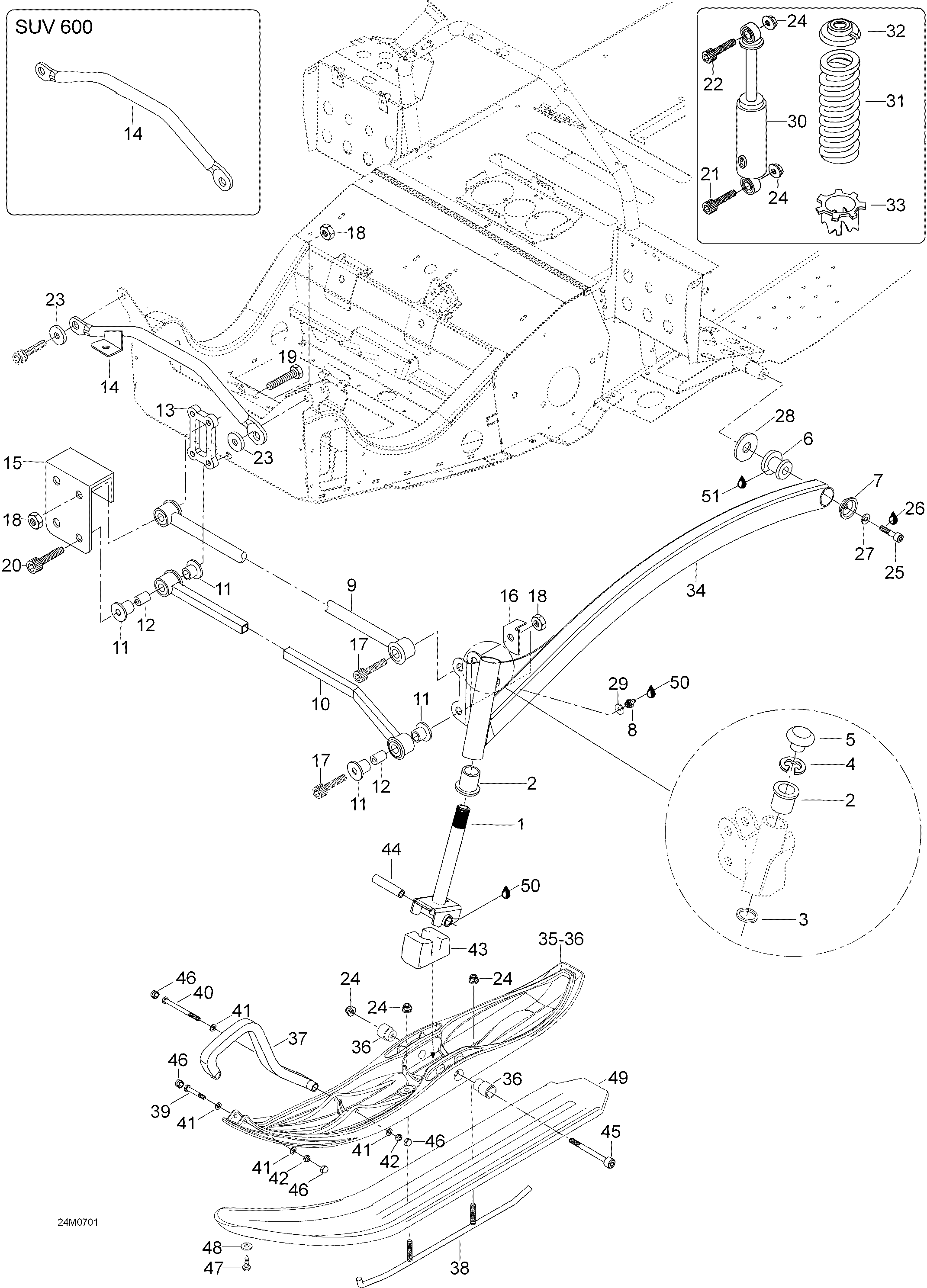

![](/wa-data/public/shop/sheme/bombardier/ski-doo/c5696757-f35d-46ca-afeb-e567249f948e.png)
-
№АртикулНазвание
-
1506151234 Ski LegSki Leg
-
2505070003 CushionCushion
-
3505070004 WasherWasher
-
4371910400 CirclipCirclip
-
5572091300 CapCap
-
6570062200 DamperDamper
-
7506115800 CupCup
-
8M34011 Grease FittingGrease Fitting
-
9M5348207 Upper Arm Ass'yUpper Arm Ass'y
-
9M5345902 Upper Arm Ass'y. SUV 600, EuropeUpper Arm Ass'y. SUV 600, Europe
-
10605252227 Lower Arm Ass'yLower Arm Ass'y
-
10605252375 Lower Arm Ass'y. SUV 600, EuropeLower Arm Ass'y. SUV 600, Europe
-
11506149100 CushionCushion
-
12605450024 BushingBushing
-
13M5345384 Lower Link PlateLower Link Plate
-
14605348306 Bar. SUV 600Bar. SUV 600
-
15M5345716 Painted Link PlatePainted Link Plate
-
16605448861 RH Plate LockingRH Plate Locking
-
16605448862 LH Plate LockingLH Plate Locking
-
17M40371 Screw Allen M12 X 55Screw Allen M12 X 55
-
18232521414 Elastic Stop Nut M12Elastic Stop Nut M12
-
19M40185 Screw M12 X 75Screw M12 X 75
-
20M40370 Screw Allen M12 X 75Screw Allen M12 X 75
-
21M40837 Screw M10 X 55Screw M10 X 55
-
22M40254 Screw M10 X 65Screw M10 X 65
-
23605449801 WasherWasher
-
24M33074 NutNut
-
25M40810 Screw Allen M8 X 20Screw Allen M8 X 20
-
26293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
27234181401 Lock Washer 8 mmLock Washer 8 mm
-
28503146700 WasherWasher
-
29M20007 WasherWasher
-
30M23165 Front Shock. Includes 30 and 32 to 33Front Shock. Includes 30 and 32 to 33
-
30M23182 Front Shock. SUV 600, EuropeFront Shock. SUV 600, Europe
-
31M25061 SpringSpring
-
31M25066 Spring. SUV 600, EuropeSpring. SUV 600, Europe
-
32M230076 Spring StopperSpring Stopper
-
33M230078 CamCam
-
34605251768 Swing Arm Weld RHSwing Arm Weld RH
-
34605251767 Swing Arm Weld LH BSwing Arm Weld LH B
-
35605153775 Plastic Ski Ass'y. Includes 35 to 36Plastic Ski Ass'y. Includes 35 to 36
-
36505070003 CushionCushion
-
37505070963 Handle, BlackHandle, Black
-
38605352643 Carbide KitCarbide Kit
-
39207085044 Hex Screw M8 X 50Hex Screw M8 X 50
-
40M40264 Hex Screw M8 X 90Hex Screw M8 X 90
-
41234081410 Flat Washer 8 mmFlat Washer 8 mm
-
42232581414 Hex Elastic Nut M8Hex Elastic Nut M8
-
43605348458 Ski StopperSki Stopper
-
44506133300 SpacerSpacer
-
45M40225 Hex Screw M10 X 140Hex Screw M10 X 140
-
46M28056 CapCap
-
47M40901 Hex Screw. SUV 600, Canada / U.S.AHex Screw. SUV 600, Canada / U.S.A
-
48M20037 Washer. SUV 600, Canada / U.S.AWasher. SUV 600, Canada / U.S.A
-
49605153964 Ski Liner. SUV 600, Canada / U.S.ASki Liner. SUV 600, Canada / U.S.A
-
50219700417 Synthetic Grease, 400 GSynthetic Grease, 400 G
-
51293550030 Grease, Super LubeGrease, Super Lube
