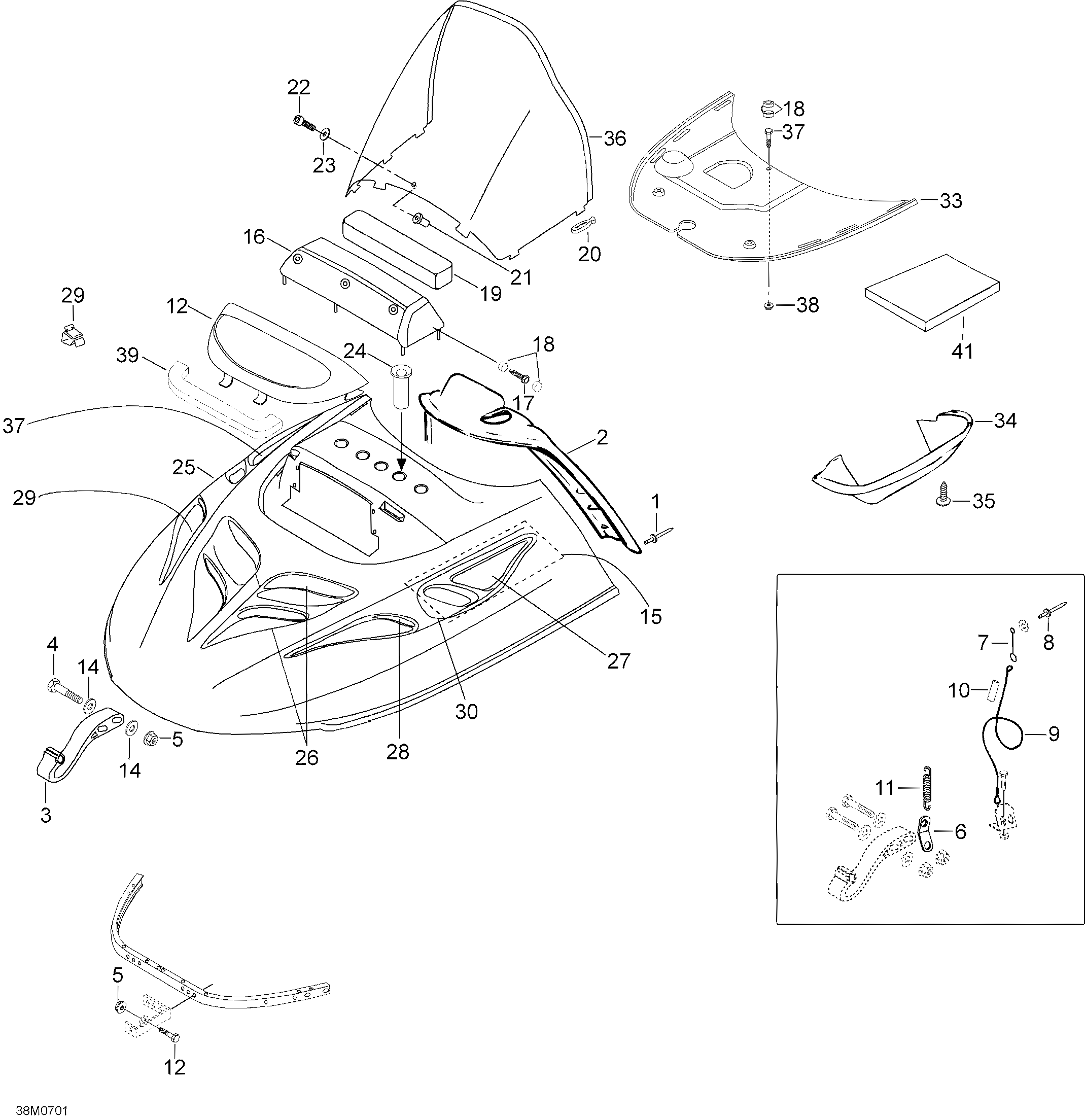

09- Hood 600 SUV для BRP Ski-Doo Skandic SUV 600 - 2007
-
№АртикулНазвание
-
1M36036 Rivet-BlackRivet-Black
-
2605148420 Dash. SUV 600Dash. SUV 600
-
3M5343075 HingeHinge
-
4M40193 ScrewScrew
-
5M33200 Nut M6Nut M6
-
6M5443123 Spring PlateSpring Plate
-
7M5446948 Cable Keeper. SUV 600Cable Keeper. SUV 600
-
8M36005 RivetRivet
-
9M5342674 Retainer Cable. SUV 600Retainer Cable. SUV 600
-
10M39023 HousingHousing
-
11M5442675 SpringSpring
-
12605252351 Lamp MoldingLamp Molding
-
13M40084 Screw M6 X 45Screw M6 X 45
-
14M20009 Washer 6.4 Din 9021Washer 6.4 Din 9021
-
15M44001 Sheet ReflectionSheet Reflection
-
16605149010 Intake CoverIntake Cover
-
17M40901 Hex ScrewHex Screw
-
18M282000 CoverCover
-
19605349056 FilterFilter
-
20570023800 Windshield LatchWindshield Latch
-
21M28055 Welded NutWelded Nut
-
22M40156 ScrewScrew
-
23M20008 Washer 5 mmWasher 5 mm
-
24605449084 Short TubeShort Tube
-
25605149606 Hood Ass'y. SUV 600 (Yellow), Includes 46 to 51Hood Ass'y. SUV 600 (Yellow), Includes 46 to 51
-
25605150366 Hood Ass'y. SUV 600 (Black), Includes 46 to 51Hood Ass'y. SUV 600 (Black), Includes 46 to 51
-
25605148694 Hood Ass'y. SUV 600 (Black), Includes 46 to 51, EuropeHood Ass'y. SUV 600 (Black), Includes 46 to 51, Europe
-
26M5142669 Front GrillFront Grill
-
27M5242899 LH Upper Grill. SUV 600LH Upper Grill. SUV 600
-
27M5242671 RH Upper GrillRH Upper Grill
-
28M5242672 RH Lower GrillRH Lower Grill
-
28M5342673 LH Lower GrillLH Lower Grill
-
29414227300 ClipClip
-
30M5342990 RH Cover. SUV 600RH Cover. SUV 600
-
31M5343408 LH Cover. SUV 600LH Cover. SUV 600
-
32M5343409 Fan Cover. SUV 600Fan Cover. SUV 600
-
33M5246742 Air DuctAir Duct
-
35414644300 DartDart
-
36M5147892 WindshieldWindshield
-
37M40179 Screw M5X25Screw M5X25
-
38M33062 Nut M5Nut M5
-
39605349151 Headlight Foam Seal. SUV 600Headlight Foam Seal. SUV 600
-
40605450205 Support. SUV 600Support. SUV 600
-
41414631900 Acoustic FoamAcoustic Foam
