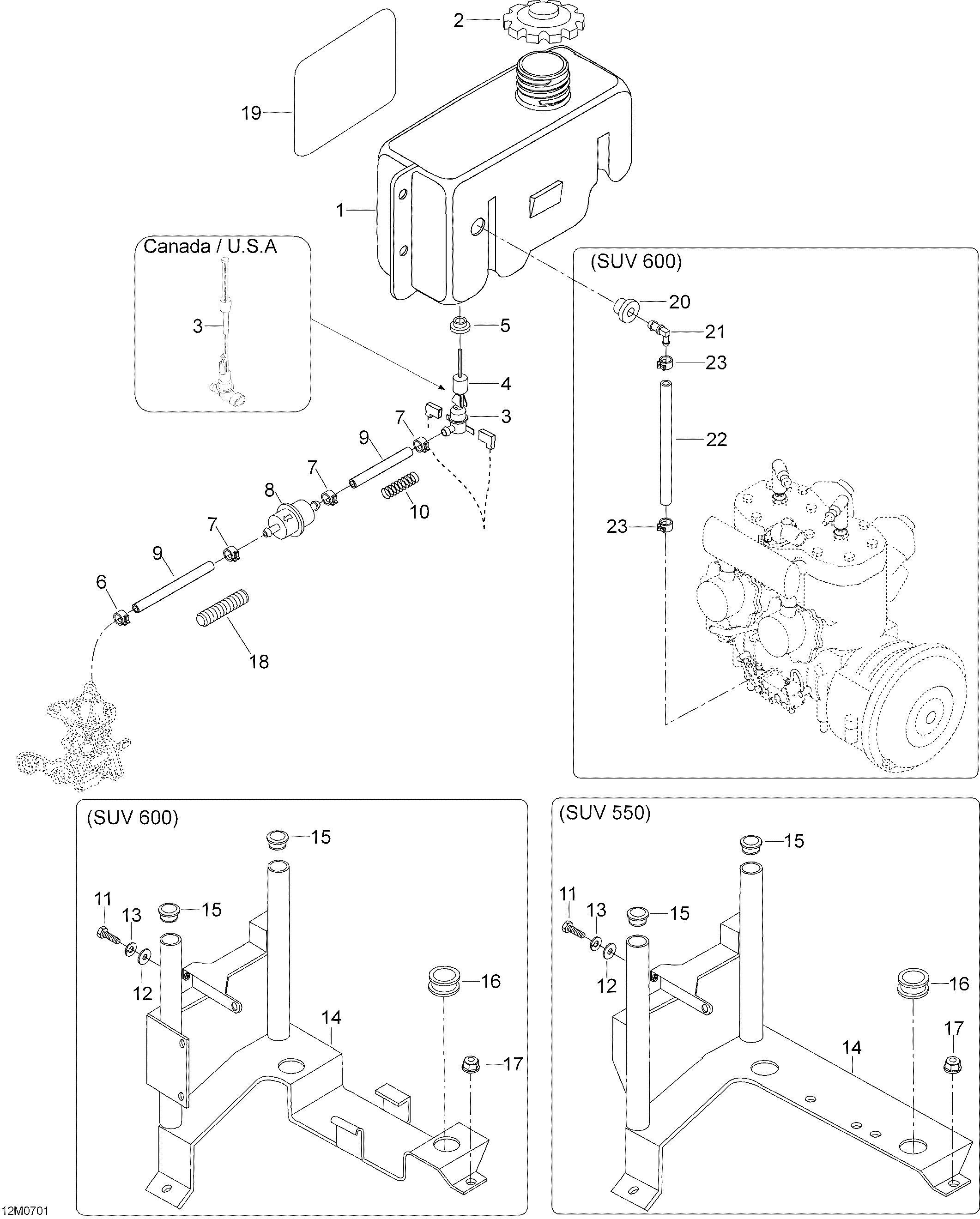

02- Oil System 600 SUV для BRP Ski-Doo Skandic SUV 600 - 2007
-
№АртикулНазвание
-
1M5146370 Oil Tank. SUV 600Oil Tank. SUV 600
-
2519000044 CapCap
-
3414681800 Level Switch. Canada / U.S.ALevel Switch. Canada / U.S.A
-
3414681800 Level Switch. EuropeLevel Switch. Europe
-
4414681900 Float. EuropeFloat. Europe
-
5570023000 Insulating RingInsulating Ring
-
6414420700 Spring ClipSpring Clip
-
7414415200 Universal Spring ClampUniversal Spring Clamp
-
8414536500 FilterFilter
-
9415080700 LineLine
-
10M25005 SpringSpring
-
11M40322 ScrewScrew
-
12M20009 Washer 6.4 Din 9021Washer 6.4 Din 9021
-
13234161471 Lock Washer M6, BlackLock Washer M6, Black
-
14M5246593 Oil Tank Support. SUV 600Oil Tank Support. SUV 600
-
15M28136 PlugPlug
-
16M5446766 Grommet. SUV 600Grommet. SUV 600
-
17M33200 Nut M6Nut M6
-
18M28015 HousingHousing
-
19M5443578 Reflecting Sheet. SUV 600Reflecting Sheet. SUV 600
-
20570135100 Grommet. SUV 600Grommet. SUV 600
-
21414580700 Elbow Male Connector. SUV 600Elbow Male Connector. SUV 600
-
22M39004 Hose. SUV 600Hose. SUV 600
-
23414554800 Spring Clamp. SUV 600Spring Clamp. SUV 600
