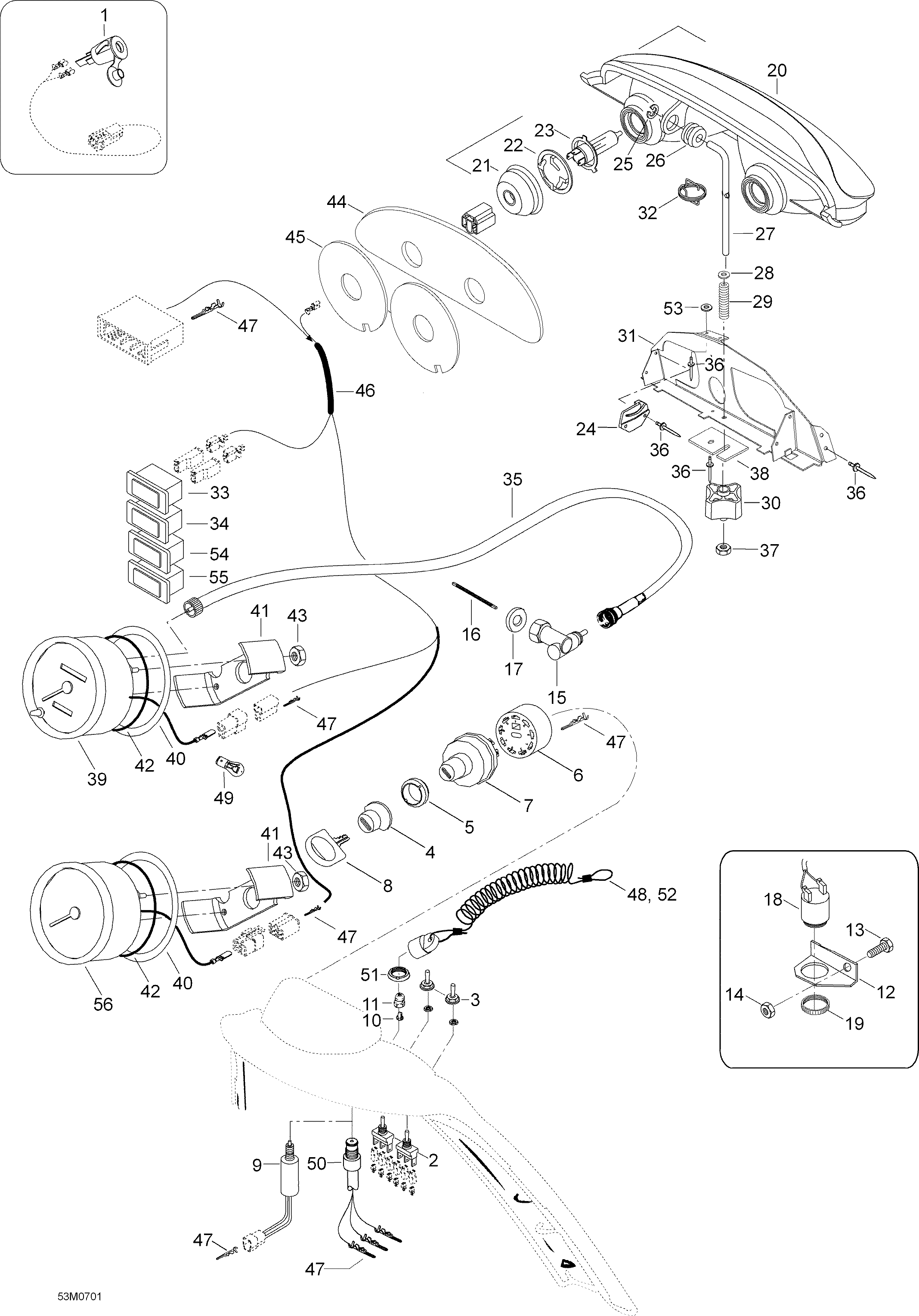

10- Electrical Accessories 600 SUV для BRP Ski-Doo Skandic SUV 600 - 2007
![](/wa-data/public/shop/sheme/bombardier/ski-doo/c1ad5024-d38b-4705-8fb4-a6e96d3d5964.png)
-
№АртикулНазвание
-
1M42026 Current OutletCurrent Outlet
-
2410107300 Switch (Heating Grip)Switch (Heating Grip)
-
3515175281 Switch CoverSwitch Cover
-
4570013700 Switch BootSwitch Boot
-
5410112100 Face NutFace Nut
-
6572150700 Female Terminal Housing, 9 CircuitsFemale Terminal Housing, 9 Circuits
-
7410113602 Ignition SwitchIgnition Switch
-
8414991700 Blank KeyBlank Key
-
12M549459 SupportSupport
-
13207161644 Hex Screw M6 X 16Hex Screw M6 X 16
-
14M33200 Nut M6Nut M6
-
15M35021 Drive AngleDrive Angle
-
16M45009 Square Pin-SpeedometerSquare Pin-Speedometer
-
17M5444186 WasherWasher
-
18414792102 Back-Up AlarmBack-Up Alarm
-
19414805101 Plastic NutPlastic Nut
-
20515176311 Halogen Headlamp Ass'y. Includes 20 to 23Halogen Headlamp Ass'y. Includes 20 to 23
-
21410607100 Protector CapProtector Cap
-
22515175910 Bulb HolderBulb Holder
-
23410504401 Halogen BulbHalogen Bulb
-
24517289300 RH SupportRH Support
-
24517289400 LH SupportLH Support
-
25732610072 Push NutPush Nut
-
26415100800 GrommetGrommet
-
27M5448100 Adjuster RodAdjuster Rod
-
28234061410 Flat Washer 6 mmFlat Washer 6 mm
-
29415100600 SpringSpring
-
30515175548 HandleHandle
-
31M5248092 SupportSupport
-
32M5445737 SpringSpring
-
33515175726 Pilot Lamp, HeadlampPilot Lamp, Headlamp
-
34515175728 Pilot Lamp, Oil Level/BrakePilot Lamp, Oil Level/Brake
-
35M5344162 Speedometer CableSpeedometer Cable
-
36M36005 RivetRivet
-
37232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
38M5448320 Washer 6mmWasher 6mm
-
39605152889 Speedometer Kmh/mphSpeedometer Kmh/mph
-
40517258500 WasherWasher
-
40517258500 Washer. SUV 600, EuropeWasher. SUV 600, Europe
-
41414806500 Case HolderCase Holder
-
41414806500 Case Holder. SUV 600, EuropeCase Holder. SUV 600, Europe
-
42414807100 O-RingO-Ring
-
42414807100 O-Ring. SUV 600, EuropeO-Ring. SUV 600, Europe
-
43M33062 Nut M5Nut M5
-
43M33062 Nut M5. SUV 600, EuropeNut M5. SUV 600, Europe
-
44M5247817 FoamFoam
-
45M5447818 Plastic PlatePlastic Plate
-
47M42603 Male TerminalMale Terminal
-
48515151500 Cap Ass'YCap Ass'Y
-
49410504200 Instrumentation BulbInstrumentation Bulb
-
50515166800 Terminal Ass'Y. SUV 600Terminal Ass'Y. SUV 600
-
51278000508 Safety Switch Nut. SUV 600Safety Switch Nut. SUV 600
-
52515176446 DESS Cap. SUV 600DESS Cap. SUV 600
-
53M20008 Washer 5 mm. SUV 600Washer 5 mm. SUV 600
-
54410109700 Pilot Lamp, Engine Temperature. SUV 600Pilot Lamp, Engine Temperature. SUV 600
-
55605450484 Pilot Lamp D.e.s.s.. SUV 600Pilot Lamp D.e.s.s.. SUV 600
-
56605152890 Tachometer. SUV 600, EuropeTachometer. SUV 600, Europe
