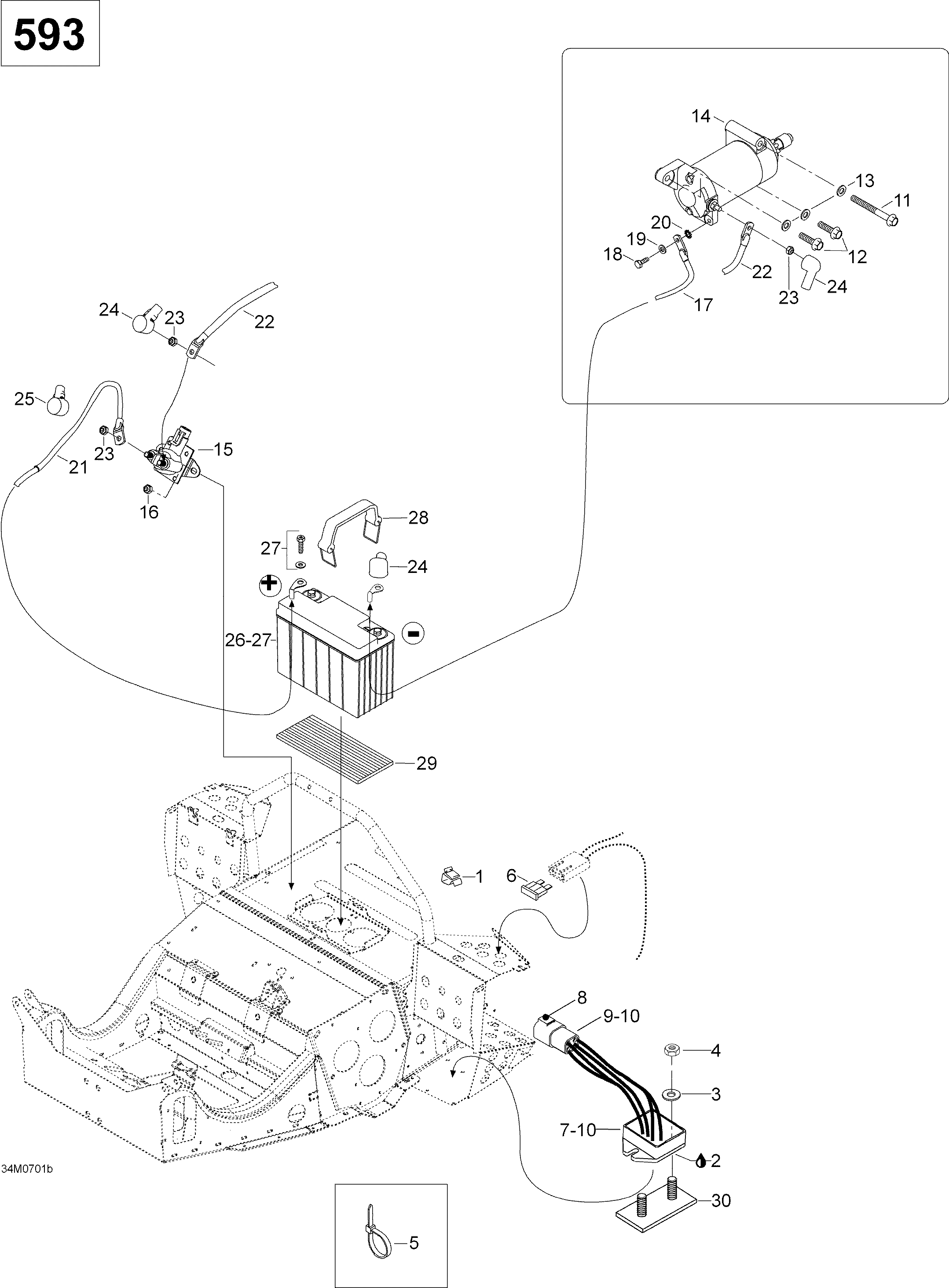

04- Electric Starter 600 SUV для BRP Ski-Doo Skandic SUV 600 - 2007
-
№АртикулНазвание
-
1414227300 ClipClip
-
2413707500 Grease Tube Lmz, 400 GGrease Tube Lmz, 400 G
-
3M20009 Washer 6.4 Din 9021Washer 6.4 Din 9021
-
4232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
5414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
6409003900 Fuse, 20 AmperesFuse, 20 Amperes
-
7515175939 Voltage Regulator Ass'y. Includes 7 to 10Voltage Regulator Ass'y. Includes 7 to 10
-
8278001477 Female Housing, 4 CircuitsFemale Housing, 4 Circuits
-
9515175568 Male TerminalMale Terminal
-
10278001478 (Female) Secondary Lock (4 Circuits) (Deutsch)(Female) Secondary Lock (4 Circuits) (Deutsch)
-
11207587544 Hex Flanged Screw M8 X 75, Scotch GripHex Flanged Screw M8 X 75, Scotch Grip
-
12207583044 Hex Flanged Screw M8 X 30, Scotch GripHex Flanged Screw M8 X 30, Scotch Grip
-
13250200008 Flat Washer 8 mmFlat Washer 8 mm
-
14515176133 Electric Starter Ass'yElectric Starter Ass'y
-
15278001802 Relay StarterRelay Starter
-
16M33200 Nut M6Nut M6
-
17M5446597 Battery WireBattery Wire
-
18207361644 Hex Screw M6 X 16, Scotch GripHex Screw M6 X 16, Scotch Grip
-
19234061410 Flat Washer 6 mmFlat Washer 6 mm
-
20M20017 Serrated Lock WasherSerrated Lock Washer
-
21M5348359 Battery WireBattery Wire
-
22232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
23M33010 Nut Elastic M6Nut Elastic M6
-
24570151000 Protection CapProtection Cap
-
25278001771 Protector CapProtector Cap
-
26410301203 Battery, 18 AmperesBattery, 18 Amperes
-
27295500849 Battery Fastener KitBattery Fastener Kit
-
28515175475 Battery StrapBattery Strap
-
29605350237 Battery CarpetBattery Carpet
-
30M5448286 PlatePlate
