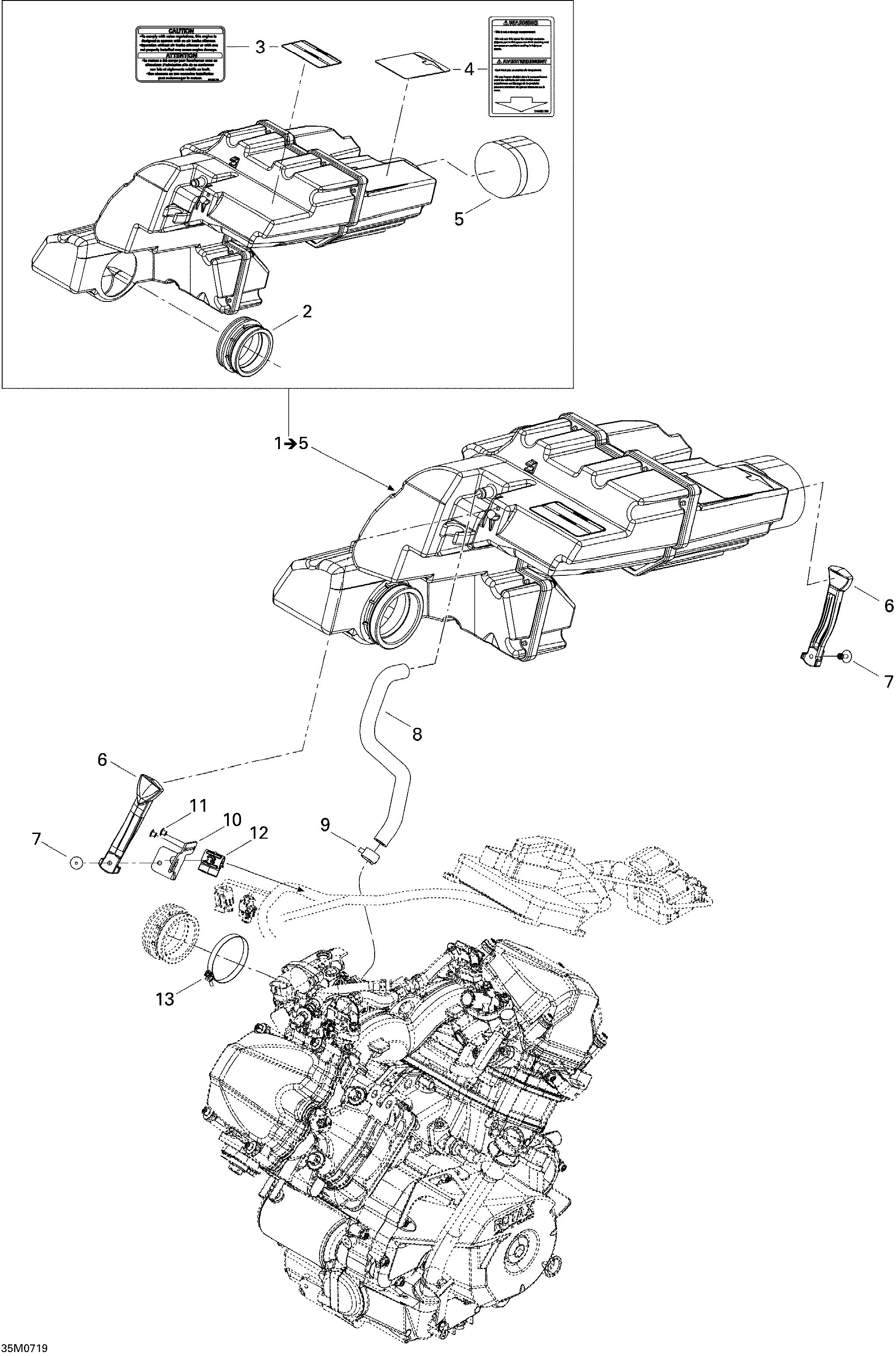

02- Air Intake System для BRP Ski-Doo Skandic Tundra V-800 - 2007
-
№АртикулНазвание
-
1508000488 Air Intake Silencer Ass'y. Includes 1 to 5Air Intake Silencer Ass'y. Includes 1 to 5
-
2508000491 Air Intake AdaptorAir Intake Adaptor
-
3516002715 Caution Label, Air IntakeCaution Label, Air Intake
-
4516003292 Warning LabelWarning Label
-
5508000508 Air FilterAir Filter
-
6517302448 Panel LatchPanel Latch
-
7293150108 Pop Rivet 3/16''Pop Rivet 3/16''
-
8508000510 Cranckcase Vent HoseCranckcase Vent Hose
-
9293650110 Norma ClampNorma Clamp
-
10508000518 SupportSupport
-
11390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
12275500528 Hose RetainerHose Retainer
-
13508000346 Gemi ClampGemi Clamp
