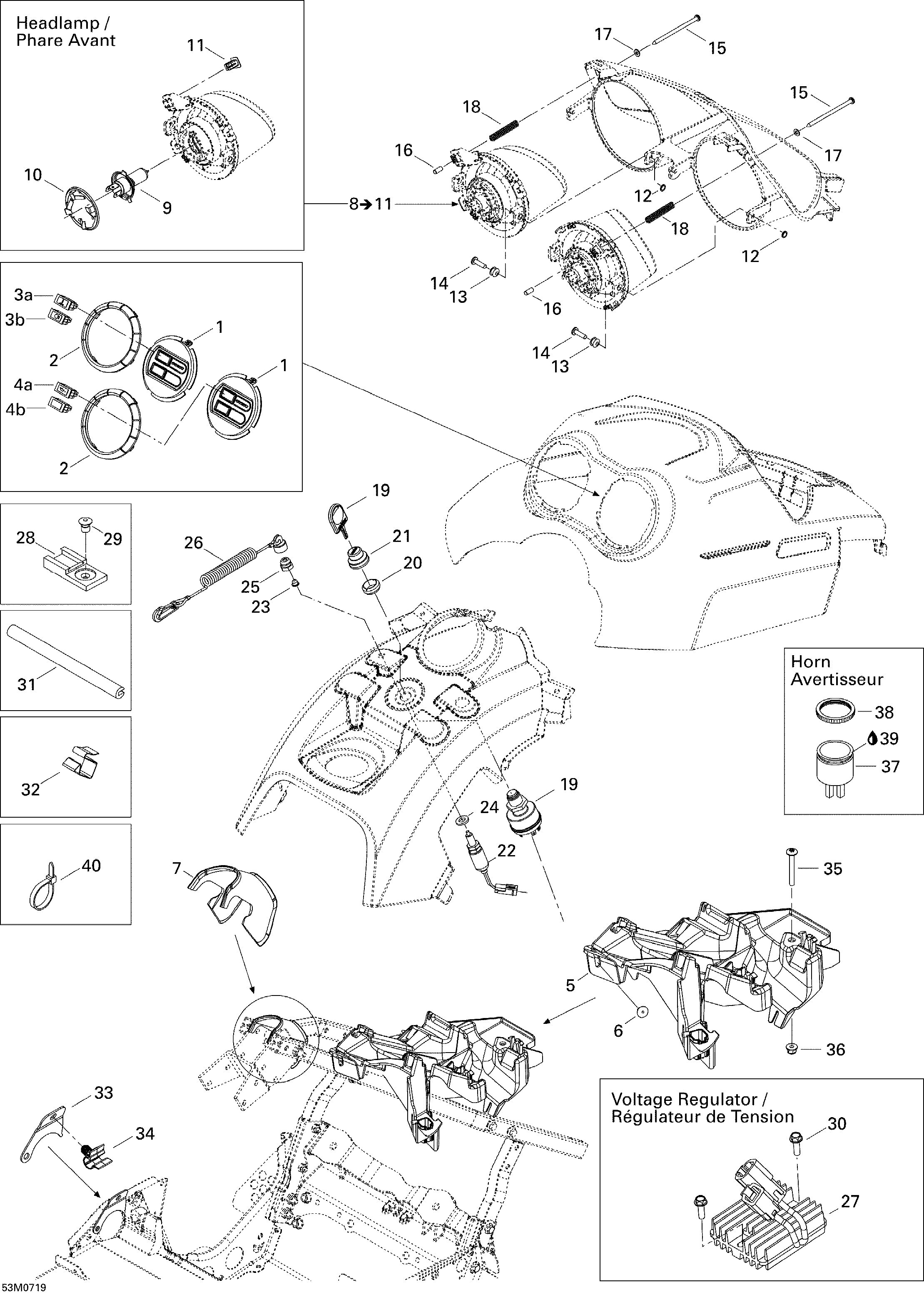

10- Electrical Accessories для BRP Ski-Doo Skandic Tundra V-800 - 2007
-
№АртикулНазвание
-
1515176411 Gauge and Bottom. Includes 1 and 2Gauge and Bottom. Includes 1 and 2
-
2515176242 Gauge RingGauge Ring
-
3a515175727 Pilot LampPilot Lamp
-
3b515175726 Pilot Lamp, HeadlampPilot Lamp, Headlamp
-
4a515175728 Pilot Lamp, Oil Level/BrakePilot Lamp, Oil Level/Brake
-
4b515176438 Pilot LampPilot Lamp
-
5515176336 PlatePlate
-
6293150103 Pop RivetPop Rivet
-
7515176321 ProtectorProtector
-
8515176168 RH Headlamp Ass'y. Includes 8 to 11RH Headlamp Ass'y. Includes 8 to 11
-
8515176169 LH Headlamp Ass'y. Includes 8 to 11LH Headlamp Ass'y. Includes 8 to 11
-
9515176274 Halogen Bulb, 60/55 W, 12 VHalogen Bulb, 60/55 W, 12 V
-
10515176385 Bulb HolderBulb Holder
-
11515176339 Plastic InsertPlastic Insert
-
12389804300 Push NutPush Nut
-
13515176289 Headlamp BushingHeadlamp Bushing
-
14390906200 Flat Head Steel RivetFlat Head Steel Rivet
-
15250000244 Phillips Screw #8 X 3''Phillips Screw #8 X 3''
-
16515176370 CapCap
-
17234051600 Flat Washer M5Flat Washer M5
-
18515176353 SpringSpring
-
19515176484 Ignition SwitchIgnition Switch
-
20410112100 Face NutFace Nut
-
21570013700 Switch BootSwitch Boot
-
22515175653 Brake SwitchBrake Switch
-
23570151100 Plunger CapPlunger Cap
-
25515145900 Switch NutSwitch Nut
-
26515176463 Cap Ass'YCap Ass'Y
-
27515175968 Voltage RegulatorVoltage Regulator
-
28515175917 ClipClip
-
29293150037 Rivet Avdel 3/16''Rivet Avdel 3/16''
-
30210262080 Hex. Forming Screw M6 X 20Hex. Forming Screw M6 X 20
-
31509000263 TrimTrim
-
32414227300 ClipClip
-
33515176465 PlatePlate
-
34275500528 Retainer HoseRetainer Hose
-
35250000239 Torx Truss Screw M6 X 50Torx Truss Screw M6 X 50
-
36233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
37515176035 HornHorn
-
38414805101 Plastic NutPlastic Nut
-
39296000309 Sealant Silicone, ClearSealant Silicone, Clear
-
40414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
40293750002 Tie-Rap 130 mmTie-Rap 130 mm
-
40293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
40293750009 Tie-Rap 160 mmTie-Rap 160 mm
