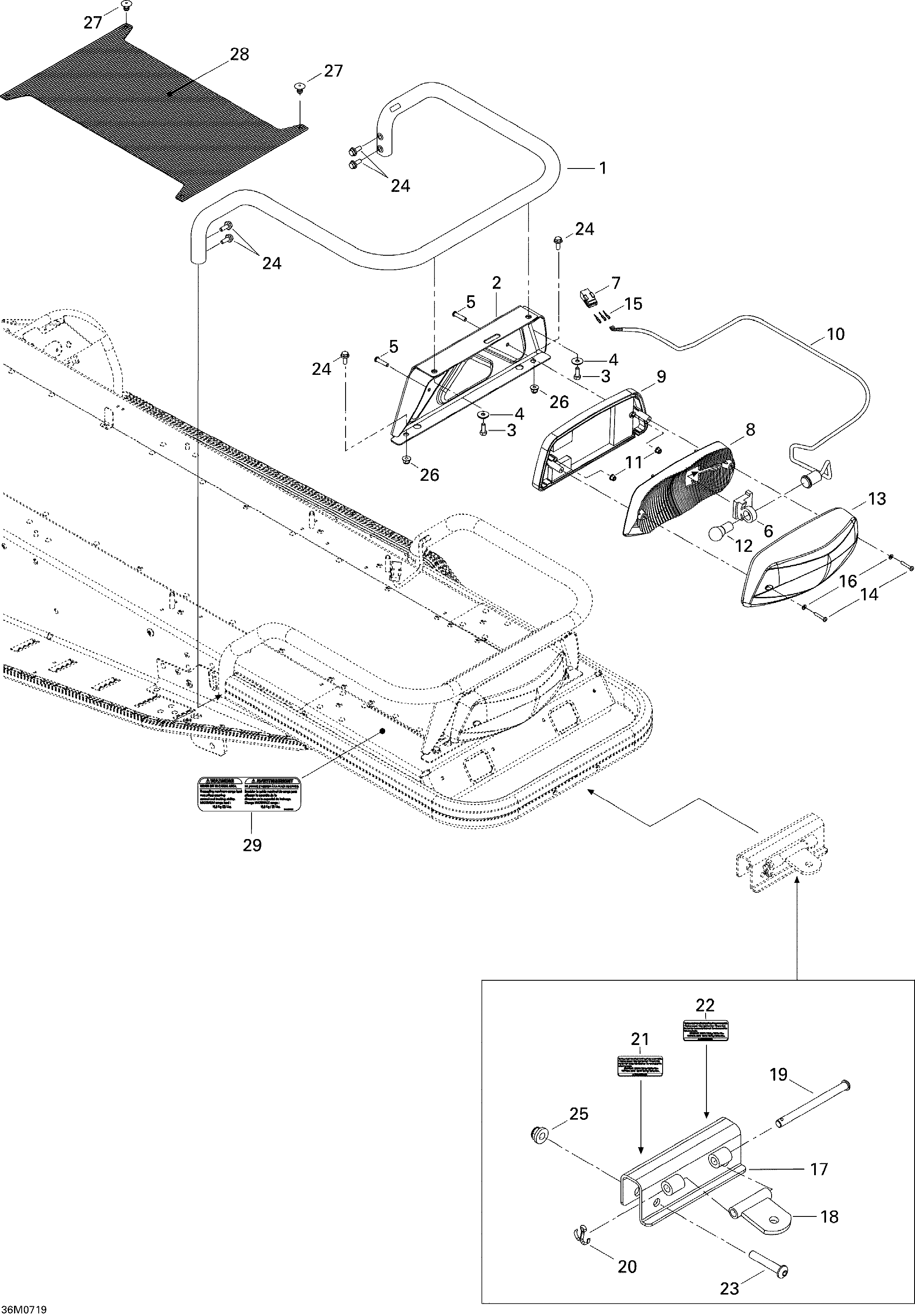

09- Luggage Rack для BRP Ski-Doo Skandic Tundra V-800 - 2007
-
№АртикулНазвание
-
1511000422 Luggage RackLuggage Rack
-
2511000187 Rear Light SupportRear Light Support
-
3207161644 Hex Screw M6 X 16Hex Screw M6 X 16
-
4391302000 Flat WasherFlat Washer
-
5205452560 Socket Screw M5 X 25Socket Screw M5 X 25
-
6511000431 Bulb SupportBulb Support
-
7515175494 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
8510004442 ReflectorReflector
-
9515176272 Rear Light HousingRear Light Housing
-
10511000448 Bulb SocketBulb Socket
-
11233251414 Hex Flanged Elastic Nut M5Hex Flanged Elastic Nut M5
-
12410504100 Tail Light BulbTail Light Bulb
-
13511000315 LensLens
-
14209632580 Phillips Tapping Screw 3.9 X 25Phillips Tapping Screw 3.9 X 25
-
15515175232 Male TerminalMale Terminal
-
16414516400 WasherWasher
-
17511000524 hitch, blackhitch, black
-
18517008700 Welded Hitch PlateWelded Hitch Plate
-
19511000520 clevis pinclevis pin
-
20371800200 Cotter PinCotter Pin
-
21516003037 Security LabelSecurity Label
-
22516003038 Security Label, FrenchSecurity Label, French
-
23205484546 Socket Head Screw M8 X 45Socket Head Screw M8 X 45
-
24207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
25233281414 Hex Flanged Elastic Nut M8Hex Flanged Elastic Nut M8
-
26233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
27293150103 Pop RivetPop Rivet
-
28511000496 CarpetCarpet
-
29516003039 Maximum Cargo Load LabelMaximum Cargo Load Label
