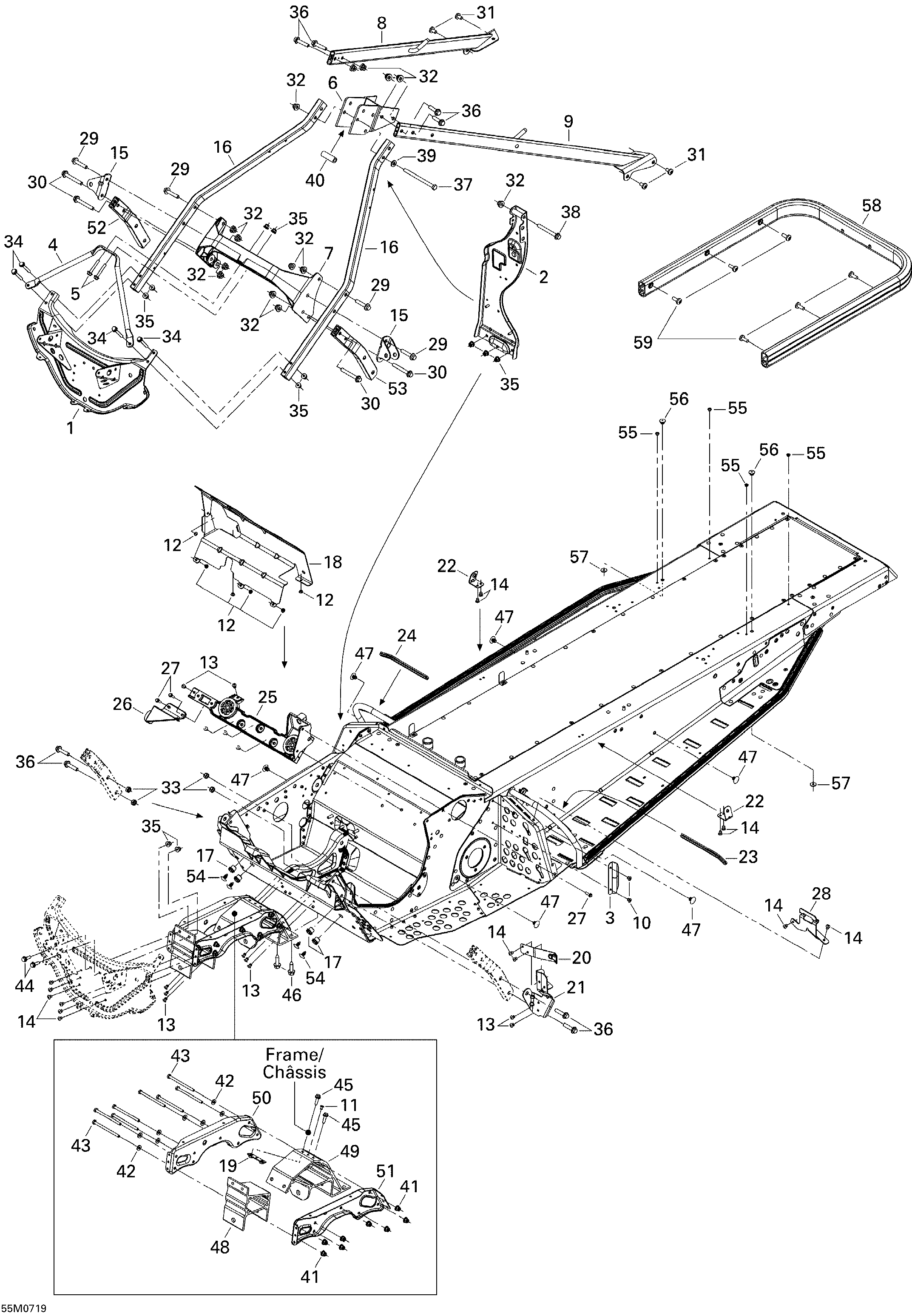

09- Frame and Components для BRP Ski-Doo Skandic Tundra V-800 - 2007
-
№АртикулНазвание
-
1518324216 Front PlateFront Plate
-
2518325212 Upper Column SupportUpper Column Support
-
3518317504 Cable ProtectorCable Protector
-
4518325036 BraceBrace
-
5207664044 Hex Flanged Screw M6 X 40Hex Flanged Screw M6 X 40
-
6518324196 Bracket BlockBracket Block
-
7518324808 Upper Cross MemberUpper Cross Member
-
8518324480 RH MemberRH Member
-
9518325193 LH MemberLH Member
-
10390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
11390402300 Pop Rivet 3/16''Pop Rivet 3/16''
-
12390402400 Pop Rivet 3/16''Pop Rivet 3/16''
-
13390909100 Avex RivetAvex Rivet
-
14390909200 Avex RivetAvex Rivet
-
15518324202 Shock BracketShock Bracket
-
16518325074 Upper TubeUpper Tube
-
17293450166 InsertInsert
-
18514054097 Heat ShieldHeat Shield
-
19518324204 Holder PlateHolder Plate
-
20518325235 Guard Belt Bracket, BlackGuard Belt Bracket, Black
-
21518325075 Guard Belt SupportGuard Belt Support
-
22518324688 Trunk BracketTrunk Bracket
-
23271000110 Protection TrimProtection Trim
-
24271000110 Protection TrimProtection Trim
-
25518324902 LH Rear Engine SupportLH Rear Engine Support
-
26518324903 RH Rear Engine SupportRH Rear Engine Support
-
27207551644 Hex. Flanged Screw M5 x 16, Scotch GripHex. Flanged Screw M5 x 16, Scotch Grip
-
28518325077 Guard Belt BracketGuard Belt Bracket
-
29207684044 Hex Flanged Screw M8 X 40Hex Flanged Screw M8 X 40
-
30207686044 Hex. Flanged Screw M8 x 60Hex. Flanged Screw M8 x 60
-
31250000154 Torx Screw M8 X 13Torx Screw M8 X 13
-
32233281414 Hex Flanged Elastic Nut M8Hex Flanged Elastic Nut M8
-
33232581414 Hex Elastic Nut M8Hex Elastic Nut M8
-
34207664544 Flanged Hex Screw M6 X 45Flanged Hex Screw M6 X 45
-
35233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
36207683544 Hex Flanged Screw M8 X 35Hex Flanged Screw M8 X 35
-
37230081044 Hex Screw M8 X 110Hex Screw M8 X 110
-
38207687044 Hex Flanged Screw M8 X 70Hex Flanged Screw M8 X 70
-
39503189157 WasherWasher
-
40506150500 Housing BushingHousing Bushing
-
41233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
42250200039 Flat WasherFlat Washer
-
43207069044 Hex. Screw M6 X 90Hex. Screw M6 X 90
-
44207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
45207562044 Flanged Screw M6 X 20, Scotch GripFlanged Screw M6 X 20, Scotch Grip
-
46250000257 Cone Bolt, M8 X 30Cone Bolt, M8 X 30
-
47518321954 Fastener PanelFastener Panel
-
48518324019 Front Attachment, Front SuspensionFront Attachment, Front Suspension
-
49518324020 Rear Attachment, Front SuspensionRear Attachment, Front Suspension
-
50518324014 RH Lateral ReinforcementRH Lateral Reinforcement
-
51518324017 LH Lateral ReinforcementLH Lateral Reinforcement
-
52518324786 RH TubeRH Tube
-
53518324787 LH TubeLH Tube
-
54414644300 DartDart
-
55390402400 Pop Rivet 3/16''Pop Rivet 3/16''
-
56390910000 Pop Rivet 3/16''Pop Rivet 3/16''
-
57517124300 WasherWasher
-
58518325215 Rear BumperRear Bumper
-
59236282084 Hex Screw M8 X 20Hex Screw M8 X 20
