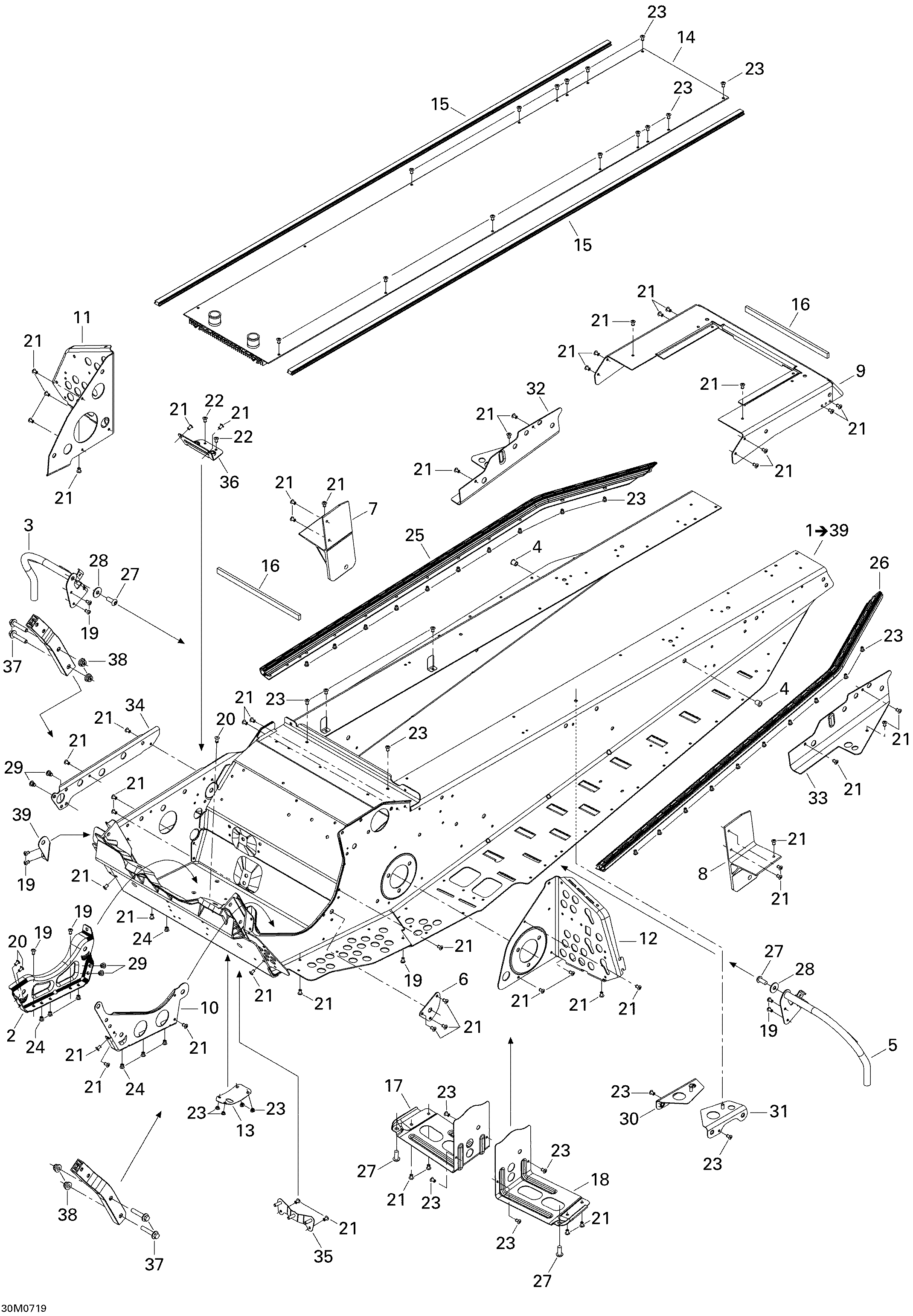

09- Frame для BRP Ski-Doo Skandic Tundra V-800 - 2007
-
№АртикулНазвание
-
1415129226 Frame 136''. Includes 1 to 39Frame 136''. Includes 1 to 39
-
2518323346 Engine Support, BlackEngine Support, Black
-
3518324162 RH Toe Hold SupportRH Toe Hold Support
-
4415107300 InsertInsert
-
5518324163 LH Toe Hold SupportLH Toe Hold Support
-
6518323507 Outer ReinforcementOuter Reinforcement
-
7518325343 RH Slide BracketRH Slide Bracket
-
8518325344 LH Slide BracketLH Slide Bracket
-
9518324831 Extention FrameExtention Frame
-
10518323995 Inner Reinforcement, BlackInner Reinforcement, Black
-
11518325196 RH Footrest ReinforcementRH Footrest Reinforcement
-
12518324527 LH Footrest ReinforcementLH Footrest Reinforcement
-
13518324169 PlatePlate
-
15415012300 Radiator ProtectorRadiator Protector
-
16293200104 GasketGasket
-
17518325345 RH Footrest Reinforcement, BlackRH Footrest Reinforcement, Black
-
18518325346 LH Footrest Reinforcement, BlackLH Footrest Reinforcement, Black
-
19390909200 Avex RivetAvex Rivet
-
20390909100 Avex RivetAvex Rivet
-
21390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
22390402300 Pop Rivet 3/16''Pop Rivet 3/16''
-
23390402400 Pop Rivet 3/16''Pop Rivet 3/16''
-
24390910300 Rivet HenrobRivet Henrob
-
25518324957 RH RollerRH Roller
-
26518324958 LH RollerLH Roller
-
27205982086 Socket Head Screw M8 X 20, Scotch GripSocket Head Screw M8 X 20, Scotch Grip
-
28234082410 Flat Washer 8 mmFlat Washer 8 mm
-
29293150096 RivetRivet
-
30518324385 RH Frame Reinforcement, BlackRH Frame Reinforcement, Black
-
31518324386 LH Frame Reinforcement, BlackLH Frame Reinforcement, Black
-
32518325039 RH Tunnel LinerRH Tunnel Liner
-
33518325040 LH Tunnel LinerLH Tunnel Liner
-
34518323328 RH Tunnel StiffenerRH Tunnel Stiffener
-
35518324599 HolderHolder
-
36518324207 Holder PlateHolder Plate
-
37207684044 Hex Flanged Screw M8 X 40Hex Flanged Screw M8 X 40
-
38233281414 Hex Flanged Elastic Nut M8Hex Flanged Elastic Nut M8
-
39518324906 RH SupportRH Support
