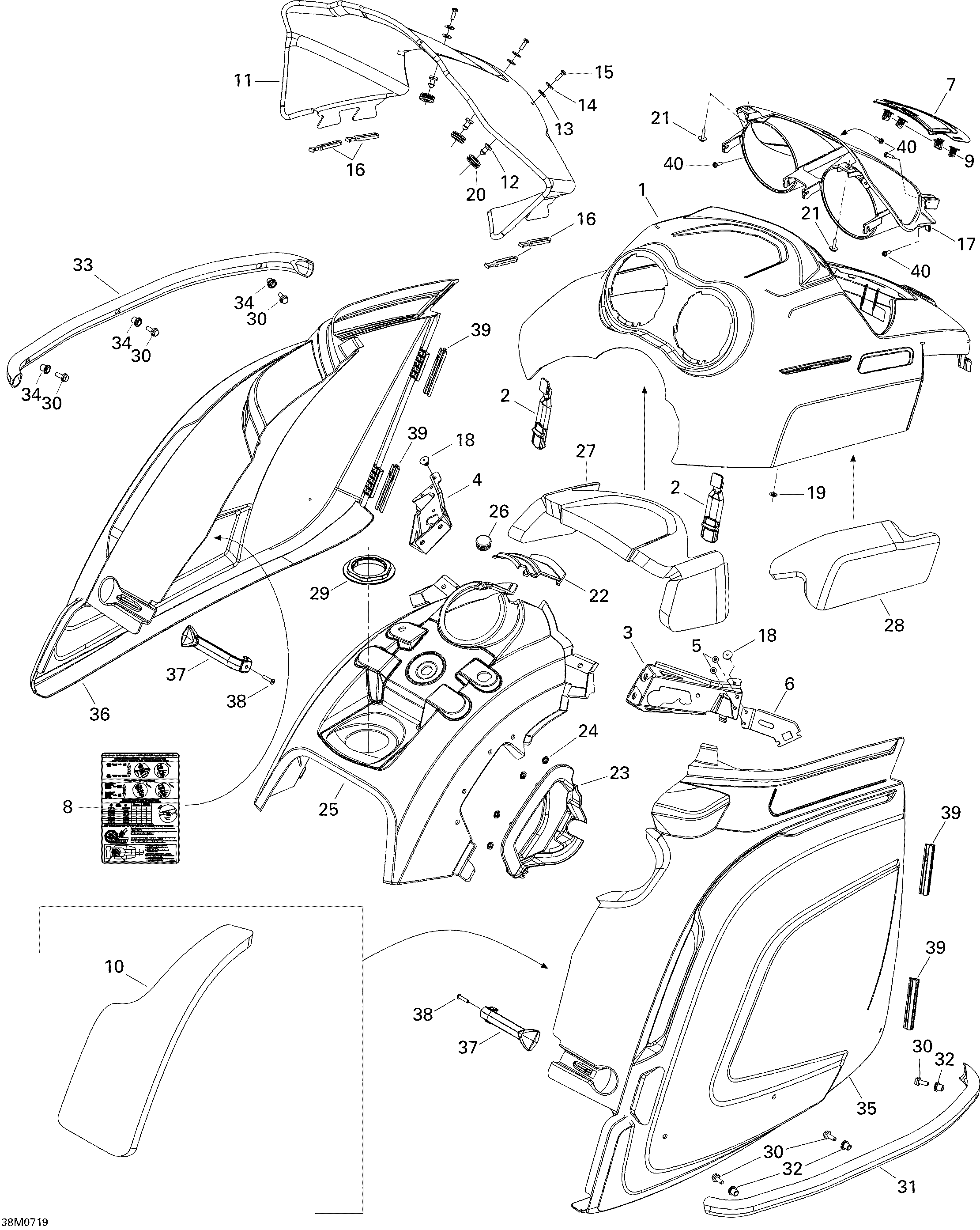

09- Hood для BRP Ski-Doo Skandic Tundra V-800 - 2007
-
№АртикулНазвание
-
1517303329 HoodHood
-
2517303518 LatchLatch
-
3517303662 RH BracketRH Bracket
-
4517303663 LH BracketLH Bracket
-
5390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
6517303517 BracketBracket
-
7517303331 Center Hood GrillCenter Hood Grill
-
8517303595 Suspension Adjustment DecalSuspension Adjustment Decal
-
9517302785 ClipClip
-
10517303457 RH Panel Foam, RearRH Panel Foam, Rear
-
11517303440 High WindshieldHigh Windshield
-
12517303439 KnobKnob
-
13250200024 Rubber Washer 5 mmRubber Washer 5 mm
-
14250200025 Washer M5Washer M5
-
15250000146 Truss Head Torx Screw K50 X 16Truss Head Torx Screw K50 X 16
-
16570023800 Windshield LatchWindshield Latch
-
17517303692 MouldingMoulding
-
18293150103 Pop RivetPop Rivet
-
19732610072 Push NutPush Nut
-
20517302841 GrommetGrommet
-
21250000113 Screw M4 X 16, Type K-40Screw M4 X 16, Type K-40
-
22517303458 Console CapConsole Cap
-
23517303589 RH ConsoleRH Console
-
24732610072 Push NutPush Nut
-
25517303641 Center ConsoleCenter Console
-
26706200474 CapCap
-
27517303664 Hood FoamHood Foam
-
28517303486 RH Hood FoamRH Hood Foam
-
29517302575 Console NutConsole Nut
-
30207561644 Hex Flanged Screw M6 X 16, Scotch GripHex Flanged Screw M6 X 16, Scotch Grip
-
31517303577 RH Side BumperRH Side Bumper
-
32415107300 InsertInsert
-
33517303578 LH Side BumperLH Side Bumper
-
34415107300 InsertInsert
-
35517303643 RH PanelRH Panel
-
36517303642 LH PanelLH Panel
-
37517302448 Panel LatchPanel Latch
-
38390410100 Pop Rivet 3/16''Pop Rivet 3/16''
-
39517302823 Hinge LockHinge Lock
-
40250000068 Hex Tapping Screw #8 X 5/8''Hex Tapping Screw #8 X 5/8''
