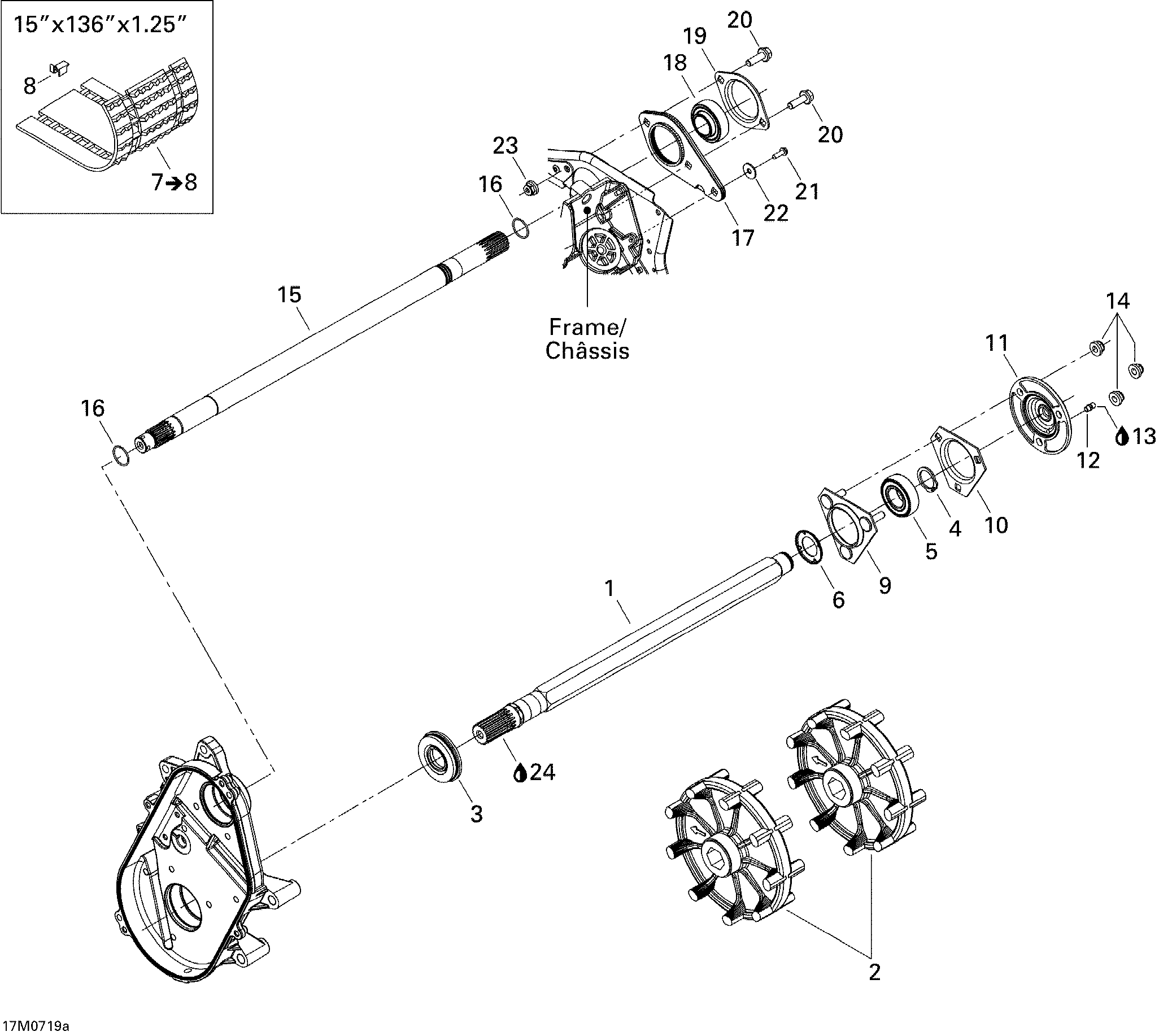

05- Drive System 1 для BRP Ski-Doo Skandic Tundra V-800 - 2007
-
№АртикулНазвание
-
1501027400 Drive AxleDrive Axle
-
2504151781 Sprocket, 9 TeethSprocket, 9 Teeth
-
3504151918 Oil Seal Ass'yOil Seal Ass'y
-
4371910200 CirclipCirclip
-
5504152009 Ball BearingBall Bearing
-
6501017400 Bearing ProtectorBearing Protector
-
7504152675 Track 16'' x 136'' x 1.25'' Ass'y. Includes 7 to 8Track 16'' x 136'' x 1.25'' Ass'y. Includes 7 to 8
-
8504152410 GuideGuide
-
9504151860 Bearing HousingBearing Housing
-
10501025000 FlangeFlange
-
11504152463 Speedo FlangeSpeedo Flange
-
12408200700 Grease FittingGrease Fitting
-
13219700417 Synthetic Grease, 400 GSynthetic Grease, 400 G
-
14233281414 Hex Flanged Elastic Nut M8Hex Flanged Elastic Nut M8
-
15504152292 Counter ShaftCounter Shaft
-
16371910000 CirclipCirclip
-
17504151968 SpacerSpacer
-
18504152535 Ball BearingBall Bearing
-
19501026900 FlangeFlange
-
20207582544 Hex Flanged Screw M8 X 25, Scotch GripHex Flanged Screw M8 X 25, Scotch Grip
-
21207551644 Hex. Flanged Screw M5 x 16, Scotch GripHex. Flanged Screw M5 x 16, Scotch Grip
-
22224061201 Flat WasherFlat Washer
-
23233281414 Hex Flanged Elastic Nut M8Hex Flanged Elastic Nut M8
-
24219700417 Synthetic Grease, 400 GSynthetic Grease, 400 G
