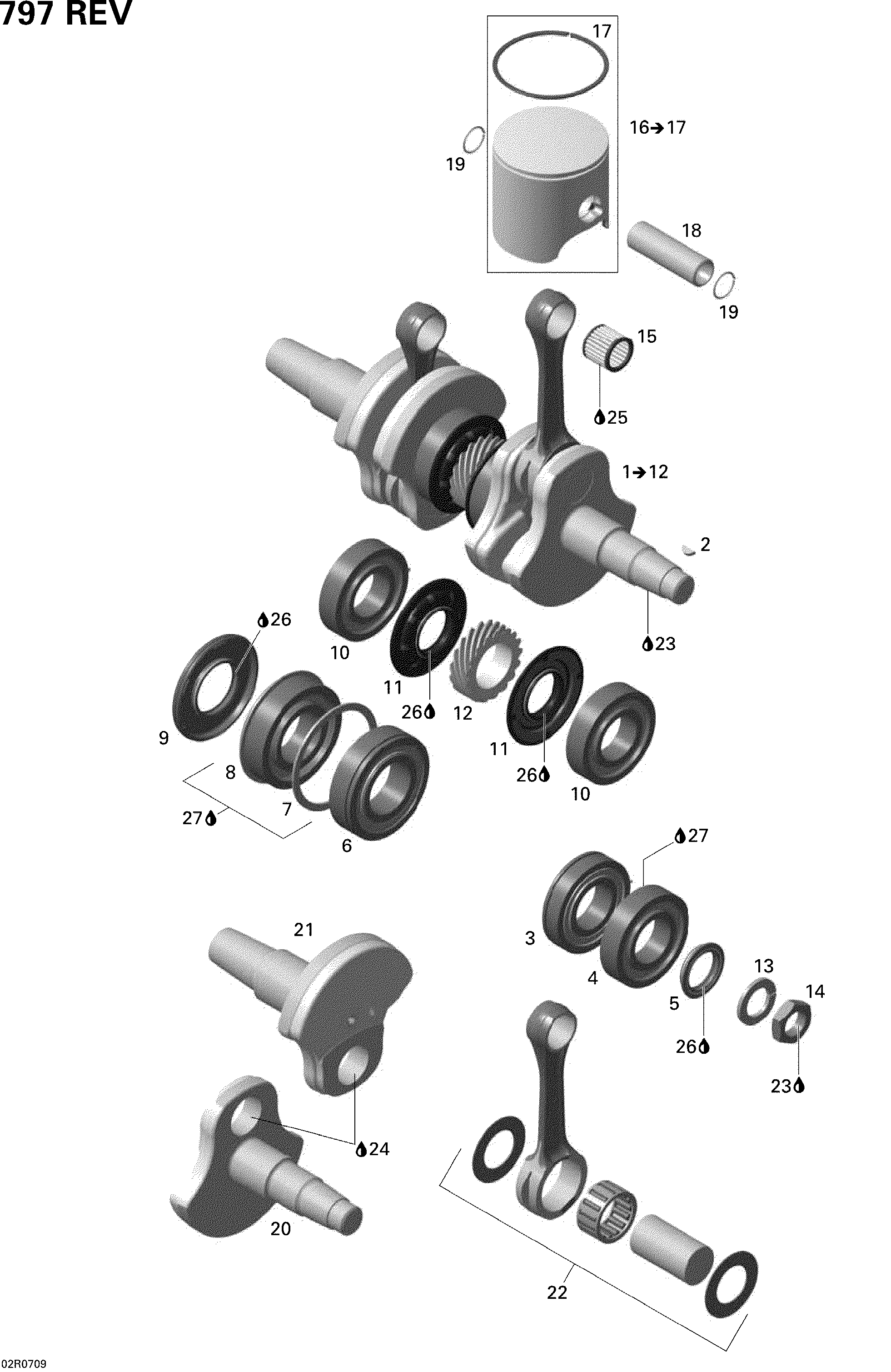

01- Crankshaft And Pistons для BRP Ski-Doo Summit XRS - 2007
-
№АртикулНазвание
-
1420890732 Crankshaft Ass'y. Includes 1 to 12Crankshaft Ass'y. Includes 1 to 12
-
2420246015 Woodruff KeyWoodruff Key
-
3420832633 Ball BearingBall Bearing
-
4420832575 Ball BearingBall Bearing
-
5420931792 Oil SealOil Seal
-
6420832602 Ball BearingBall Bearing
-
7420926190 WasherWasher
-
8420832700 Ball BearingBall Bearing
-
9420931285 Oil SealOil Seal
-
10420832575 Ball BearingBall Bearing
-
11420931455 Oil SealOil Seal
-
12420834565 Central GearCentral Gear
-
13420945759 Lock WasherLock Washer
-
14420842234 Hex. Nut M22Hex. Nut M22
-
15420832800 Needle BearingNeedle Bearing
-
16420890720 Piston Ass'y. Includes 16 to 17Piston Ass'y. Includes 16 to 17
-
17420815410 Semi-Trapez RingSemi-Trapez Ring
-
18420916480 Piston PinPiston Pin
-
19420845467 Piston CirclipPiston Circlip
-
22420890733 Rod Repair Kit, MAG SideRod Repair Kit, MAG Side
-
22420890734 Rod Repair Kit, PTO SideRod Repair Kit, PTO Side
-
23293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
24413711400 Loctite 648, 10 mlLoctite 648, 10 ml
-
25413802900 Injection Oil, 12 X 1 LiterInjection Oil, 12 X 1 Liter
-
26420899271 Petamo Grease, GHY133N, 400 GPetamo Grease, GHY133N, 400 G
-
27293550021 Isoflex Grease, 50 G, Topas NB52Isoflex Grease, 50 G, Topas NB52
