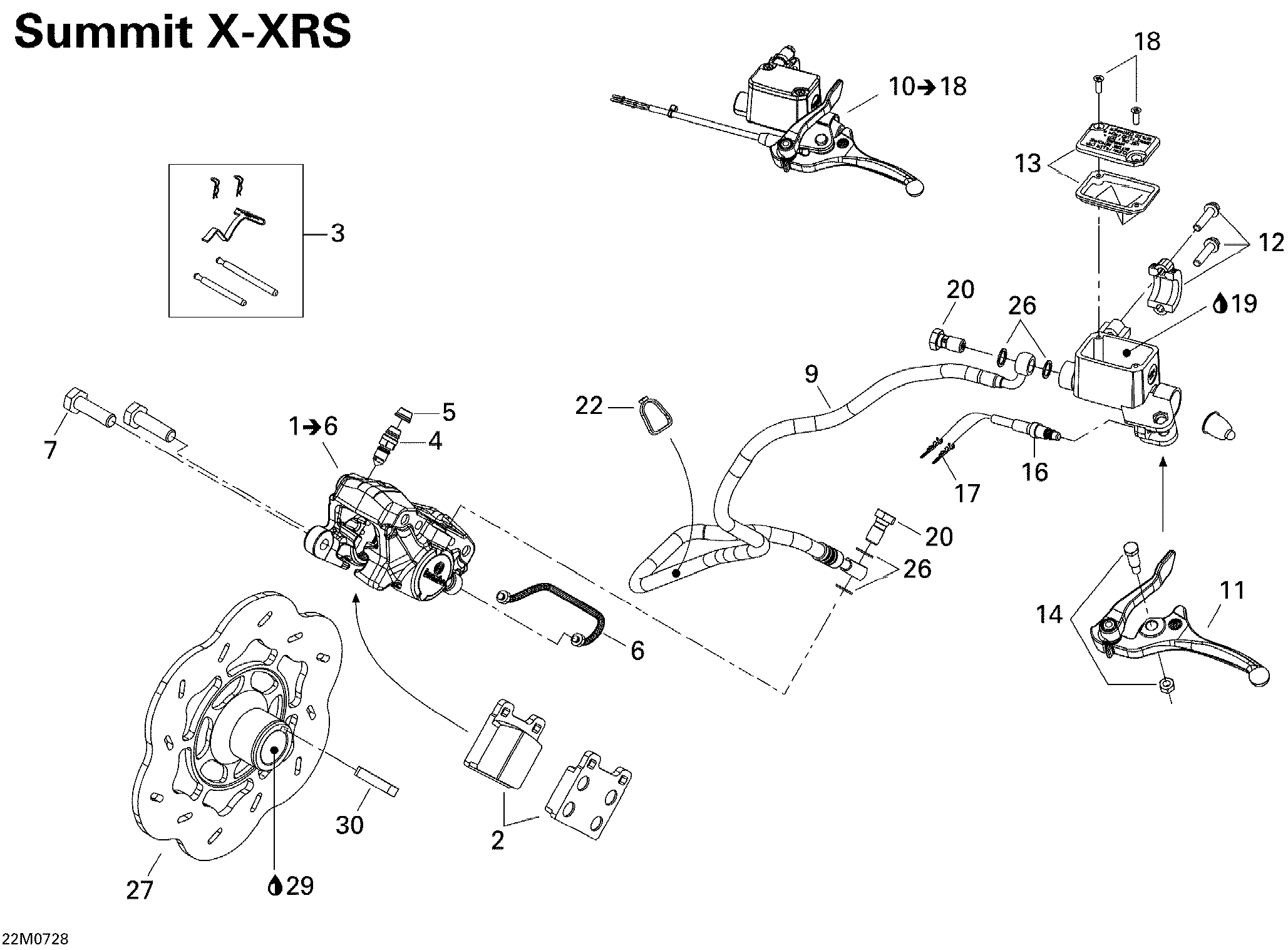

06- Hydraulic Brakes для BRP Ski-Doo Summit XRS - 2007
-
№АртикулНазвание
-
1507032414 Caliper. Includes 1 to 6Caliper. Includes 1 to 6
-
2415084600 Brake Pad KitBrake Pad Kit
-
3415128865 Kit, Pins, Retainers, SpringKit, Pins, Retainers, Spring
-
4414989800 Bleeder ScrewBleeder Screw
-
5414989700 BootBoot
-
6414989900 Rigid TubingRigid Tubing
-
7205503544 Socket Head Screw M10 X 35, Scotch GripSocket Head Screw M10 X 35, Scotch Grip
-
9507032397 HoseHose
-
10507032463 Master Cylinder. Includes 10 to 18Master Cylinder. Includes 10 to 18
-
11415129216 LeverLever
-
12415029800 Clamp Ass'yClamp Ass'y
-
13415029900 CapCap
-
14415030000 Pin Ass'yPin Ass'y
-
16507032366 MicroswitchMicroswitch
-
17515175232 Male TerminalMale Terminal
-
18216141260 Screw M4 X 12Screw M4 X 12
-
19293600063 Brake Fluid, SRF, DOT 4Brake Fluid, SRF, DOT 4
-
20414920500 Banjo BoltBanjo Bolt
-
22293750002 Tie-Rap 130 mmTie-Rap 130 mm
-
26414920600 Washer For Hose ConnectionWasher For Hose Connection
-
27507032395 Brake DiskBrake Disk
-
29293800070 Loctite 767, Antiseize Lubricant, 8 OzLoctite 767, Antiseize Lubricant, 8 Oz
-
30507021300 KeyKey
