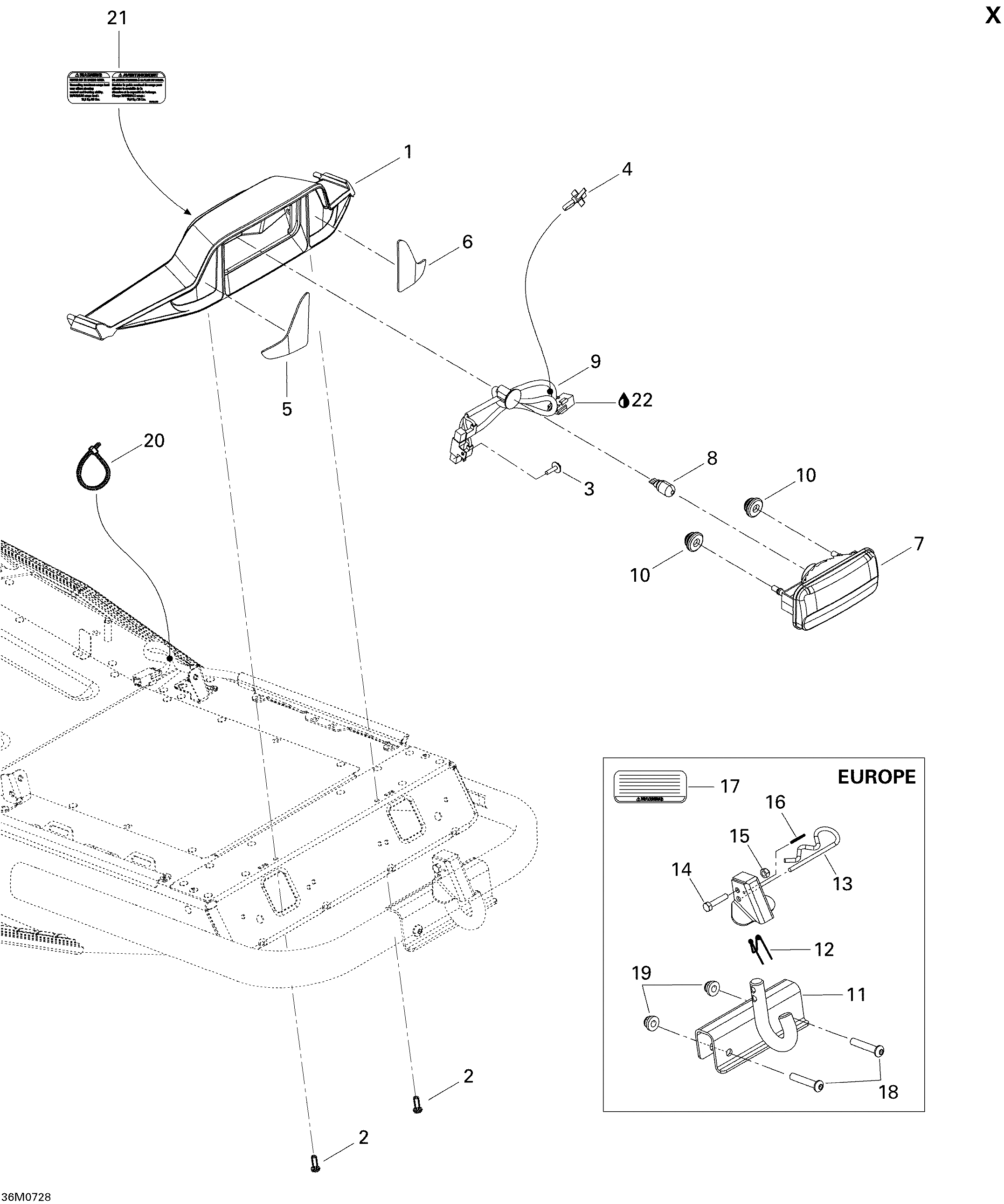

09- Luggage Rack для BRP Ski-Doo Summit XRS - 2007
-
№АртикулНазвание
-
1511000510 Light SupportLight Support
-
2250000146 Truss Head Torx Screw K50 X 16Truss Head Torx Screw K50 X 16
-
3250000113 Screw M4 X 16, Type K-40Screw M4 X 16, Type K-40
-
4293750009 Tie-Rap 160 mmTie-Rap 160 mm
-
5511000459 Rear ReflectorRear Reflector
-
6511000460 Rear ReflectorRear Reflector
-
7710000652 Rear Lens BoxRear Lens Box
-
8710000653 BulbBulb
-
9511000508 Wiring HarnessWiring Harness
-
10705001119 WasherWasher
-
11511000518 Support. EUROPESupport. EUROPE
-
12517152800 Spring. EUROPESpring. EUROPE
-
13114045200 Hair Pin. EUROPEHair Pin. EUROPE
-
14207063544 Hex. Flanged Screw M6 X 35. EUROPEHex. Flanged Screw M6 X 35. EUROPE
-
15232561414 Elastic Stop Nut M6. EUROPEElastic Stop Nut M6. EUROPE
-
16732804000 Spring Pin M3 X 24. EUROPESpring Pin M3 X 24. EUROPE
-
17516003037 Security Label. EUROPESecurity Label. EUROPE
-
18205484546 Socket Head Screw M8 X 45. EUROPESocket Head Screw M8 X 45. EUROPE
-
19233281414 Hex Flanged Elastic Nut M8. EUROPEHex Flanged Elastic Nut M8. EUROPE
-
20293750002 Tie-Rap 130 mmTie-Rap 130 mm
-
21516002960 Warning Label, Maximum Cargo LoadWarning Label, Maximum Cargo Load
-
22293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
