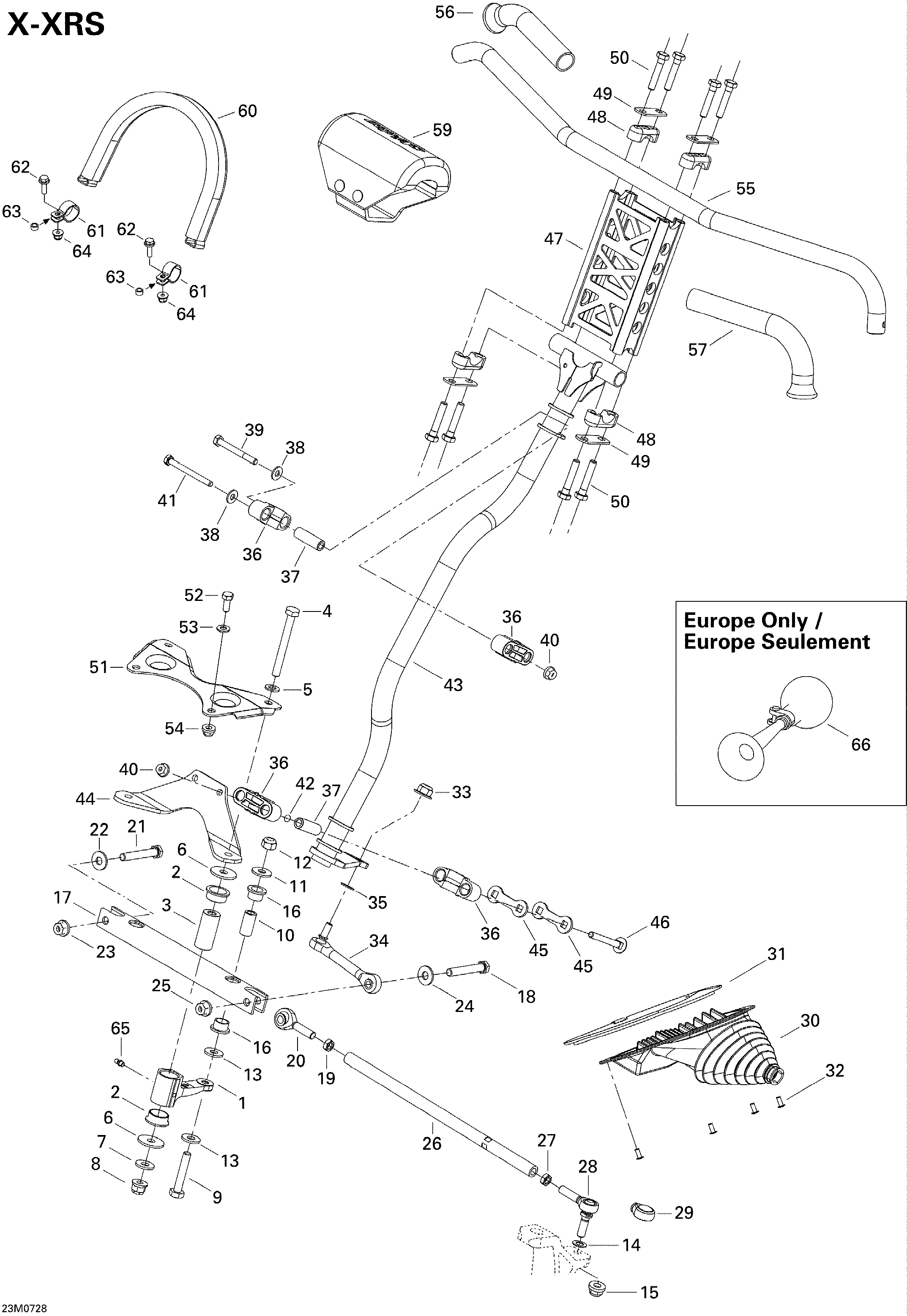

07- Steering System XRS для BRP Ski-Doo Summit XRS - 2007
-
№АртикулНазвание
-
1506152124 RH Swivel ArmRH Swivel Arm
-
1506152123 LH Swivel ArmLH Swivel Arm
-
2415041100 CushionCushion
-
3506151272 Swivel PivotSwivel Pivot
-
4207009086 Hex Screw M10 X 90Hex Screw M10 X 90
-
5503183800 WasherWasher
-
6506150000 Washer 10 mmWasher 10 mm
-
7506151251 WasherWasher
-
8732610084 Flanged Nut M10Flanged Nut M10
-
9207005544 Hex Screw M10 X 55Hex Screw M10 X 55
-
10506151273 Pivot BarPivot Bar
-
11224002251 Flat WasherFlat Washer
-
12233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
13250200032 WasherWasher
-
14503175800 WasherWasher
-
15250100088 Hex. Elastic Hex Nut M10Hex. Elastic Hex Nut M10
-
16506150200 Bushing SwivelBushing Swivel
-
17506151328 Swivel BarSwivel Bar
-
18207006544 Hex Screw M10 X 65Hex Screw M10 X 65
-
19250100016 LH Hex Jam Nut M10LH Hex Jam Nut M10
-
20506151810 LH Ball JointLH Ball Joint
-
21207004544 Hex Screw M10 X 45Hex Screw M10 X 45
-
22224002251 Flat WasherFlat Washer
-
23233201414 Hex Flanged Elastic Nut M10Hex Flanged Elastic Nut M10
-
24224002251 Flat WasherFlat Washer
-
25233201414 Hex Flanged Elastic Nut M10Hex Flanged Elastic Nut M10
-
26506151375 Tie-RodTie-Rod
-
27732610010 RH Hex Jam Nut M10RH Hex Jam Nut M10
-
28506152017 RH Thread Ball JointRH Thread Ball Joint
-
29506151650 Protection CapProtection Cap
-
30506151725 RH Tie-Rod CapRH Tie-Rod Cap
-
31506151356 RH Retainer RingRH Retainer Ring
-
30506151726 LH Tie-Rod CapLH Tie-Rod Cap
-
31506151357 LH Retainer RingLH Retainer Ring
-
32390909100 Avex RivetAvex Rivet
-
33250100088 Hex. Elastic Hex Nut M10Hex. Elastic Hex Nut M10
-
34506151621 Ball Joint, DoubleBall Joint, Double
-
35503175800 WasherWasher
-
36506150400 Housing HalfHousing Half
-
37506150500 Housing BushingHousing Bushing
-
38503189157 WasherWasher
-
39207087044 Hex Screw M8 X 70Hex Screw M8 X 70
-
40233281414 Hex Flanged Elastic Nut M8Hex Flanged Elastic Nut M8
-
41207088044 Hex Screw M8 X 80Hex Screw M8 X 80
-
42506151140 O-RingO-Ring
-
43506152137 Main TubeMain Tube
-
44506151330 Steering Shaft SupportSteering Shaft Support
-
45506150600 Stopper PlateStopper Plate
-
46207787044 Carriage Bolt M8 X 70Carriage Bolt M8 X 70
-
47506152107 ExtensionExtension
-
48506151622 Steering SupportSteering Support
-
49506151196 ReinforcementReinforcement
-
50250000074 Hex Screw With Nylon M8 X 40Hex Screw With Nylon M8 X 40
-
51506151536 Pivot SupportPivot Support
-
52207182544 Hex Screw M8 X 25Hex Screw M8 X 25
-
53234081410 Flat Washer 8 mmFlat Washer 8 mm
-
54233281414 Hex Flanged Elastic Nut M8Hex Flanged Elastic Nut M8
-
55506151820 Handle BarHandle Bar
-
56506151530 RH Grip 6-1/2''RH Grip 6-1/2''
-
57506151541 LH Grip 8-3/4''LH Grip 8-3/4''
-
59506152165 Steering Pad. XRSSteering Pad. XRS
-
60506152115 Strap Ass'yStrap Ass'y
-
61506151792 Support Plate, BlackSupport Plate, Black
-
62207662084 Hex Flanged Screw M6 X 20Hex Flanged Screw M6 X 20
-
63506152156 BushingBushing
-
64233261494 Hex Elastic Flanged Nut M6Hex Elastic Flanged Nut M6
-
65408200700 Grease FittingGrease Fitting
-
66415040700 HornHorn
