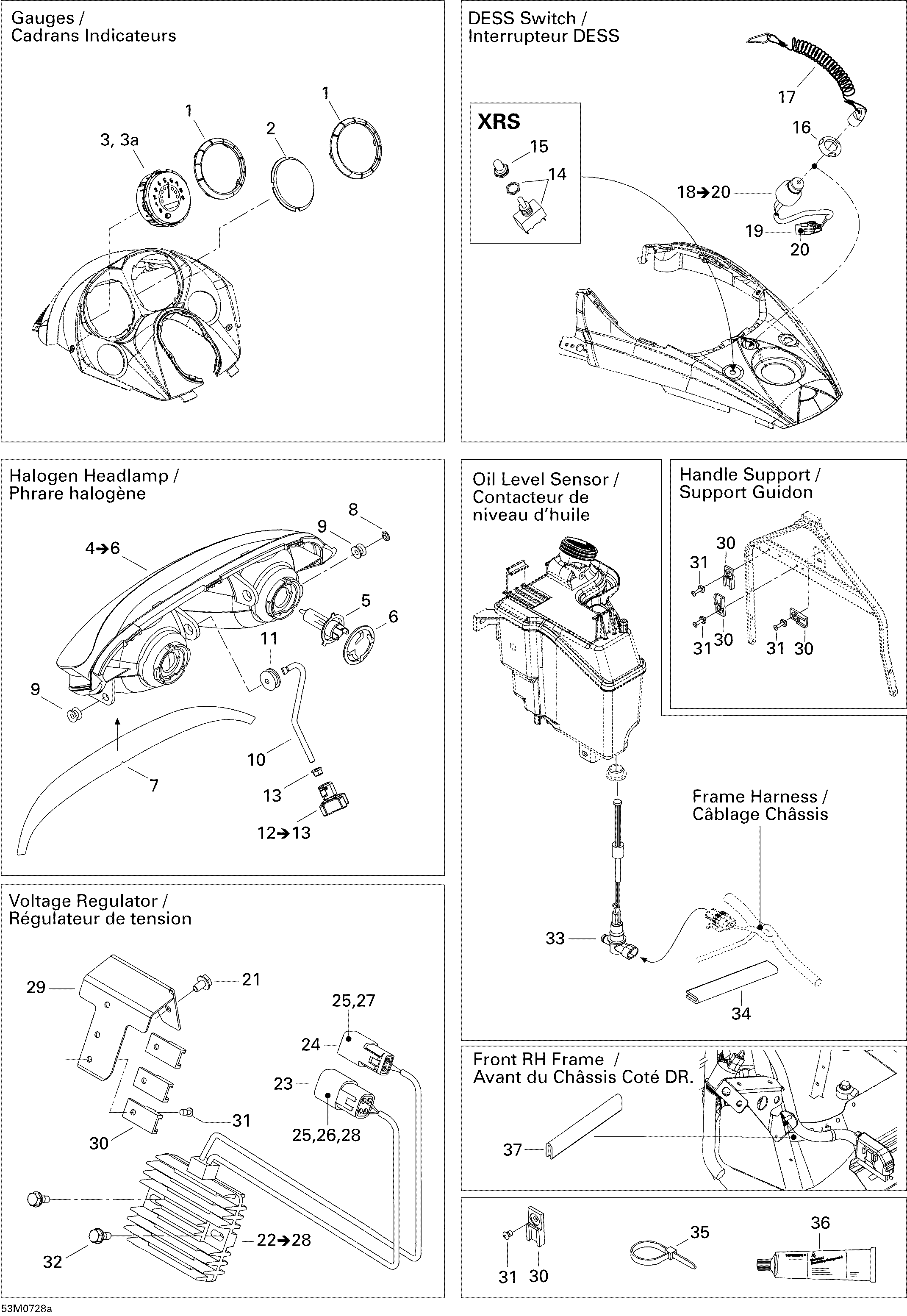

10- Electrical Accessories 1, XRS для BRP Ski-Doo Summit XRS - 2007
-
№АртикулНазвание
-
1515176242 Gauge RingGauge Ring
-
2515175901 Bottom RingBottom Ring
-
3515176479 Tachometer/Speedo GaugeTachometer/Speedo Gauge
-
3a415128938 Remplacement Lens, SpeedometerRemplacement Lens, Speedometer
-
4515176311 Halogen Headlamp Ass'y. Includes 4 to 6Halogen Headlamp Ass'y. Includes 4 to 6
-
5515176274 Halogen Bulb, 60/55 W, 12 VHalogen Bulb, 60/55 W, 12 V
-
6515176385 Bulb HolderBulb Holder
-
7516001328 Headlamp DecalHeadlamp Decal
-
8732610072 Push NutPush Nut
-
9515175760 Headlamp BushingHeadlamp Bushing
-
10515175521 Adjuster RodAdjuster Rod
-
11415100800 GrommetGrommet
-
12515175975 Handle. Includes 12 to 13Handle. Includes 12 to 13
-
13233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
14410107300 Switch (Heating Grip). XRSSwitch (Heating Grip). XRS
-
15515175281 Switch Cover. XRSSwitch Cover. XRS
-
16278000508 Safety Switch NutSafety Switch Nut
-
17515176461 DESS CapDESS Cap
-
18515175797 Dess Switch. Includes 18 to 20Dess Switch. Includes 18 to 20
-
19515175232 Male TerminalMale Terminal
-
20515175494 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
21210261080 Hex Flanged Forming Screw M6 X 10Hex Flanged Forming Screw M6 X 10
-
22515175968 Voltage Regulator. Includes 22 to 28Voltage Regulator. Includes 22 to 28
-
23278001477 Female Housing, 4 CircuitsFemale Housing, 4 Circuits
-
24278001674 Male Terminal Housing, 2 CircuitsMale Terminal Housing, 2 Circuits
-
25515175568 Male TerminalMale Terminal
-
26278001478 (Female) Secondary Lock (4 Circuits) (Deutsch)(Female) Secondary Lock (4 Circuits) (Deutsch)
-
27278001672 Male Lock, 2 CircuitsMale Lock, 2 Circuits
-
28293000052 Sealing CapSealing Cap
-
29515176191 Housing SupportHousing Support
-
30515175917 ClipClip
-
31293150037 Avdel Rivet 3/16''Avdel Rivet 3/16''
-
32210262080 Hex. Forming Screw M6 X 20Hex. Forming Screw M6 X 20
-
33515176327 Oil Level SensorOil Level Sensor
-
34509000263 TrimTrim
-
35293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
36293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
37271000110 Protection TrimProtection Trim
