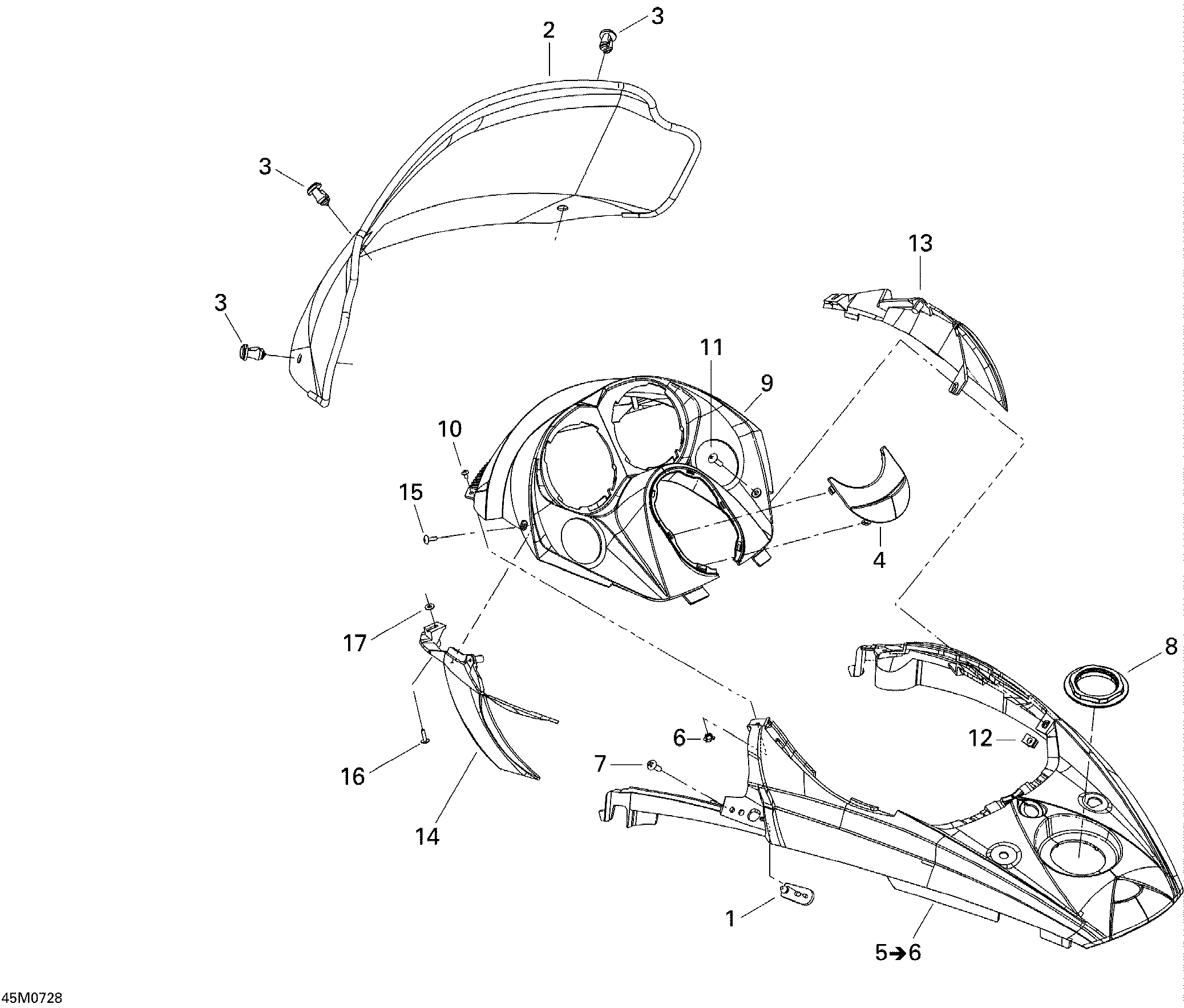

09- Windshield And Console для BRP Ski-Doo Summit XRS - 2007
-
№АртикулНазвание
-
1517302616 Hood LatchHood Latch
-
2517303045 Low Windshield. XRSLow Windshield. XRS
-
2517303588 Low Windshield. X (White/Black)Low Windshield. X (White/Black)
-
2517303738 Low Windshield. X (Grey/Black)Low Windshield. X (Grey/Black)
-
3293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
4517302592 Console CapConsole Cap
-
5517303678 Center Console. XRSCenter Console. XRS
-
5517303682 Center Console. X (White/Black)Center Console. X (White/Black)
-
5517303683 Center Console. X (Grey/Black)Center Console. X (Grey/Black)
-
6250100030 T-nut, M4T-nut, M4
-
7250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
8517302575 Console NutConsole Nut
-
9517303472 Indicator SupportIndicator Support
-
10250000127 Torx Screw M4 X 8Torx Screw M4 X 8
-
11250000130 Torx Screw M5 X 20Torx Screw M5 X 20
-
12250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
13517302546 RH Air Deflector. XRH Air Deflector. X
-
13517302798 RH Air Deflector. XRSRH Air Deflector. XRS
-
14517302547 LH Air Deflector. XLH Air Deflector. X
-
14517302799 LH Air Deflector. XRSLH Air Deflector. XRS
-
15250000084 Phillips Screw K40 X 16Phillips Screw K40 X 16
-
16250000113 Screw M4 X 16, Type K-40Screw M4 X 16, Type K-40
-
17234042600 Flat Washer 4 mm, StainlessFlat Washer 4 mm, Stainless
