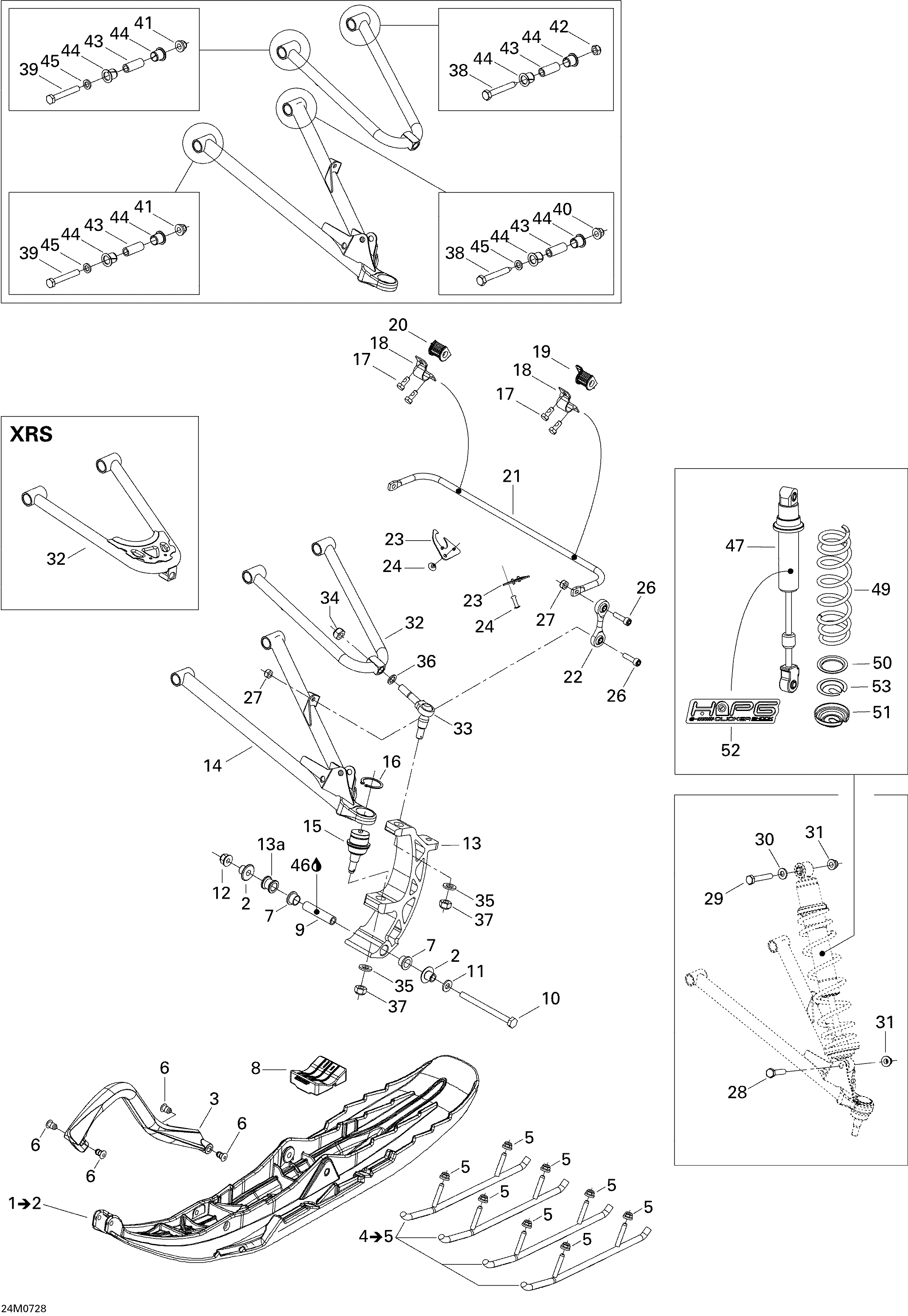

07- Front Suspension And Ski XRS для BRP Ski-Doo Summit XRS - 2007
-
№АртикулНазвание
-
1505072051 RH Pilot Ski 6.9. XRS, Includes 1 to 2RH Pilot Ski 6.9. XRS, Includes 1 to 2
-
1505072053 LH Pilot Ski 6.9. XRS, Includes 1 to 2LH Pilot Ski 6.9. XRS, Includes 1 to 2
-
2505071781 CushionCushion
-
3505070917 Handle, YellowHandle, Yellow
-
4860511800 Square Carbide Runner Kit. Includes 4 to 5Square Carbide Runner Kit. Includes 4 to 5
-
5233281414 Hex Flanged Elastic Nut M8Hex Flanged Elastic Nut M8
-
6505071812 RetainerRetainer
-
7505070954 CushionCushion
-
8505071779 Ski StopperSki Stopper
-
9505071271 BushingBushing
-
10230003044 Hex Screw M10 X 130Hex Screw M10 X 130
-
11732900049 WasherWasher
-
12732610084 Flanged Nut M10Flanged Nut M10
-
13505071248 Ski LegSki Leg
-
13a505071215 SpacerSpacer
-
14505072055 RH Lower ArmRH Lower Arm
-
14505072056 LH Lower ArmLH Lower Arm
-
15505072048 Ball JointBall Joint
-
16293370035 CirclipCirclip
-
17250000118 Hex Screw With NylonHex Screw With Nylon
-
18506095800 ClampClamp
-
19505071475 LH BushingLH Bushing
-
20505071476 RH BushingRH Bushing
-
21505071477 StabilisatorStabilisator
-
22505071479 Ball JointBall Joint
-
23505071253 PlugPlug
-
24293150103 Pop RivetPop Rivet
-
26205083044 Socket Head Screw M8 X 30Socket Head Screw M8 X 30
-
27232581414 Hex Elastic Nut M8Hex Elastic Nut M8
-
28207006044 Hex Screw M10 X 60Hex Screw M10 X 60
-
29207006044 Hex Screw M10 X 60Hex Screw M10 X 60
-
30503189564 WasherWasher
-
31233201414 Hex Flanged Elastic Nut M10Hex Flanged Elastic Nut M10
-
32505072057 RH Upper ArmRH Upper Arm
-
32505072058 LH Upper ArmLH Upper Arm
-
33505072047 Upper Ball JointUpper Ball Joint
-
34250100089 Hex. Elastic Hex Nut M12Hex. Elastic Hex Nut M12
-
35234021410 Flat Washer 12 mmFlat Washer 12 mm
-
36503189276 WasherWasher
-
37250100089 Hex. Elastic Hex Nut M12Hex. Elastic Hex Nut M12
-
38250000216 Cone Screw M10 X 75Cone Screw M10 X 75
-
39250000218 Hex Screw M10 X 75Hex Screw M10 X 75
-
40250100088 Hex. Elastic Hex Nut M10Hex. Elastic Hex Nut M10
-
41250100088 Hex. Elastic Hex Nut M10Hex. Elastic Hex Nut M10
-
42250100088 Hex. Elastic Hex Nut M10. RightHex. Elastic Hex Nut M10. Right
-
42232501416 Elastic Flanged Nut M10. LeftElastic Flanged Nut M10. Left
-
43505070960 BushingBushing
-
44505070566 Arm BushingArm Bushing
-
45503189564 WasherWasher
-
46219700417 Synthetic Grease, 400 GSynthetic Grease, 400 G
-
47505071994 Front ShockFront Shock
-
49505071989 SpringSpring
-
50503165100 Spring GuideSpring Guide
-
51503140600 Spring StopperSpring Stopper
-
52505072222 HPG DecalHPG Decal
-
53503141600 CapCap
