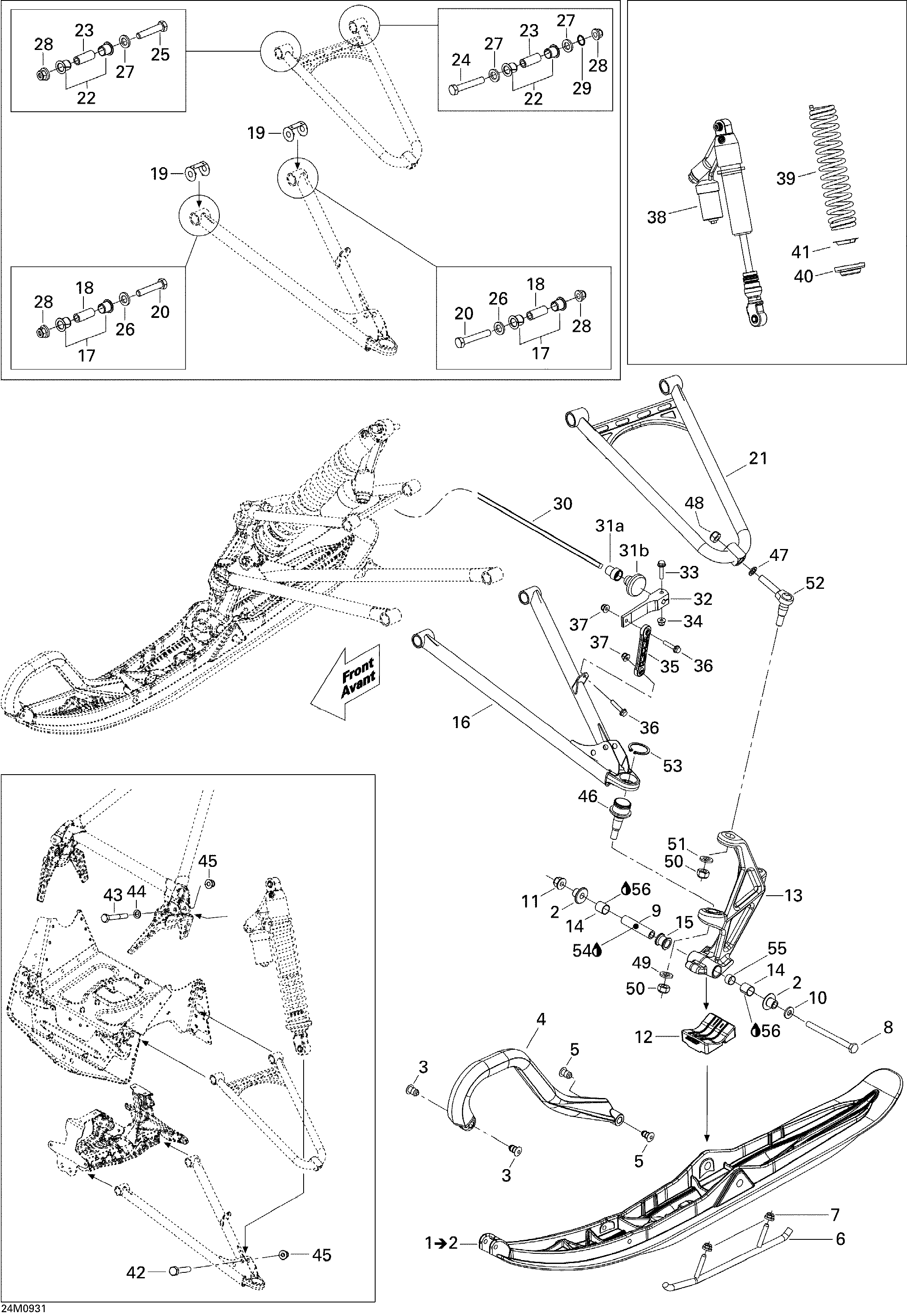

07- Front Suspension And Ski для BRP Ski-Doo MX Z X 600RS - 2009
-
№АртикулНазвание
-
1505072205 Pilot Ski 5.7X. Includes 1 to 2Pilot Ski 5.7X. Includes 1 to 2
-
2505071781 CushionCushion
-
3505071812 RetainerRetainer
-
4505071674 Handle, YellowHandle, Yellow
-
5505072133 RetainerRetainer
-
6505072223 Carbide RunnerCarbide Runner
-
7233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
8230003044 Hex. Screw M10 X 130Hex. Screw M10 X 130
-
9505072748 Ski AxleSki Axle
-
10732900049 WasherWasher
-
11732610084 Flanged Nut M10Flanged Nut M10
-
12505071779 Ski StopperSki Stopper
-
13505072674 LH Ski LegLH Ski Leg
-
13505072675 RH Ski LegRH Ski Leg
-
14505072663 BushingBushing
-
15505071215 SpacerSpacer
-
16505072652 RH Lower ArmRH Lower Arm
-
16505072653 LH Lower ArmLH Lower Arm
-
17503191766 CushionCushion
-
18505072401 Aluminum BushingAluminum Bushing
-
19505072279 Wear PlateWear Plate
-
20250000291 Screw Hex. M10 X 70Screw Hex. M10 X 70
-
21505072650 LH Upper ArmLH Upper Arm
-
21505072651 RH Upper ArmRH Upper Arm
-
22503191555 Swivel BushingSwivel Bushing
-
23505072143 BushingBushing
-
24250000387 Screw Hex. M10 X 65Screw Hex. M10 X 65
-
25250000290 Screw Hex. M10 X 60Screw Hex. M10 X 60
-
26503189564 WasherWasher
-
27505072392 WasherWasher
-
28250100088 Hex. Elastic Hex. Nut M10Hex. Elastic Hex. Nut M10
-
29505072448 O-RingO-Ring
-
30505072059 StabilisatorStabilisator
-
31a505072064 BushingBushing
-
31b572091300 CapCap
-
32505072394 Stabilisator LeverStabilisator Lever
-
33207663046 Flanged Hex. Screw M6 X 30Flanged Hex. Screw M6 X 30
-
34233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
35505072204 Double Ball Joint LinkDouble Ball Joint Link
-
36207663046 Flanged Hex. Screw M6 X 30Flanged Hex. Screw M6 X 30
-
37233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
38505072564 RH HPG Front ShockRH HPG Front Shock
-
38505072565 LH HPG Front ShockLH HPG Front Shock
-
39505072687 SpringSpring
-
40505072635 Spring StopperSpring Stopper
-
41505072637 CapCap
-
42207005544 Hex. Screw M10 X 55Hex. Screw M10 X 55
-
43207006544 Hex. Screw M10 X 65Hex. Screw M10 X 65
-
44503189564 WasherWasher
-
45233201414 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
46505072682 Lower Ball JointLower Ball Joint
-
47503189276 WasherWasher
-
48250100089 Hex. Elastic Hex. Nut M12Hex. Elastic Hex. Nut M12
-
49234021410 Flat Washer 12 mmFlat Washer 12 mm
-
50250100089 Hex. Elastic Hex. Nut M12Hex. Elastic Hex. Nut M12
-
51503189276 WasherWasher
-
52505072257 Upper Ball JointUpper Ball Joint
-
53293370035 CirclipCirclip
-
54219700417 Synthetic Grease, 400 gSynthetic Grease, 400 g
-
55505072747 SpacerSpacer
-
56293800025 Loctite, 609Loctite, 609
