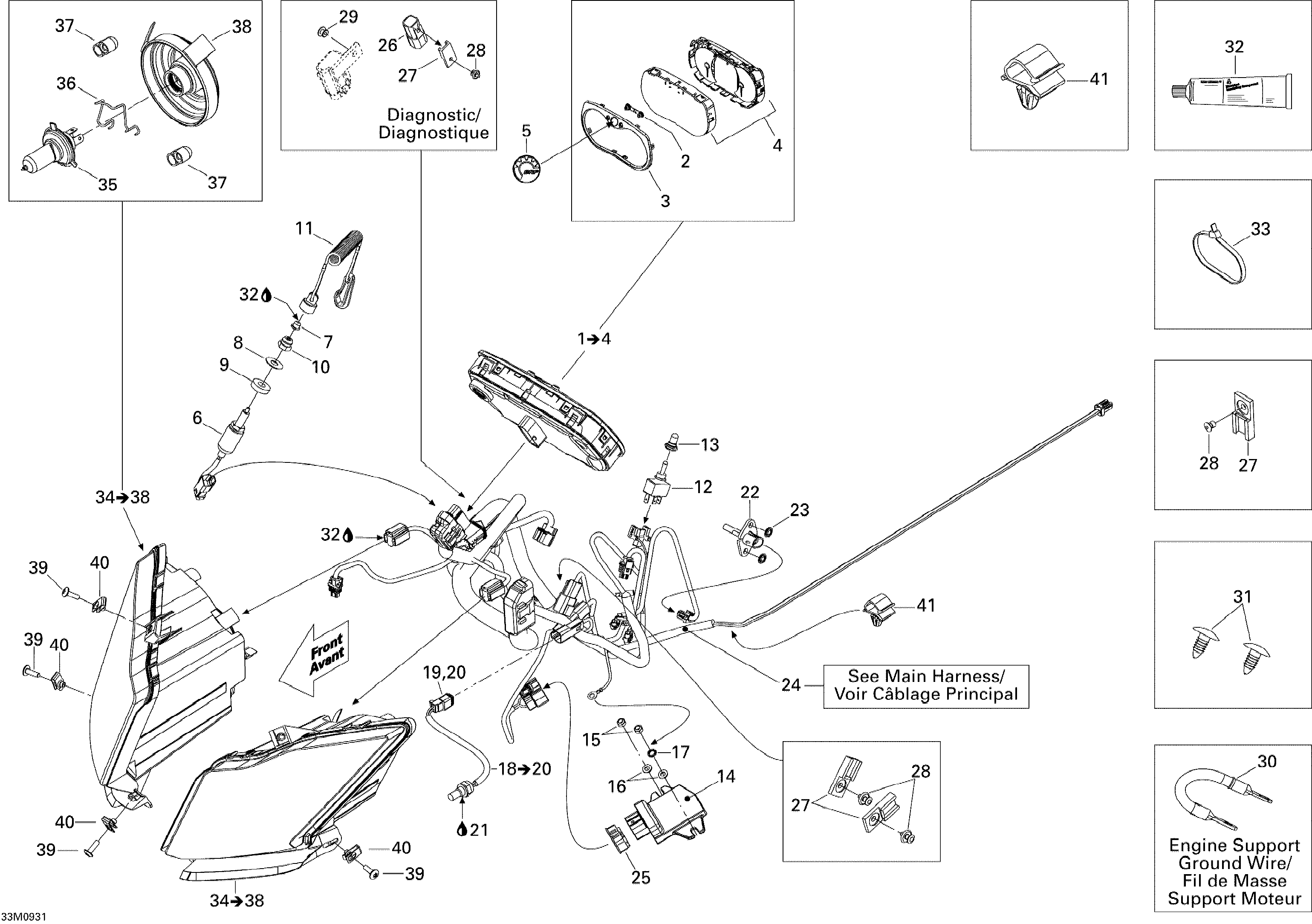

10- Electrical System для BRP Ski-Doo MX Z X 600RS - 2009
-
№АртикулНазвание
-
1515176752 Speedometer. Includes 1 to 4Speedometer. Includes 1 to 4
-
2415129355 Speedometer ButtonSpeedometer Button
-
3415129348 Gauge RingGauge Ring
-
4415129349 LensLens
-
5219902677 Logo, BRP 20 mmLogo, BRP 20 mm
-
6515175653 Brake SwitchBrake Switch
-
7570151100 Plunger CapPlunger Cap
-
8250200032 WasherWasher
-
9510004418 WasherWasher
-
10515145900 Switch NutSwitch Nut
-
11515176462 Cap Ass'yCap Ass'y
-
12410107300 Switch (Heating Grip)Switch (Heating Grip)
-
13515175281 Switch CoverSwitch Cover
-
14515176364 Voltage RegulatorVoltage Regulator
-
15232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
16234061410 Flat Washer 6 mmFlat Washer 6 mm
-
17234461608 External Serrated Lock Washer 6 mmExternal Serrated Lock Washer 6 mm
-
18515176398 Temperature Sensor. Includes 18 to 20Temperature Sensor. Includes 18 to 20
-
19515175670 Female Terminal Housing, 2 CircuitsFemale Terminal Housing, 2 Circuits
-
20278000632 Female TerminalFemale Terminal
-
21293800018 Loctite 592, Pipe Sealant, 50 mlLoctite 592, Pipe Sealant, 50 ml
-
22515176366 Air Temperature SensorAir Temperature Sensor
-
23389804300 Push NutPush Nut
-
24515176799 Main Wiring HarnessMain Wiring Harness
-
25515176681 LockLock
-
26515176234 Female Terminal Housing, 6 CircuitsFemale Terminal Housing, 6 Circuits
-
27515175917 ClipClip
-
28293150037 Avdel Rivet 3/16''Avdel Rivet 3/16''
-
29390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
30515176358 Ground WireGround Wire
-
31414644300 DartDart
-
32293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
33293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
33293750002 Tie-Rap 130 mmTie-Rap 130 mm
-
33414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
33293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
34517304194 RH Headlamp Ass'y. Includes 34 to 38RH Headlamp Ass'y. Includes 34 to 38
-
34517304195 LH Headlamp Ass'y. Includes 34 to 38LH Headlamp Ass'y. Includes 34 to 38
-
35515176274 Halogen Bulb, 60/55 W, 12 VHalogen Bulb, 60/55 W, 12 V
-
37515176498 CapCap
-
38515176499 CoverCover
-
39250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
40250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
41515176795 clipclip
