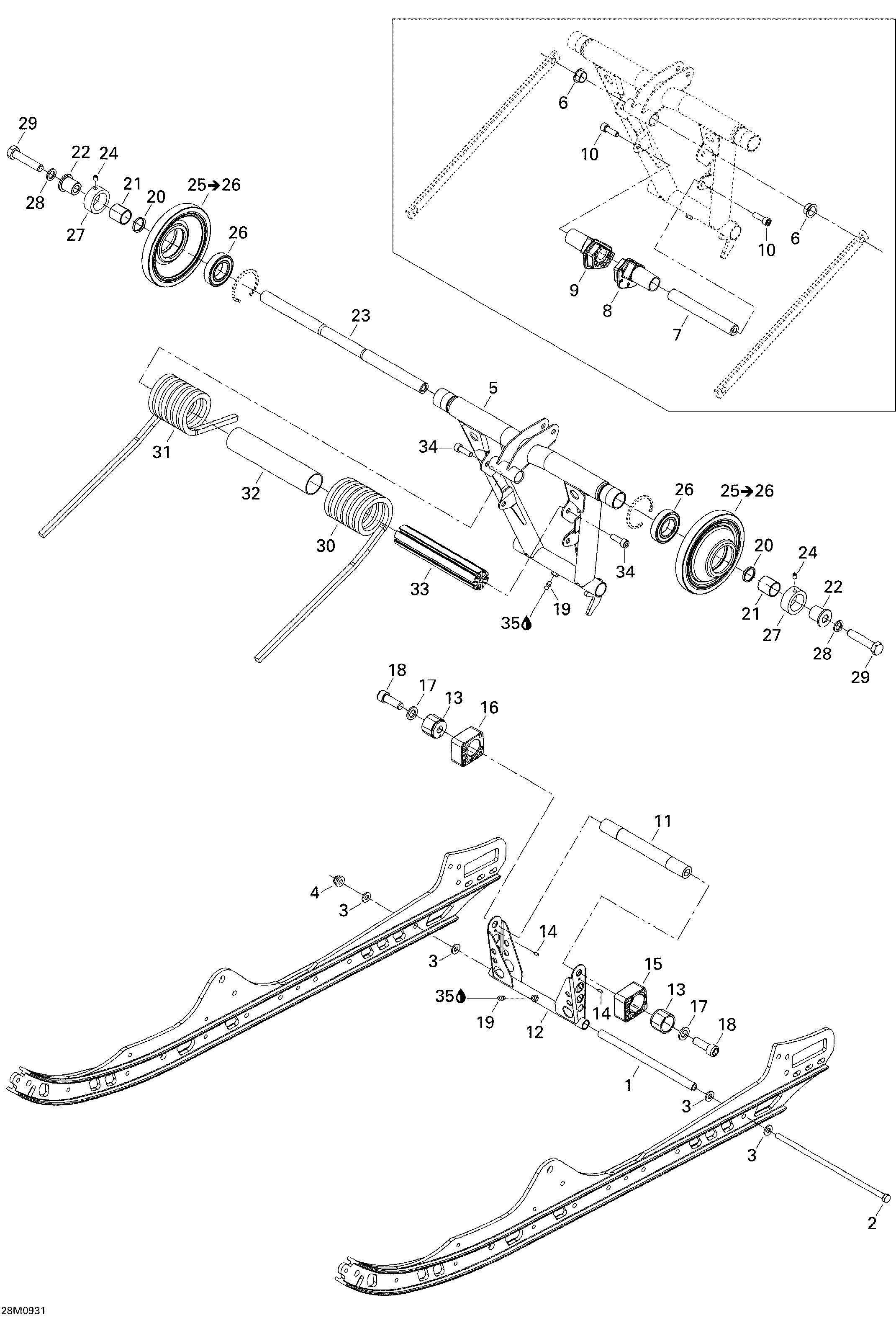

08- Rear Arm для BRP Ski-Doo MX Z X 600RS - 2009
-
№АртикулНазвание
-
1503189156 Pivot Arm AxlePivot Arm Axle
-
2732601198 Long Bolt M8Long Bolt M8
-
3503189157 WasherWasher
-
4233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
5503192087 Rear ArmRear Arm
-
6503191555 Swivel BushingSwivel Bushing
-
7503191178 Spring Cam AxeSpring Cam Axe
-
8503191191 LH Spring CamLH Spring Cam
-
9503191190 RH Spring CamRH Spring Cam
-
10205582544 Socket Head Screw M8 X 25, Scotch GripSocket Head Screw M8 X 25, Scotch Grip
-
11503192095 Lower ShaftLower Shaft
-
12503191302 Pivot ArmPivot Arm
-
13503192041 Block GuideBlock Guide
-
14250400005 Dowel Pin 4 X 8 mmDowel Pin 4 X 8 mm
-
15503191563 LH Block, 4 PositionsLH Block, 4 Positions
-
16503191562 RH Block, 4 PositionsRH Block, 4 Positions
-
17503189148 WasherWasher
-
18205523587 Socket Head Screw Scotch Grip Din.912Socket Head Screw Scotch Grip Din.912
-
19408200700 Grease FittingGrease Fitting
-
22503191775 BushingBushing
-
23503191776 Upper ShaftUpper Shaft
-
24206260844 Socket Set Screw M6 X 8Socket Set Screw M6 X 8
-
25503191777 Wheel 144Wheel 144
-
26503191778 Ball BearingBall Bearing
-
27503191782 Retaining RingRetaining Ring
-
28503189276 WasherWasher
-
29207226044 Hex. Screw M12 X 60, Scotch GripHex. Screw M12 X 60, Scotch Grip
-
30503191615 LH Spring, SquareLH Spring, Square
-
31503191614 RH Spring, SquareRH Spring, Square
-
32503191345 Plastic BushingPlastic Bushing
-
33503191344 Spring AxleSpring Axle
-
34205582544 Socket Head Screw M8 X 25, Scotch GripSocket Head Screw M8 X 25, Scotch Grip
-
35219700417 Synthetic Grease, 400 gSynthetic Grease, 400 g
