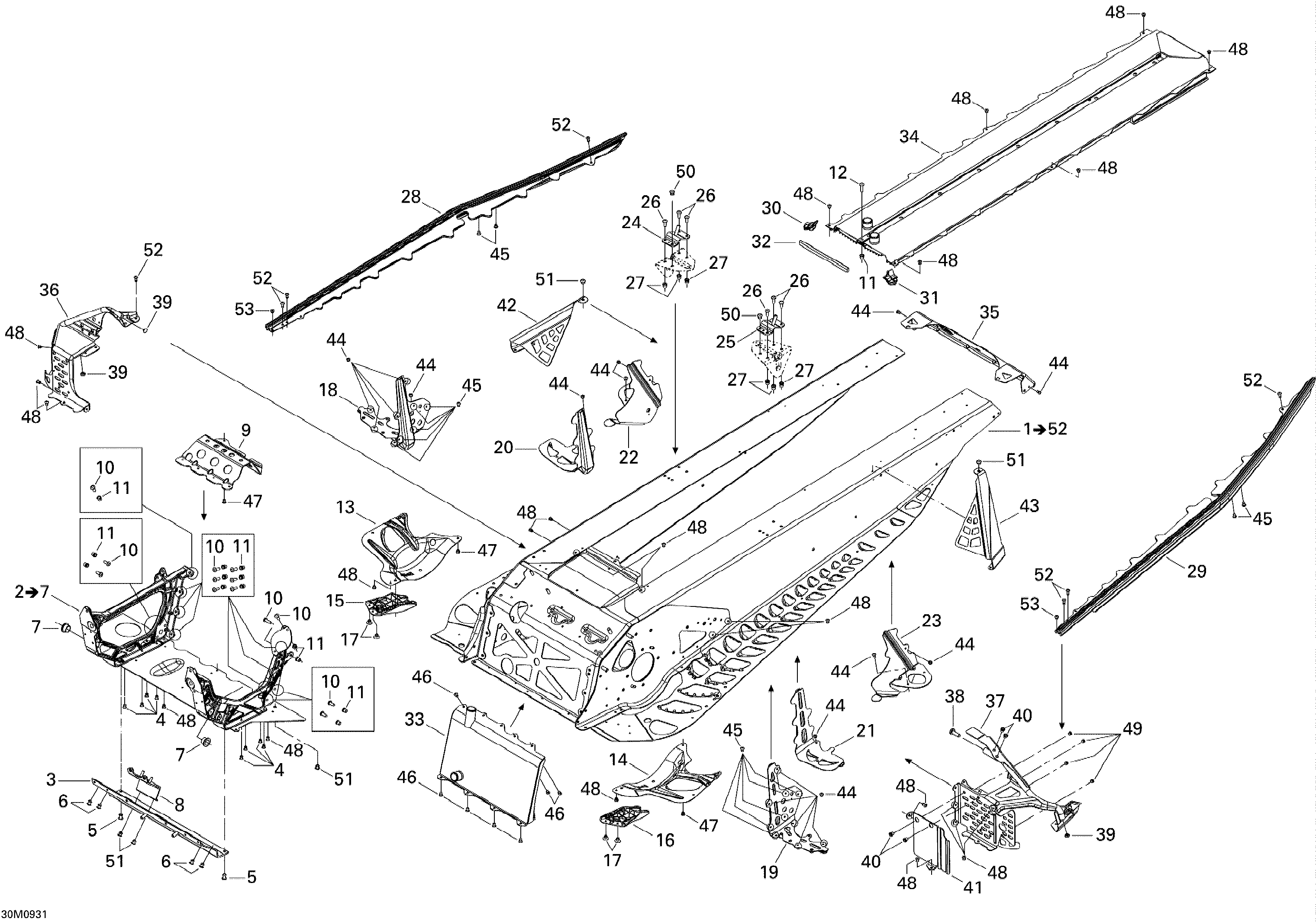

09- Frame для BRP Ski-Doo MX Z X 600RS - 2009
-
№АртикулНазвание
-
1415129390 Frame XC. Includes 1 to 52Frame XC. Includes 1 to 52
-
2518326197 E Module. Includes 2 to 7E Module. Includes 2 to 7
-
3518326198 Front MemberFront Member
-
4293150144 Stavex RivetStavex Rivet
-
5293150120 Hemlock Rivet 6.5 mmHemlock Rivet 6.5 mm
-
6293150119 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
-
7505070954 CushionCushion
-
8518325943 MAG Engine SupportMAG Engine Support
-
9518325796 Link CrossLink Cross
-
10207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
11233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
12207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
13518324874 RH ReinforcementRH Reinforcement
-
14518324875 LH ReinforcementLH Reinforcement
-
15518325782 RH DeflectorRH Deflector
-
16518325783 LH DeflectorLH Deflector
-
17293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
18518326155 RH Front SupportRH Front Support
-
19518326156 LH Front SupportLH Front Support
-
20518325747 RH ReinforcementRH Reinforcement
-
21518325748 LH ReinforcementLH Reinforcement
-
22518326159 RH Rear SupportRH Rear Support
-
23518326160 LH Rear SupportLH Rear Support
-
24518325973 RH Rear BaseRH Rear Base
-
25518325974 LH Rear BaseLH Rear Base
-
26207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
27233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
28518326180 RH RollerRH Roller
-
29518326181 LH RollerLH Roller
-
30518325653 RH SealRH Seal
-
31518325654 LH SealLH Seal
-
32293200105 Neoprene SealNeoprene Seal
-
33518325714 Front RadiatorFront Radiator
-
34518325719 Rear RadiatorRear Radiator
-
35518325421 Rear CapRear Cap
-
36518326032 RH StirrupRH Stirrup
-
37518326021 LH StirrupLH Stirrup
-
38250000248 Torx Screw M8 X 25, Scotch GripTorx Screw M8 X 25, Scotch Grip
-
39293730042 DartDart
-
40293450268 InsertInsert
-
41518326188 PlatePlate
-
42518326168 RH StiffenerRH Stiffener
-
43518326169 LH StiffenerLH Stiffener
-
44390909200 Avex RivetAvex Rivet
-
45390909100 Avex RivetAvex Rivet
-
46390909200 Avex RivetAvex Rivet
-
47390909100 Avex RivetAvex Rivet
-
48293150144 Stavex RivetStavex Rivet
-
49293150091 Henrob RivetHenrob Rivet
-
50293150119 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
-
51293150174 Hemlock Rivet, 6.4 mmHemlock Rivet, 6.4 mm
-
52293150175 Monobolt RivetMonobolt Rivet
-
53390402200 Pop Rivet 3/16''Pop Rivet 3/16''
