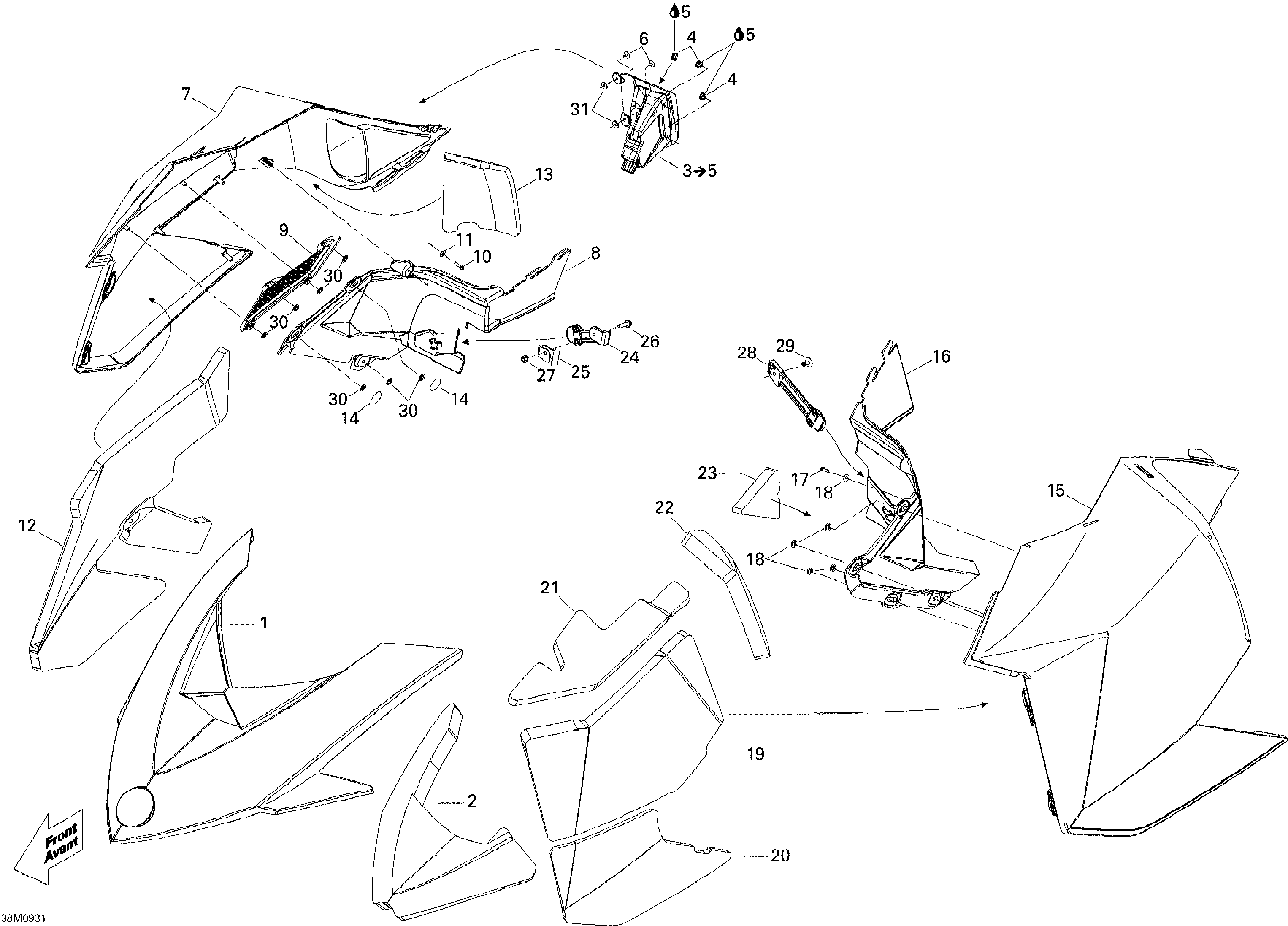

09- Hood для BRP Ski-Doo MX Z X 600RS - 2009
-
№АртикулНазвание
-
1517303598 Hood, YellowHood, Yellow
-
2517303990 Hood FoamHood Foam
-
3517304322 RH Console. Includes 3 to 5RH Console. Includes 3 to 5
-
4275500241 Cap, BlackCap, Black
-
5413408300 Loctite, Black Max, 3 mlLoctite, Black Max, 3 ml
-
6293150170 Pop Rivet 5/32''Pop Rivet 5/32''
-
7517304029 RH PanelRH Panel
-
8517303671 RH Moulding PanelRH Moulding Panel
-
9517303622 GrillGrill
-
10241141660 Flanged Hex. Screw K40 X 16Flanged Hex. Screw K40 X 16
-
11234042600 Flat Washer 4 mm, StainlessFlat Washer 4 mm, Stainless
-
12517304149 RH Panel Center FoamRH Panel Center Foam
-
13517303982 RH Panel Rear FoamRH Panel Rear Foam
-
14518325560 Adhesive PatchAdhesive Patch
-
15517304030 LH PanelLH Panel
-
16517303673 LH Moulding PanelLH Moulding Panel
-
17241141660 Flanged Hex. Screw K40 X 16Flanged Hex. Screw K40 X 16
-
18234042600 Flat Washer 4 mm, StainlessFlat Washer 4 mm, Stainless
-
19517303983 LH Panel Center FoamLH Panel Center Foam
-
20517303984 LH Panel Lower FoamLH Panel Lower Foam
-
21517303985 LH Panel Upper FoamLH Panel Upper Foam
-
22517303986 LH Panel Rear FoamLH Panel Rear Foam
-
23517303987 FoamFoam
-
24517303612 Panel LatchPanel Latch
-
25517304221 Latch SupportLatch Support
-
26207652044 Flanged Hex. Screw M5 X 20Flanged Hex. Screw M5 X 20
-
27233251414 Hex. Flanged Elastic Nut M5Hex. Flanged Elastic Nut M5
-
28517303808 Panel LatchPanel Latch
-
29293150108 Pop Rivet 3/16''Pop Rivet 3/16''
-
30732610072 Push NutPush Nut
-
31391303100 Flat WasherFlat Washer
