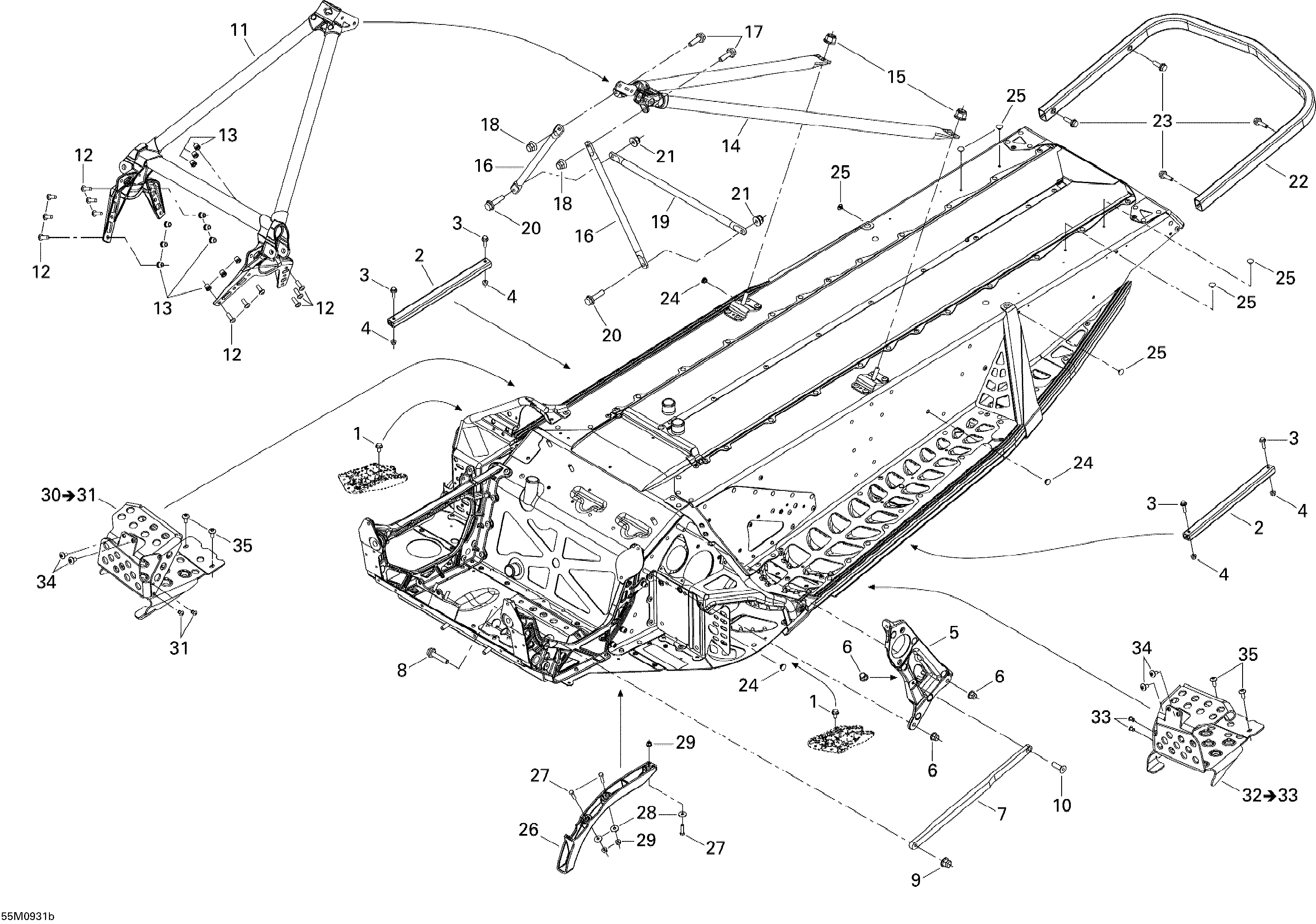

09- Frame and Components 2 для BRP Ski-Doo MX Z X 600RS - 2009
-
№АртикулНазвание
-
1207561244 Hex. Flanged Screw M6 X 12, Scotch GripHex. Flanged Screw M6 X 12, Scotch Grip
-
2518325790 Reinforcement LinkReinforcement Link
-
3207652044 Flanged Hex. Screw M5 X 20Flanged Hex. Screw M5 X 20
-
4233251414 Hex. Flanged Elastic Nut M5Hex. Flanged Elastic Nut M5
-
5518325934 Driven Pulley SupportDriven Pulley Support
-
6233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
7518326118 LinkLink
-
8207663044 Hex. Flanged Screw M6 X 30Hex. Flanged Screw M6 X 30
-
9233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
10250000143 Torx Screw M8 X 25, Scotch GripTorx Screw M8 X 25, Scotch Grip
-
11518325929 Front MemberFront Member
-
12207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
13233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
14518325927 Rear MemberRear Member
-
15233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
16518325114 Upper Column SupportUpper Column Support
-
17207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
18233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
19518325115 Center Column SupportCenter Column Support
-
20207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
21233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
22518324980 Rear BumperRear Bumper
-
23207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
24293730041 Dart 8 mmDart 8 mm
-
25293730042 DartDart
-
26518324985 Front ProtectorFront Protector
-
27207152044 Hex. Screw M5 X 20Hex. Screw M5 X 20
-
28391301600 WasherWasher
-
29233251414 Hex. Flanged Elastic Nut M5Hex. Flanged Elastic Nut M5
-
30518326173 RH Footrest. Includes 30 to 31RH Footrest. Includes 30 to 31
-
31390909100 Avex RivetAvex Rivet
-
32518326174 LH Footrest. Includes 32 to 33LH Footrest. Includes 32 to 33
-
33390909100 Avex RivetAvex Rivet
-
34250000325 Torx Screw M6 X 12Torx Screw M6 X 12
-
35250000365 Torx Screw M6 X 16Torx Screw M6 X 16
