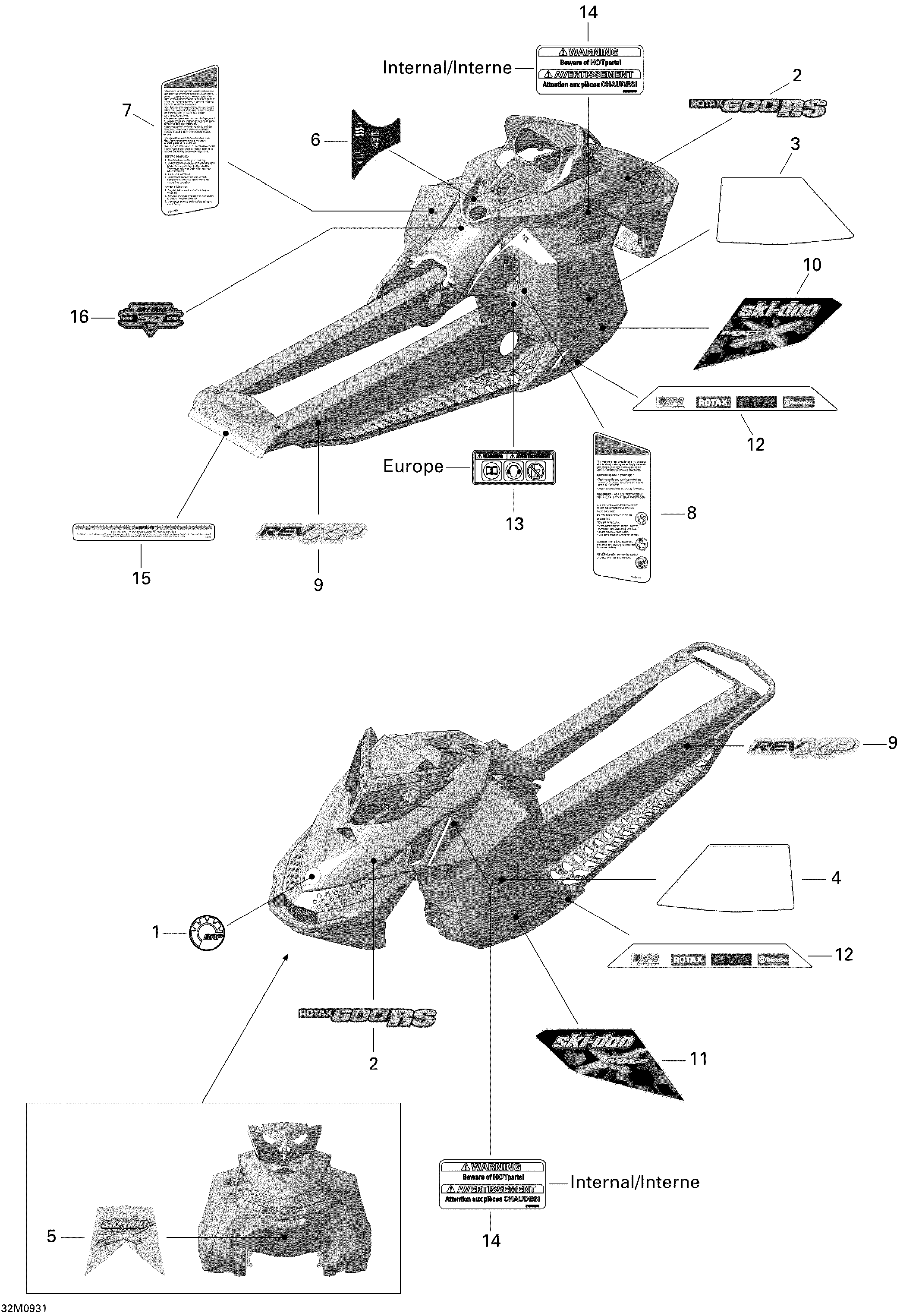

09- Decals для BRP Ski-Doo MX Z X 600RS - 2009
-
№АртикулНазвание
-
1219902469 BRP Logo, 68 mmBRP Logo, 68 mm
-
2516003570 Decal, Rotax600RSDecal, Rotax600RS
-
3516003572 RH Side DecalRH Side Decal
-
4516003571 LH Side DecalLH Side Decal
-
5516003608 Bottom Pan Lower DecalBottom Pan Lower Decal
-
6516003786 Decal, Thumb/Handle HeatingDecal, Thumb/Handle Heating
-
7516003788 Warning Decal, Security. English VersionWarning Decal, Security. English Version
-
8516003790 Warning Decal, Security. English VersionWarning Decal, Security. English Version
-
9516003543 Decal, REV XPDecal, REV XP
-
10516003912 RH Lower DecalRH Lower Decal
-
11516003911 LH Lower DecalLH Lower Decal
-
12516003611 Sponsor DecalSponsor Decal
-
13516003027 Warning Decal, Pictogram. EuropeWarning Decal, Pictogram. Europe
-
14516002965 Warning Decal, Hot PartsWarning Decal, Hot Parts
-
15516003578 Warning Decal, Track. English VersionWarning Decal, Track. English Version
-
16516003871 Console DecalConsole Decal
