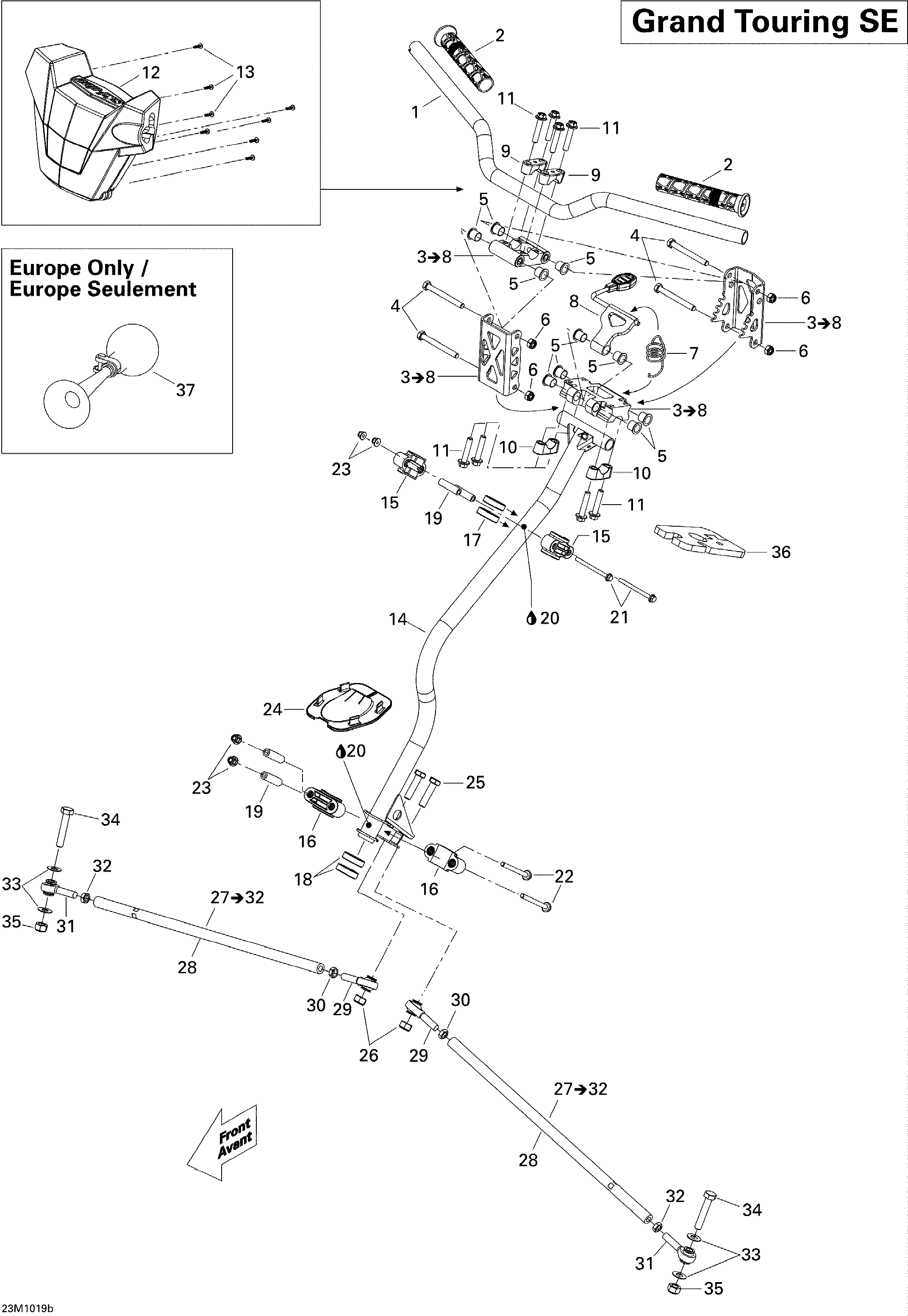

07- Steering SE для BRP Ski-Doo Grand-Touring SE 1200 - 2010
-
№АртикулНазвание
-
1506152304 Handle BarHandle Bar
-
2506152424 Handle GripHandle Grip
-
3506152197 Adjustable Handlebar. Includes 3 to 8Adjustable Handlebar. Includes 3 to 8
-
4207088544 Hex. Screw M8 X 85Hex. Screw M8 X 85
-
5506152434 CushionCushion
-
6233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
7506152184 SpringSpring
-
8506152411 Handle Ass'yHandle Ass'y
-
9506152394 Upper Steering SupportUpper Steering Support
-
10506152395 Lower Steering SupportLower Steering Support
-
11250000352 Hex. Flange Screw M8 X 40Hex. Flange Screw M8 X 40
-
12506152330 Steering PaddingSteering Padding
-
13250000400 Torx Screw K50 X 20Torx Screw K50 X 20
-
14506152469 Main TubeMain Tube
-
15506152219 Upper Half HousingUpper Half Housing
-
16506152217 Lower Half HousingLower Half Housing
-
17506152292 Upper Vibration RingUpper Vibration Ring
-
18506152218 Lower Vibration RingLower Vibration Ring
-
19506152297 Housing BushingHousing Bushing
-
20293550033 Suspension Grease, 10 X 400 GSuspension Grease, 10 X 400 G
-
21207667086 Hex. Flanged Screw M6 x 70Hex. Flanged Screw M6 x 70
-
22207667044 Hex. Flange Screw M6 X 70Hex. Flange Screw M6 X 70
-
23233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
24506152163 PlatePlate
-
25207004034 Hex. Screw M10 X 40Hex. Screw M10 X 40
-
26232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
28506152095 Tie RodTie Rod
-
29506152081 LH Thread Ball JointLH Thread Ball Joint
-
30250100016 LH Hex. Jam Nut M10LH Hex. Jam Nut M10
-
31506152019 RH Thread Ball JointRH Thread Ball Joint
-
32732610010 RH Hex. Jam Nut M10RH Hex. Jam Nut M10
-
33506152194 WasherWasher
-
34207006044 Hex. Screw M10 X 60Hex. Screw M10 X 60
-
35232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
36506152407 CushionCushion
-
37549011291 Horn. EuropeHorn. Europe
