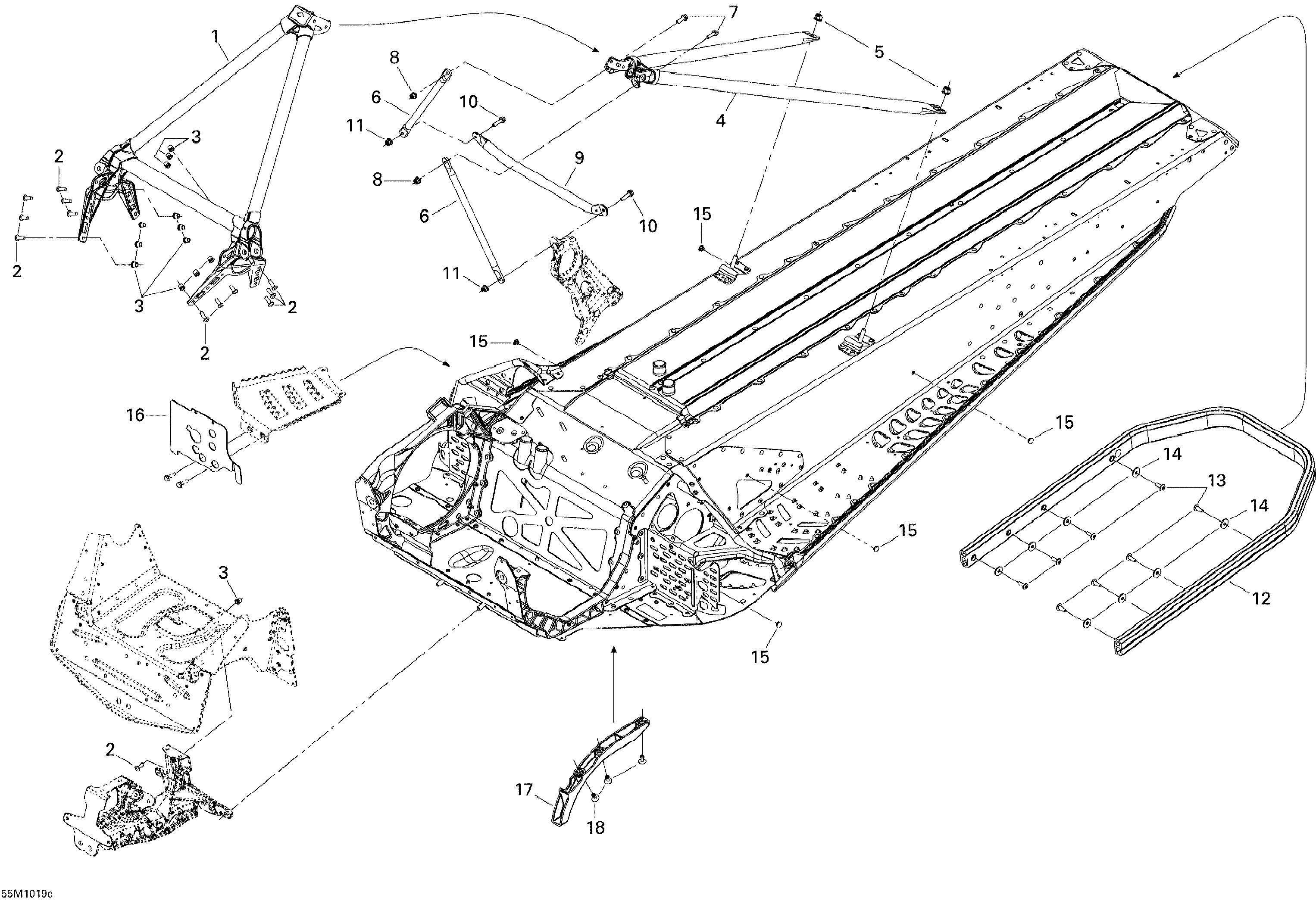

09- Frame and Components SE 1200 для BRP Ski-Doo Grand-Touring SE 1200 - 2010
-
№АртикулНазвание
-
1518325929 Front MemberFront Member
-
2207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
3233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
4518325927 Rear MemberRear Member
-
5233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
6518325114 Upper Column SupportUpper Column Support
-
7207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
8233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
9518325360 Center Column SupportCenter Column Support
-
10207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
11233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
12518325850 Rear BumperRear Bumper
-
13250000402 Torx-Truss Screw M6 X 18Torx-Truss Screw M6 X 18
-
14224061201 Flat WasherFlat Washer
-
15293730047 Dart 8 mm, BlackDart 8 mm, Black
-
16518325418 Heat ShieldHeat Shield
-
17518324985 Front ProtectorFront Protector
-
18293150108 Pop Rivet 3/16''Pop Rivet 3/16''
