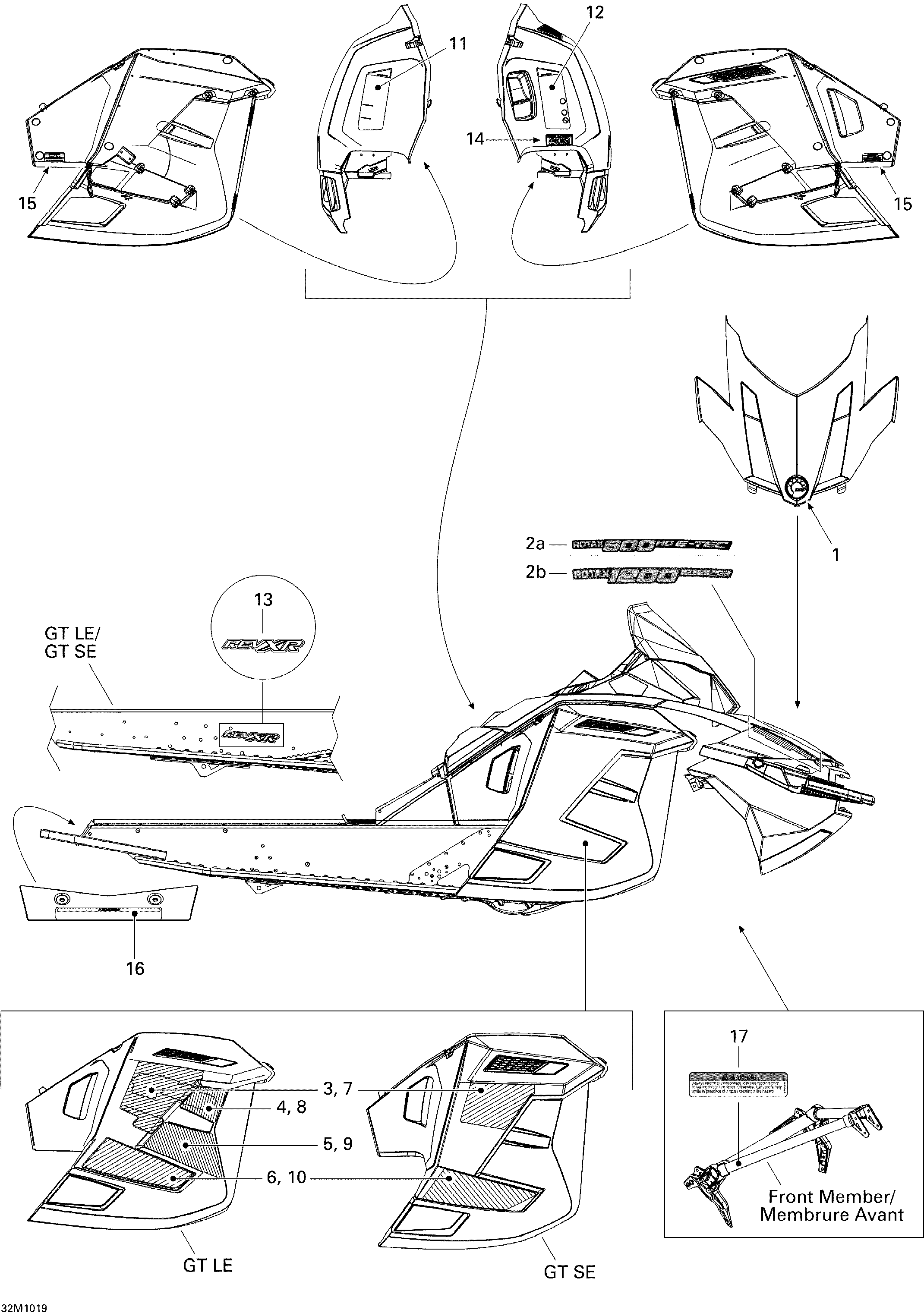

09- Decals SE 1200 для BRP Ski-Doo Grand-Touring SE 1200 - 2010
-
№АртикулНазвание
-
1219902469 Logo, BRP 68 mmLogo, BRP 68 mm
-
2b516003648 Hood Decal, Rotax 1200 4-TECHood Decal, Rotax 1200 4-TEC
-
3516004111 RH Rear Upper Side Decal. Red-Red ModelRH Rear Upper Side Decal. Red-Red Model
-
3516004282 RH Rear Upper Side Decal. Black-Black ModelRH Rear Upper Side Decal. Black-Black Model
-
6516004113 RH Side Decal. Red-Red ModelRH Side Decal. Red-Red Model
-
6516004280 RH Side Decal. Black-Black ModelRH Side Decal. Black-Black Model
-
7516004110 LH Rear Upper Side Decal. Red-Red ModelLH Rear Upper Side Decal. Red-Red Model
-
7516004281 LH Rear Upper Side Decal. Black-Black ModelLH Rear Upper Side Decal. Black-Black Model
-
10516004112 LH Side Decal. Red-Red ModelLH Side Decal. Red-Red Model
-
10516004279 LH Side Decal. Black-Black ModelLH Side Decal. Black-Black Model
-
11516003788 Warning Decal, SecurityWarning Decal, Security
-
12516003790 Warning Decal, SecurityWarning Decal, Security
-
13516003784 Decal REV XR. Red-Red ModelDecal REV XR. Red-Red Model
-
13516003784 Decal REV XR. Black-Black ModelDecal REV XR. Black-Black Model
-
14516003027 Warning Decal, Pictogram. EuropeWarning Decal, Pictogram. Europe
-
15516002965 Warning Decal, Hot PartsWarning Decal, Hot Parts
-
16516003578 Warning Decal, TrackWarning Decal, Track
