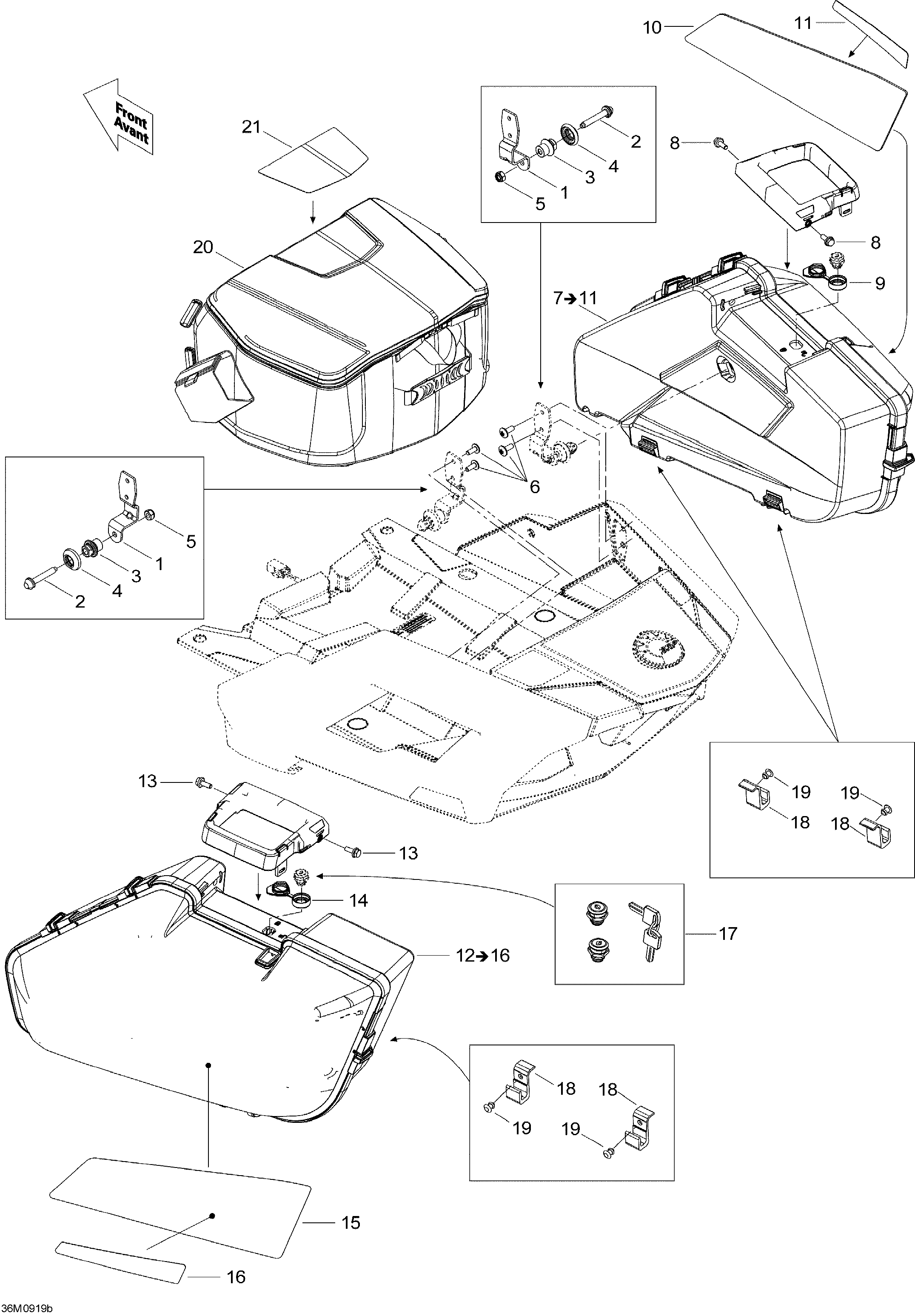

09- Luggage Rack SE для BRP Ski-Doo Grand-Touring SE 1200 - 2010
-
№АртикулНазвание
-
1511000580 Saddle Bag Lug SupportSaddle Bag Lug Support
-
2511000337 Suitcase StudSuitcase Stud
-
3511000423 Stud NutStud Nut
-
4511000358 Rubber BumperRubber Bumper
-
5232581200 Hex. Elastic Nut M8, BrassHex. Elastic Nut M8, Brass
-
6250000129 200X-TRUSS M/S GM6047M NYLON PATCH200X-TRUSS M/S GM6047M NYLON PATCH
-
7511000689 RH Suitcase Ass'y. Includes 7 to 11RH Suitcase Ass'y. Includes 7 to 11
-
8207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
9511000639 Sealing CapSealing Cap
-
10516003766 RH Bag DecalRH Bag Decal
-
11520000757 RH Rear ReflectorRH Rear Reflector
-
12511000690 LH Suit Case Ass'y. Includes 12 to 16LH Suit Case Ass'y. Includes 12 to 16
-
13207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
14511000639 Sealing CapSealing Cap
-
15516003765 LH Bag DecalLH Bag Decal
-
16520000756 LH Rear ReflectorLH Rear Reflector
-
17511000599 LockLock
-
18518325618 Support PlateSupport Plate
-
19293150147 Hemlock RivetHemlock Rivet
-
20860200174 Rear Travel BagRear Travel Bag
-
21516003817 Bag DecalBag Decal
