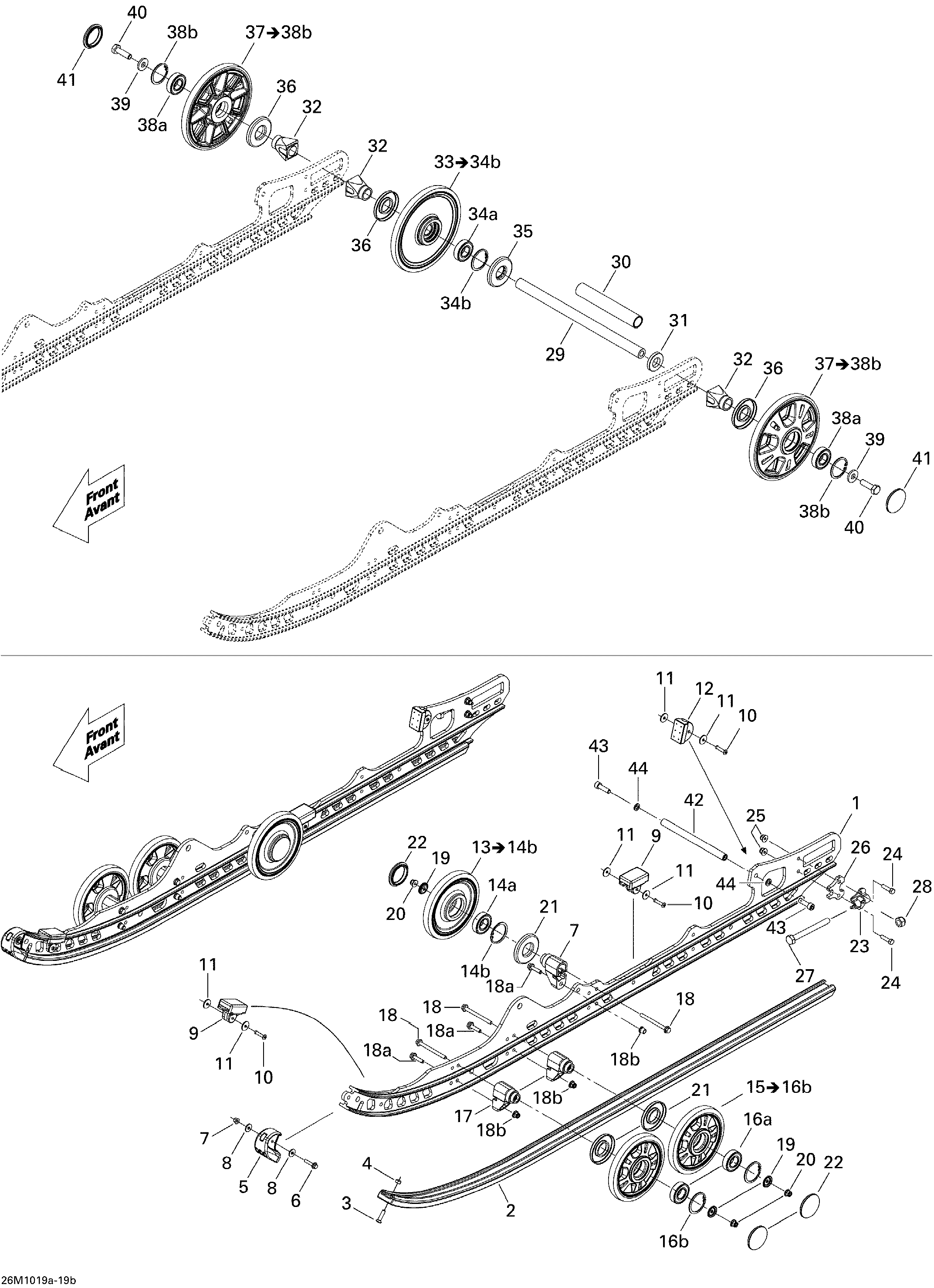

08- Rear Suspension 2, SE для BRP Ski-Doo Grand-Touring SE 1200 - 2010
-
№АртикулНазвание
-
1503192319 Runner 137''Runner 137''
-
2503191306 Black - Slider Shoe 137''Black - Slider Shoe 137''
-
3208562531 Phillips Screw M6 X 25Phillips Screw M6 X 25
-
4232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
5503191137 Runner ProtectorRunner Protector
-
6207652544 Hex. Flanged Screw M5 X 25Hex. Flanged Screw M5 X 25
-
7233251414 Hex. Flanged Elastic Nut M5Hex. Flanged Elastic Nut M5
-
8391301600 WasherWasher
-
9503190576 Rubber StopperRubber Stopper
-
10293150142 Pop Rivet 3/16''Pop Rivet 3/16''
-
11503191273 WasherWasher
-
12503191291 Rubber StopperRubber Stopper
-
13503191151 Wheel 141 mm Ass'y, Black. Includes 13 to 14bWheel 141 mm Ass'y, Black. Includes 13 to 14b
-
13503191152 Wheel Ass'y, 147 mm. Includes 13 to 14b, EuropeWheel Ass'y, 147 mm. Includes 13 to 14b, Europe
-
14a503190396 Ball BearingBall Bearing
-
14b415129371 Retaining RingRetaining Ring
-
15503191622 Wheel 141 mm Ass'y, Full Moon. Includes 15 to 16bWheel 141 mm Ass'y, Full Moon. Includes 15 to 16b
-
15503191624 Wheel Ass'y, 147 mm, Full Moon. Includes 15 to 16b, EuropeWheel Ass'y, 147 mm, Full Moon. Includes 15 to 16b, Europe
-
16a503190396 Ball BearingBall Bearing
-
16b415129371 Retaining RingRetaining Ring
-
17503191833 SupportSupport
-
18207667086 Hex. Flanged Screw M6 x 70Hex. Flanged Screw M6 x 70
-
18a207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
18b233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
19503191820 Wheel Cup M6Wheel Cup M6
-
20233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
21503190434 Labyrinth SealLabyrinth Seal
-
22570063600 Wheel CapWheel Cap
-
23503190380 TensionerTensioner
-
24207063044 Hex. Screw M6 X 30Hex. Screw M6 X 30
-
25233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
26503190379 Tensioner SpacerTensioner Spacer
-
27230100044 Hex. Screw M10 X 100Hex. Screw M10 X 100
-
28233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
29503190429 Rear AxleRear Axle
-
30503190430 SpacerSpacer
-
31503190432 WasherWasher
-
32503190428 Rear Wheel SpacerRear Wheel Spacer
-
33503191559 Wheel, 180 mm, Black. Includes 33 to 34bWheel, 180 mm, Black. Includes 33 to 34b
-
34a503190396 Ball BearingBall Bearing
-
34b415129371 Retaining RingRetaining Ring
-
35503190682 Labyrinth SealLabyrinth Seal
-
36503190434 Labyrinth SealLabyrinth Seal
-
37503191627 Wheel, 180 mm, Full Moon. Includes 37 to 38bWheel, 180 mm, Full Moon. Includes 37 to 38b
-
38a503190396 Ball BearingBall Bearing
-
38b415129371 Retaining RingRetaining Ring
-
39503190439 WasherWasher
-
40250000019 Hex. Screw With NylonHex. Screw With Nylon
-
41570063600 Wheel CapWheel Cap
-
42503191260 Axle StrapAxle Strap
-
43205503544 Socket Head Screw M10 X 35, Scotch GripSocket Head Screw M10 X 35, Scotch Grip
-
44503189564 WasherWasher
